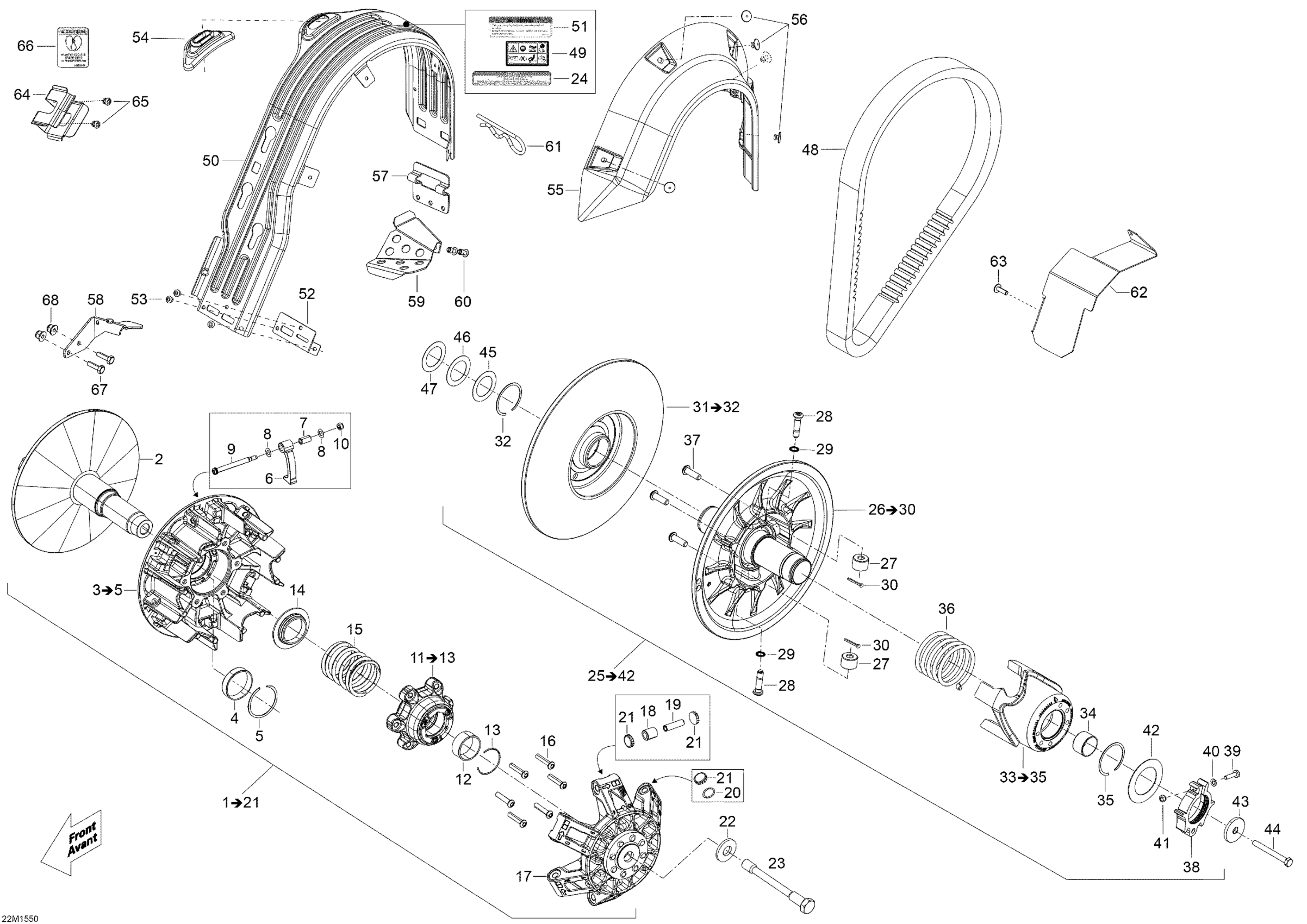

Ski-Doo Skandic WT 600 ACE, 2015 Pulley System _22M1550 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417224091

$170.12

3

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$188.03

4

Bushing

417222758

$20.12

5

Circlip

293370037

$2.93

6

Ramp 716 Ass'y

417223508

$35.04

7

Not Available As Spare Parts

XXX

Unavailable

8

Thrust Washer

417223255

$1.91

9

Ramp Axle

417223694

$4.46

10

Elastic Stop Nut M5

232551414

$0.82

11

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.49

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Circlip

293370065

$0.93

14

Seat Spring

417223752

$13.03

15

Clutch Spring

417223747

$14.90

16

Torx Screw M6 X 30

250000580

$4.87

17

Governor Cup Ass'y

417223865

$170.12

18

Roller

417223767

$7.15

19

Roller Axle

417223257

$6.37

20

O-Ring

293300185

$0.93

21

Slider Shoe

417223919

$3.57

22

Conical Spring Washer M14

250200144

$4.16

23

Pulley Drive Bolt

417300432

$41.76

24

Decal English

516005503

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Fixed Flange Ass'y

417127433

$563.40

27

Roller

417127189

$43.25

28

Pivot Stud

417127294

$13.18

29

Lock Washer 8 mm

250200009

$2.00

30

Spring Pin M3 X 30

250400063

$2.00

31

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$143.25

32

Circlip

293370049

$4.57

33

Cam Ass'y

417127413

$160.42

34

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

35

Circlip

293370049

$4.57

36

SPRING RELEASE - Call your local BRP dealership

417127434

Unavailable

37

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

38

Calibration Ass'y

415129604

$22.49

39

Socket Screw M5 X 25

205052544

$1.54

40

Flat Washer M5

234051410

$0.51

41

Elastic Stop Nut M5

232551414

$0.82

42

Washer

417127155

$7.79

43

Strength Washer

517302322

$10.76

44

Hex. Cap Screw M8 X 75

207287544

$4.87

45

Spacer

417300252

$5.01

46

Spacer

417300265

$2.06

47

Shim

504112000

$5.87

48

Drive Belt

417300585

$138.03

49

Warning Decal | Europe

516003919

$7.42

50

Belt Guard

417300382

$82.81

51

Security Label, Belt Guard

516006900

Unavailable

52

Reinforcement

417300380

$5.01

53

Avex Rivet

390909200

$0.28

54

Guide

417300381

$8.73

55

Side Protector

417300356

$12.85

56

Pop Rivet 3/16"

293150103

$0.52

57

Belt Guard Bracket | Except Package SWT

417300363

$11.84

58

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

59

Brake Hose Cover | Except Package SWT

518325626

$27.58

60

Rivet Hucklok

293150163

$2.73

61

Hair Pin

114045200

$10.37

62

Air Duct | North America

417300468

$45.49

63

Torx Screw M6 X 20

250000722

$1.54

64

Bracket

517281905

$14.90

65

Avex Rivet

390909100

$0.28

66

Belt Decal, English

516005511

Unavailable

67

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
