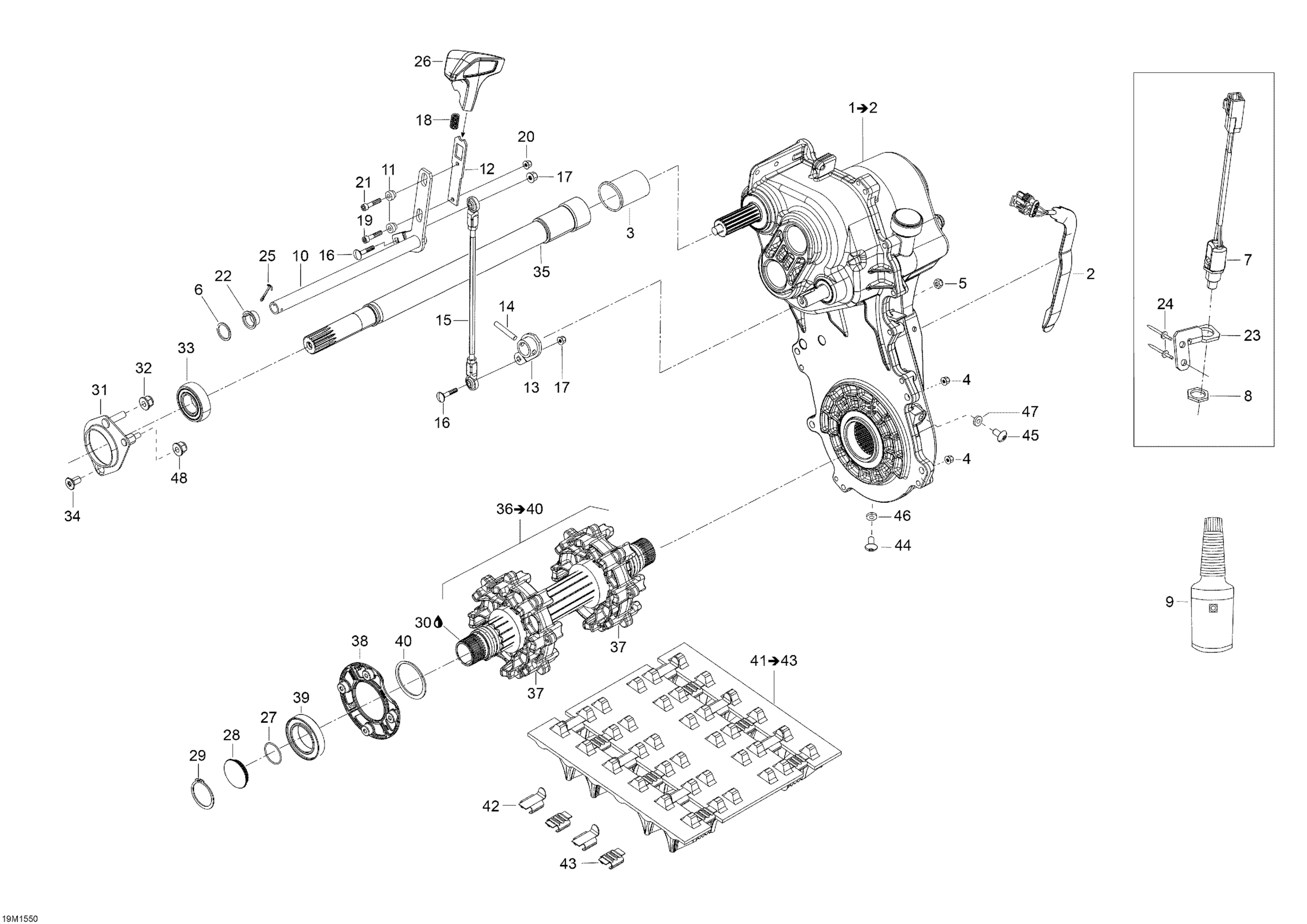

Ski-Doo Skandic WT 600 ACE, 2015 Drive System _19M1550 Diagram

#

Description
Price

1

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2,089.99

2

Rotation Sensor

504152896

$34.30

3

Protective Rubber

504153054

$15.64

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Hex. Elastic Stop Nut M8

232581414

$0.54

6

Washer

503189273

$3.10

7

Switch Ass'y

515176472

$69.37

8

Brass Nut

250000373

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Lever Shifter

504153288

$140.27

11

Sleeve

504152787

$26.09

12

Shifter Arm

504153287

$50.72

13

Welded Lever | Gear Box 1.98

504153280

$80.57

14

Pin

41012

$5.06

15

Shifter Rod

504153258

$45.49

16

Carriage Bolt M6 X 20

250000677

$2.00

17

Elastic Stop Nut M6

232561434

$1.78

18

Spring

504152882

$5.72

19

Socket Screw M5 X 25

205052544

$1.54

20

Flange Elastic Nut M5

233251434

$1.91

21

Forming Screw M5 x 16

250000676

$0.96

22

Bushing

504152890

$42.49

23

Sensor Bracket

504152902

$14.90

24

Rivet Hucklok

293150163

$2.73

25

Cotter Pin

250400035

$2.00

26

Handle

504152837

$73.85

27

O-Ring

293300122

$2.00

28

Magnetic Cap

504152619

$22.36

29

Circlip

504152572

$6.07

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Bearing Housing

504153187

$27.58

32

Hex. Flange Elastic Nut M8

233281414

$1.31

33

Ball Bearing

293350074

$38.49

34

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

35

Counter Shaft | Gear Box 2.30

504152963

$229.82

36

Drive Axle Ass'y | With Gear Box 2.30

504153583

$548.48

37

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Retaining Ring

504153886

$17.88

39

Ball Bearing

293350059

$29.82

40

Shim

504153207

$9.33

41

Track | Includes 3200 to 3200b

605613004

$1,279.99

42

Track Guide | Track Width 16''

415129528

$3.03

43

Cleat

504152651

$7.97

44

Allen Screw M8 x 10

619230037

$5.72

45

Allen Screw M10 x 16

619230038

$3.81

46

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

47

Seal Ring

619230047

$3.81

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
