Description

Price

1

Exhaust Manifold

514054673

$73.99

2

Gasket

514055112

$6.79

3

Socket Head Screw M8 X 22

250000414

$2.11

4

Washer

250200111

$2.11

5

Welded Tube

514054733

$97.49

6

Welded Tube

514054734

$97.49

7

Exhaust Gasket

514054807

$17.39

8

Muffler Ass'y | Includes 400 to 400h

514055370

$974.99

9

RH Heat Shield

514055325

$53.99

10

LH Heat Shield

514054645

$53.99

11

RH Insulating Wool

514054769

$14.99

12

LH Insulating Wool

514054770

$15.99

13

Pop Rivet 3/16”

390910000

$0.57

14

Spring Bracket

514054522

$8.45

15

Avex Rivet

390909200

$0.30

16

Lower Stopper

514054529

$18.49

17

Rubber Bumper

570044700

$13.10

18

Upper Stopper

514054737

$14.16

19

Spring

415107100

$6.35

20

Spring Bracket

514055317

$10.17

21

Avex Rivet

390909100

$0.30

22

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

23

Avex Rivet

390909200

$0.30

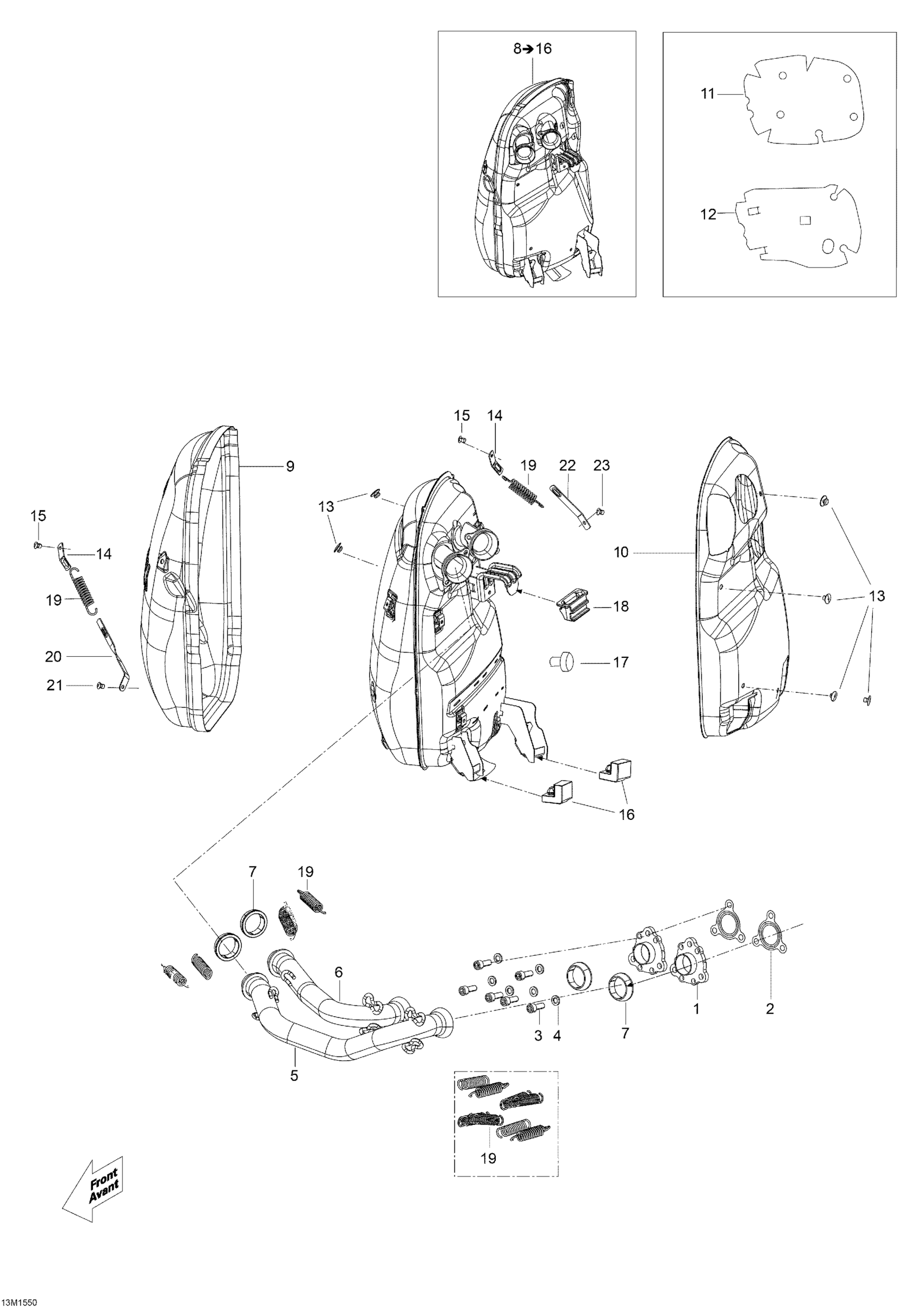

Ski-Doo Skandic WT 600 ACE, 2015 01- Exhaust System _13M1550 Diagram

Exhaust Manifold

Gasket

Socket Head Screw M8 X 22

Washer

Welded Tube

Welded Tube

Exhaust Gasket

Muffler Ass'y | Includes 400 to 400h

RH Heat Shield

LH Heat Shield

RH Insulating Wool

LH Insulating Wool

Pop Rivet 3/16”

Spring Bracket

Avex Rivet

Lower Stopper

Rubber Bumper

Upper Stopper

Spring

Spring Bracket

Avex Rivet

SPRING BRACKET - Call your local BRP dealership

Avex Rivet
