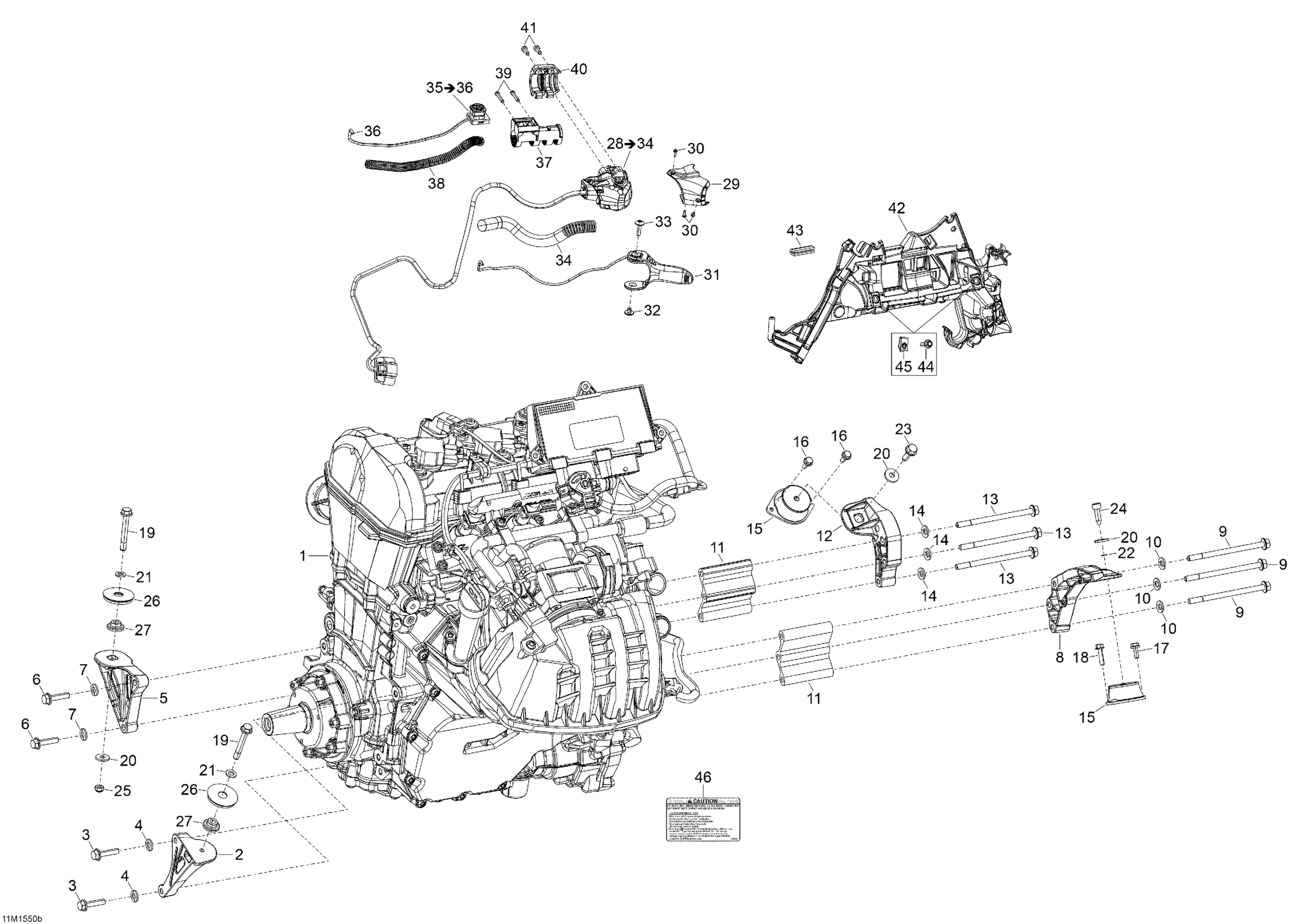

Ski-Doo Skandic WT 600 ACE, 2015 Engine (iTC) _11M1550b Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rear Support PTO

512061139

$23.82

3

Hex. Flange Screw M8 X 35

250000986

$1.74

4

Conical Spring Washer M8

234281474

$1.25

5

Front Support PTO

512061140

$17.66

6

Hex. Flange Screw M8 X 35

250000986

$1.74

7

Conical Spring Washer M8

250200157

$2.06

8

Rear Support MAG

512061142

$27.66

9

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

10

Conical Spring Washer M8

234281474

$1.25

11

Shim

512060505

$42.28

12

Front Support, MAG

512060663

$18.43

13

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

14

Conical Spring Washer M8

250200157

$2.06

15

Rubber Mount

512060729

$69.97

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

18

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

19

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

20

Yellow, Washer

503183200

$3.00

21

Flat Washer With Teflon 8 mm

250200008

$3.12

22

O-Ring

293300123

$1.00

23

Cone Screw, M8 X 30

250000257

$1.72

24

Torx Screw M5 X 14

250000632

$6.18

25

Hex. Elastic Stop Nut M8

232581414

$0.47

26

Stopper

512061203

$12.52

27

Spacer

512060285

$17.66

28

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$278.43

29

Cap

512060862

$11.57

30

Torx Screw M2.9 x 9.5

250000623

$3.11

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Torx Screw M5 X 20

250000528

$1.74

34

Protector Tube

515177716

$4.42

35

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

36

Male Terminal

515175232

$1.49

37

Switch Support

512061453

$8.38

38

Protector Tube

515177716

$4.42

39

Torx Screw #8-18

250000263

$1.02

40

Front Housing

512060987

$8.34

41

Torx Screw M5 X 14

250000632

$6.18

42

Module Support

512060994

$14.54

43

Protection Trim | LTD

271000110

Unavailable

44

Panel Nut M5 X 0.8

250000958

$3.48

45

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

46

Caution Decal, Oil Level

516005521

Unavailable
