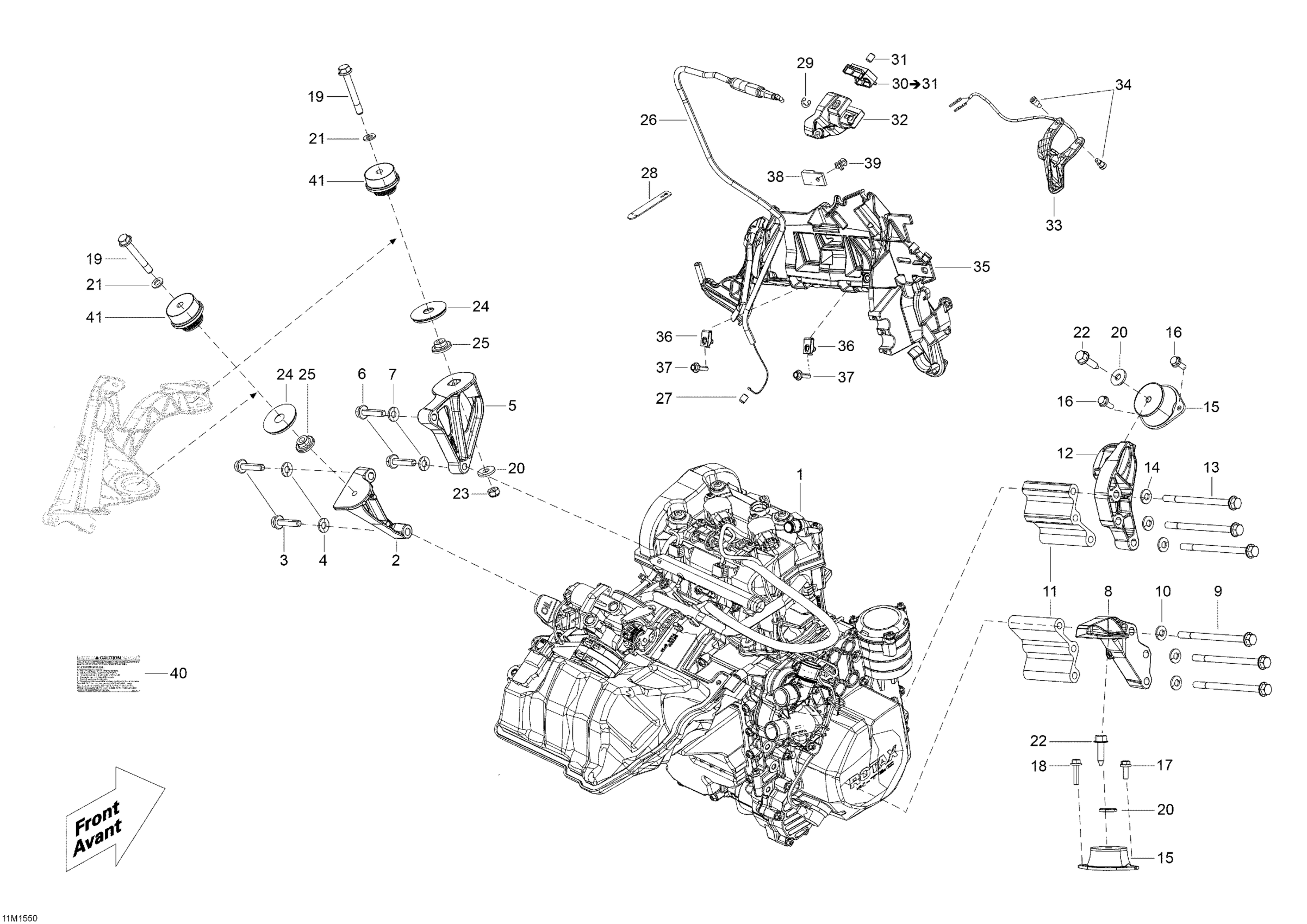

Ski-Doo Skandic WT 600 ACE, 2015 Engine _11M1550 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rear Support PTO

512061139

$23.82

3

Hex. Flange Screw M8 X 35

250000986

$1.74

4

Conical Spring Washer M8

234281474

$1.25

5

Front Support PTO

512061140

$17.66

6

Hex. Flange Screw M8 X 35

250000986

$1.74

7

Conical Spring Washer M8

234281474

$1.25

8

Rear Support MAG

512061142

$27.66

9

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

10

Conical Spring Washer M8

234281474

$1.25

11

Shim

512060505

$42.28

12

Front Support, MAG

512060663

$18.43

13

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

14

Conical Spring Washer M8

234281474

$1.25

15

Rubber Mount

512060729

$69.97

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

18

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

19

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

20

Yellow, Washer

503183200

$3.00

21

Flat Washer With Teflon 8 mm

250200008

$3.12

22

Cone Screw, M8 X 30

250000257

$1.72

23

Hex. Elastic Stop Nut M8

232581414

$0.47

24

Stopper

512061203

$12.52

25

Spacer

512060285

$17.66

26

Throttle Cable

512060607

$77.66

27

Cable Guide

707000434

$10.52

28

Rubber Strap

293850117

$7.35

29

Circlip

414274500

$0.74

30

Upper Housing

512060859

$8.38

31

Socket Set Screw M8 X 10

414440800

$4.00

32

Lower Housing

512060860

$16.89

33

Handle Ass'y

512061250

$117.66

34

Flange Screw

732601143

$4.02

35

MODULE SUPPORT - Call your local BRP dealership

512060509

Unavailable

36

Panel Nut M5 X 0.8

250000958

$3.48

37

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

38

Clip

270000141

$8.33

39

Avdel Rivet

293150027

$2.37

40

Caution Decal, Oil Level

516005521

Unavailable

41

Vibration Damper

512061516

$57.66
