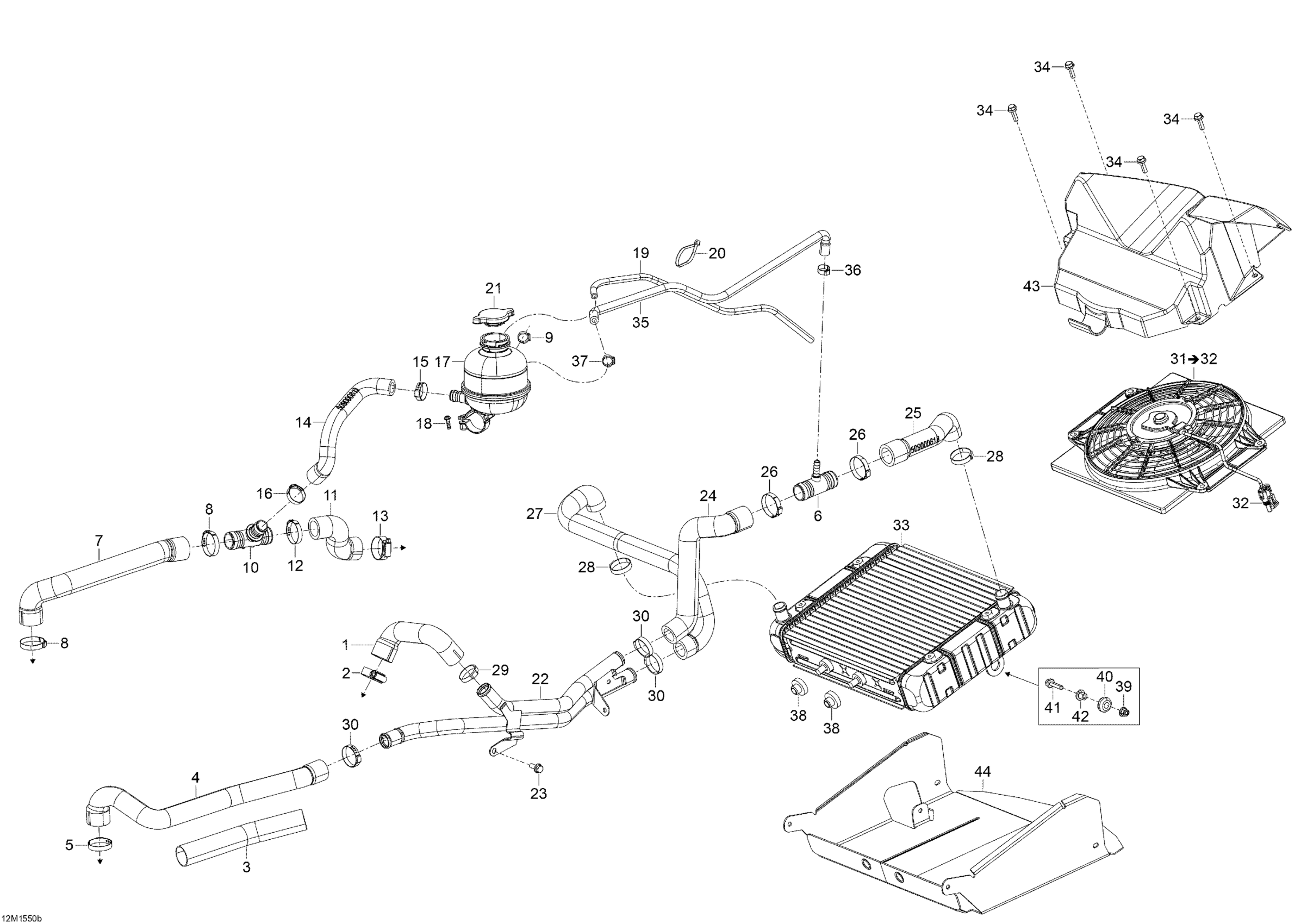

Ski-Doo Skandic WT 600 ACE, 2015 01- Cooling System (iTC) _12M1550b Diagram

#

Description
Price

1

Engine Outlet Hose

509000932

$20.99

2

Aba Gear Clamp, 26-38 MM

509000443

$12.72

3

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

4

Hose

509000634

$23.49

5

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

6

T-Fitting

509000510

$13.16

7

Radiator Return Hose

509001062

$16.33

8

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

9

Oetiker Gear Clamp

293650025

$3.09

10

T-Fitting

509000372

$10.33

11

Engine Inlet Hose | Engine 600 ACE

509000565

$15.28

12

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

13

Aba Gear Clamp, 26-38 MM

509000443

$12.72

14

Filling Hose

509001063

$15.28

15

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

16

Crimp Clamp

293650099

$4.29

17

Cooling Tank

509000875

$92.99

18

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

19

Hose

509000775

$11.49

20

Tie-Rap 180 mm

414115200

$0.11

21

Radiator Pressure Cap

509000180

$20.49

22

Water Pipe

509000800

$110.99

23

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

24

Radiator Hose

509000617

$15.99

25

Radiator Hose

509000618

$15.99

26

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

27

Radiator Hose

509000560

$19.99

28

Oetiker Gear Clamp

293650165

$5.39

29

Oetiker Clamp

293650141

$4.29

30

Clamp

509000735

$7.49

31

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$239.99

32

Male Connector, 2 Circuits

278000220

$15.49

32

Female Terminal

409007300

$0.45

33

RADIATOR - Call your local BRP dealership

509000691

Unavailable

34

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

35

Breather Hose

509000860

$24.49

36

Crimp Clamp, 15.3-706R

293650047

$3.29

37

Oetiker Gear Clamp

293650025

$3.09

38

Grommet

709200285

$9.69

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Grommet

709000582

$4.69

41

Hex. Flange Screw M6 X 25

207662544

$0.64

42

Bushing

293900100

$7.65

43

Outlet Duct Ass'y

509000866

$45.99

44

RADIATOR SUPPORT - Call your local BRP dealership

509000865

Unavailable
