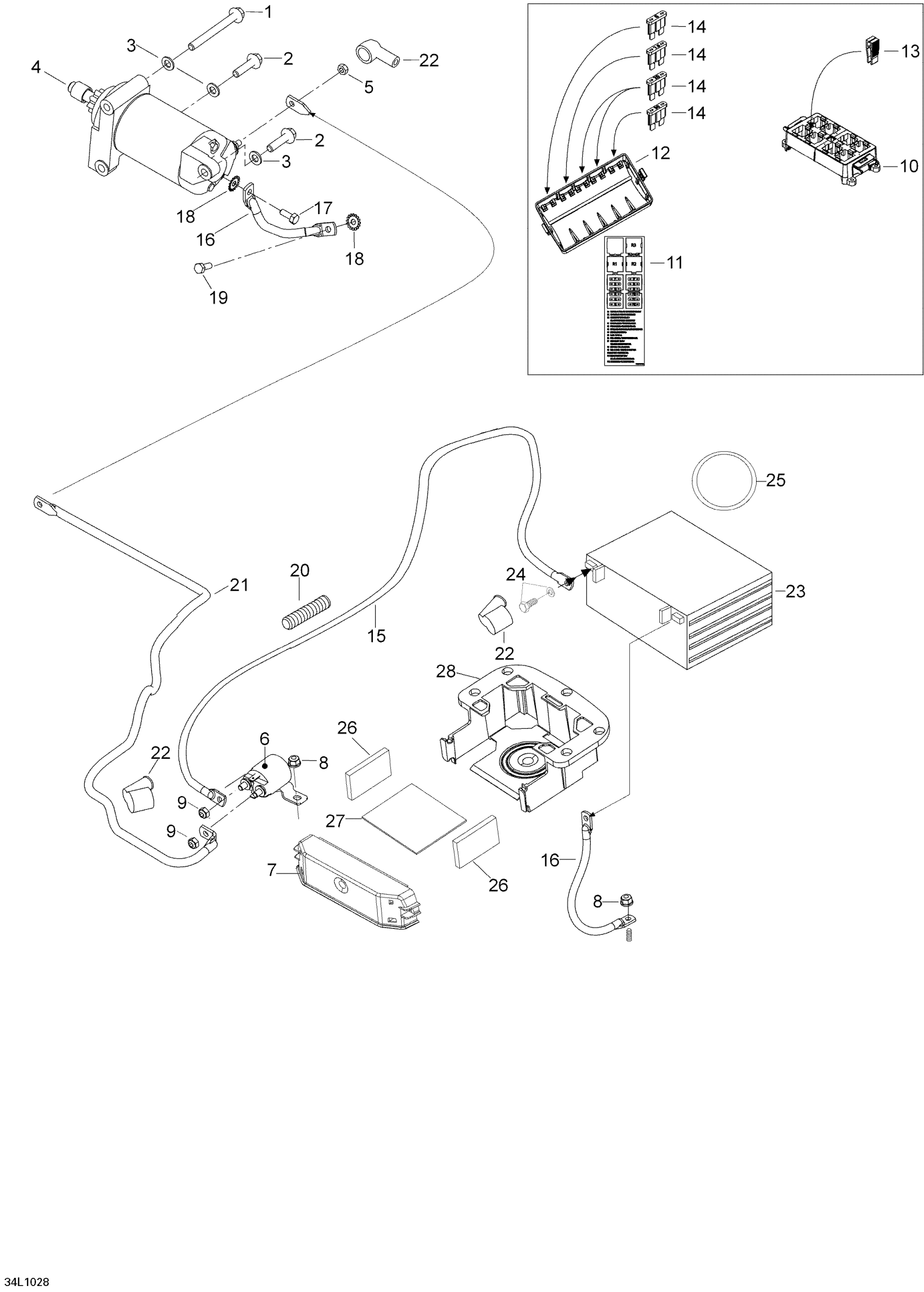

Ski-Doo Skandic WT 600, 2010 10- Battery And Starter Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$8.29

2

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

3

Flat Washer With Teflon 8 mm

250200008

$3.80

4

Electric Starter Ass'y

515176133

$319.49

5

Elastic Stop Nut M6

232561414

$0.55

6

Starter Relay

515176011

$62.49

7

BATTERY COVER - Call your local BRP dealership

605255586

Unavailable

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Elastic Stop Nut M6

232561414

$0.55

10

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable

11

FUSE DECAL - Call your local BRP dealership

605453790

Unavailable

12

COVER - Call your local BRP dealership

515176066

Unavailable

13

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

14

Fuse, 5 Amperes | CE

278000344

$3.28

14

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

14

Fuse, 20 Amperes

409003900

$3.28

14

Fuse, 30 Amperes

410917200

$3.28

14

Fuse 1 A

M42044

Unavailable

15

Battery Wire

M5348359

Unavailable

16

GROUND WIRE - Call your local BRP dealership

605355795

Unavailable

17

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

18

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

19

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

20

HOUSING - Call your local BRP dealership

M28015

Unavailable

21

BATTERY WIRE - Call your local BRP dealership

M5348358

Unavailable

22

Protection Cap

570151000

$21.99

23

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

24

Battery Bolt Kit

250000282

$7.29

25

O'RING 130 X6,0 - Call your local BRP dealership

605676001

Unavailable

26

FOAM - Call your local BRP dealership

605355847

Unavailable

27

FOAM - Call your local BRP dealership

605355846

Unavailable

28

Battery Holder - Call your local BRP dealership

605255588

Unavailable
