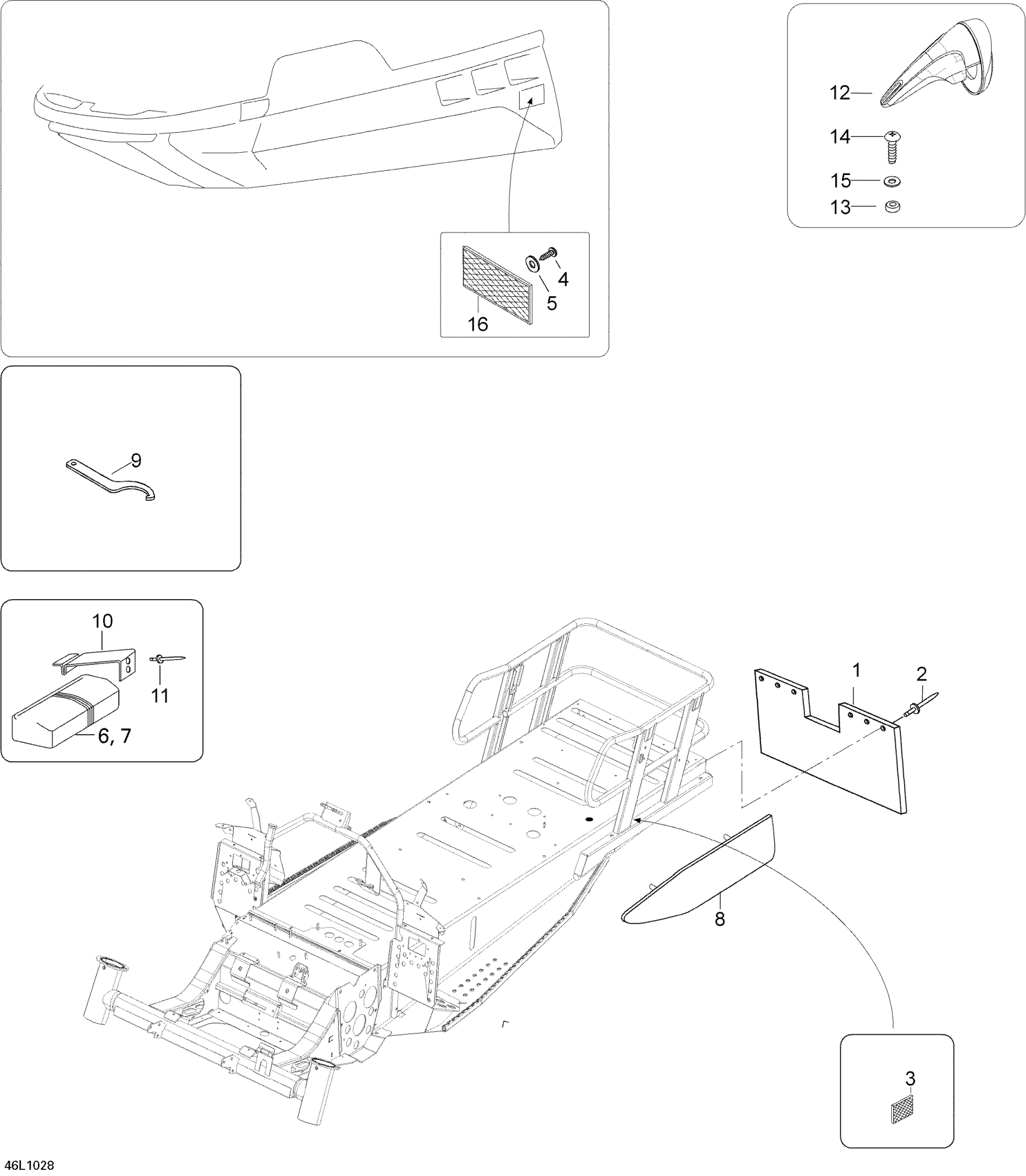

Ski-Doo Skandic WT 600, 2010 Utilities Diagram

#

Description
Price

1

Snow guard This part replaces M538629.

538629

$95.99

2

Black, Rivet

M36036

$1.69

3

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

4

Screw

M40070

Unavailable

5

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

6

TOOL KIT - Call your local BRP dealership

605350525

Unavailable

7

TOOL BOX - Call your local BRP dealership

A50121179000

Unavailable

8

LH SIDE SNOW GUARD - Call your local BRP dealership

605354746

Unavailable

8

RH SIDE SNOW GUARD - Call your local BRP dealership

605354747

Unavailable

9

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

10

SPRING PLATE - Call your local BRP dealership

M5346728

Unavailable

11

Rivet

36108

$1.90

12

Mirror Kit

517303955

$53.49

13

Rubber Washer 5 mm

250200024

$2.19

14

Torx Screw K50 X 16

250000720

$1.69

15

Washer M5

250200025

$0.74

16

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable
