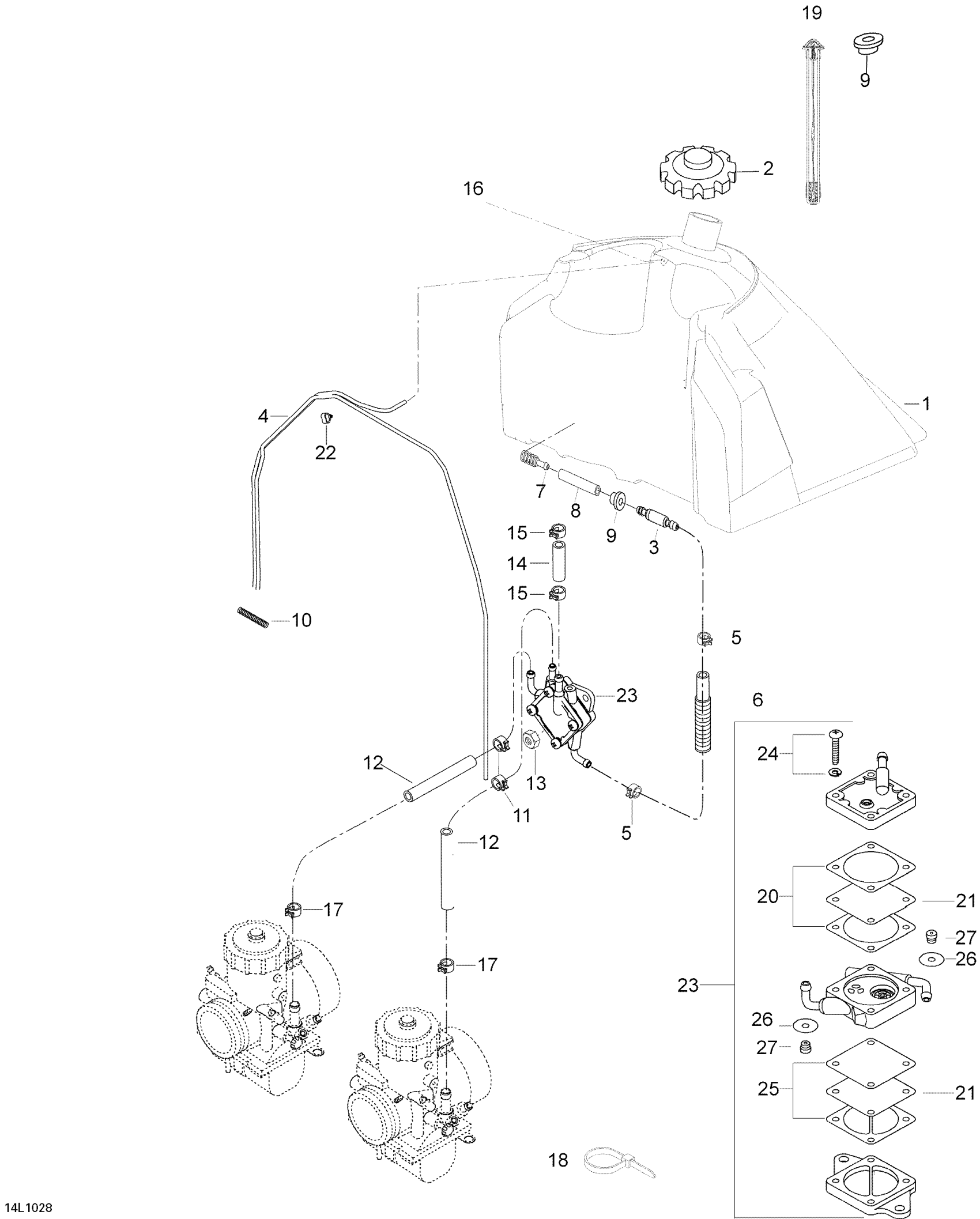

Ski-Doo Skandic WT 600, 2010 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

605154804

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

Male Connector

414872700

$1.90

4

HOSE - Call your local BRP dealership

M39035

Unavailable

5

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

6

Was M27127 Tubing

219704355

$23.49

7

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

8

Polyurethane Hose 1000Mm Long

219704391

$5.47

9

Grommet | Europe

707800347

$10.49

10

SPRING - Call your local BRP dealership

M25003

Unavailable

11

Universal Spring Clamp

513033029

$5.39

12

HOSE - Call your local BRP dealership

513033035

Unavailable

13

Elastic Stop Nut M6

232561414

$0.55

14

Hose 1/4, 350 mm

605355647

Unavailable

15

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

16

NIPPLE - Call your local BRP dealership

404127600

Unavailable

17

Spring Clamp

414415200

$0.88

18

Tie-Rap 180 mm

414115200

$0.11

19

FUEL GAUGE - Call your local BRP dealership

605351982

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Grommet | Europe

707800347

$10.49

23

Fuel Pump

M19113

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable
