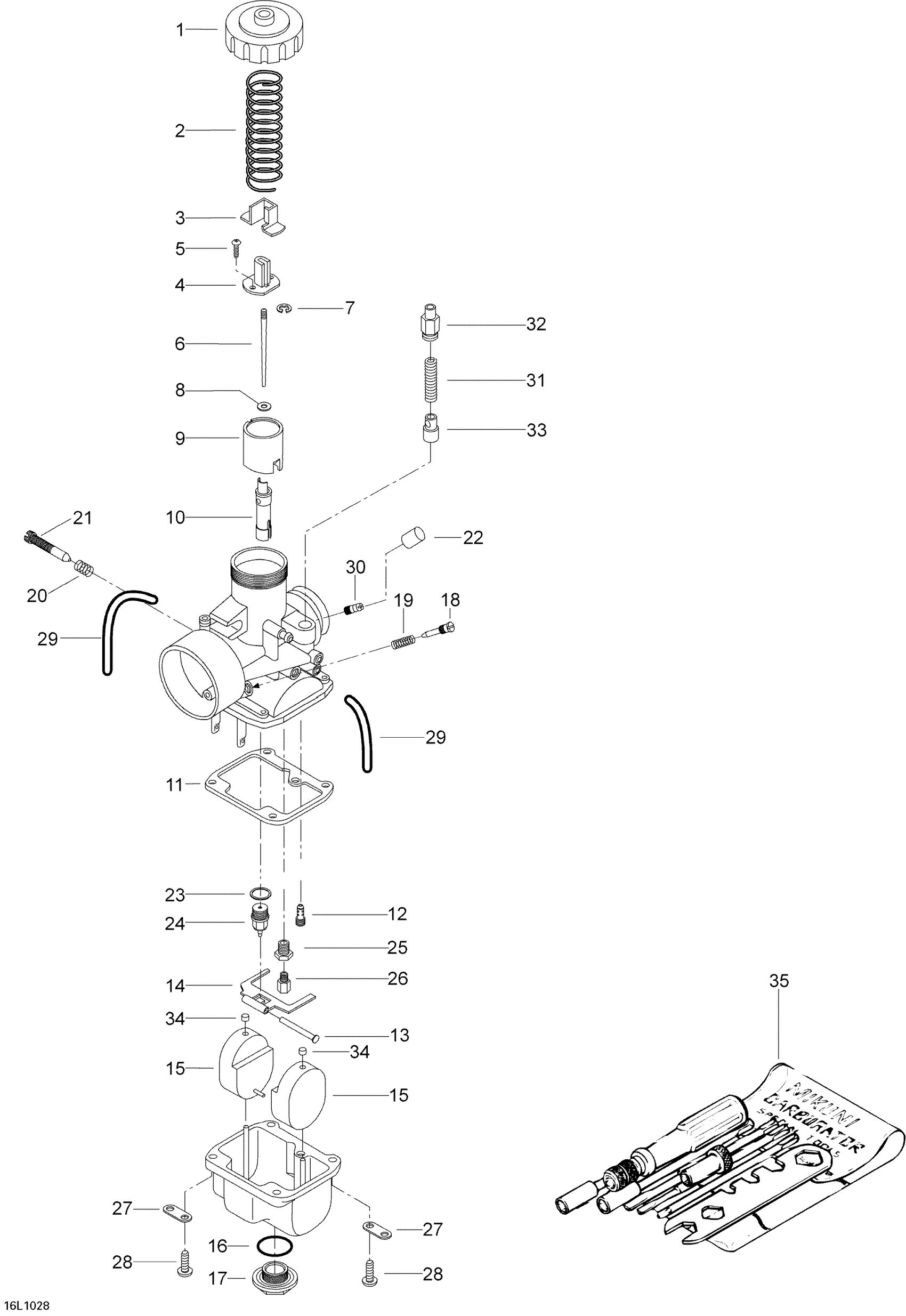

Ski-Doo Skandic WT 600, 2010 02- Carburetor Diagram
#
Description
Price
-
Carburetor Vm-38
M19169
Unavailable
1
COVER - Call your local BRP dealership
404105100
Unavailable
4
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
6
NEEDLE JET J8-6DGL24 - Call your local BRP dealership
404162064
Unavailable
10
NEEDLE JET NJ 480 P-9 - Call your local BRP dealership
404161805
Unavailable
11
GASKET - Call your local BRP dealership
404104700
Unavailable
12
PILOT JET PJ40 - Call your local BRP dealership
404109100
Unavailable
14
FLOAT LEVER - Call your local BRP dealership
404105000
Unavailable
15
FLOAT - Call your local BRP dealership
404105400
Unavailable
16
O-RING - Call your local BRP dealership
404101500
Unavailable
17
DRAIN PLUG SCREW - Call your local BRP dealership
404105600
Unavailable
18
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
19
SPRING - Call your local BRP dealership
404139800
Unavailable
21
IDLE SPEED SCREW - Call your local BRP dealership
404102800
Unavailable
27
PLATE - Call your local BRP dealership
404103000
Unavailable
29
AIR VENT TUBE - Call your local BRP dealership
404160100
Unavailable
31
SPRING - Call your local BRP dealership | MAG Side
404127400
Unavailable
32
GUIDE HOLDER - Call your local BRP dealership | MAG Side
404161100
Unavailable
33
PLUNGER ASS'Y - Call your local BRP dealership
404160400
Unavailable
35
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
