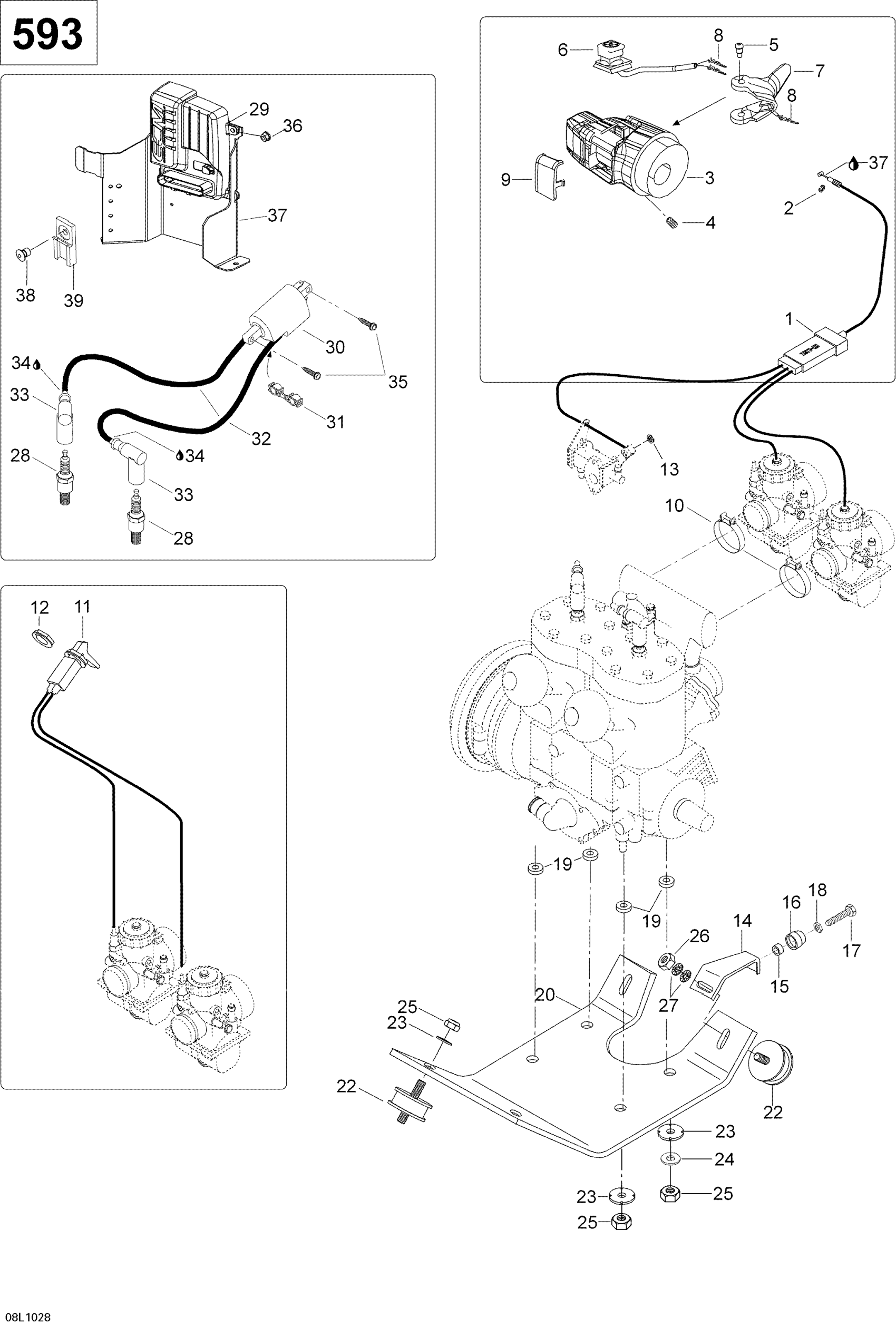

Ski-Doo Skandic WT 600, 2010 01- Engine And Engine Support Diagram

#

Description
Price

1

THROTTLE CABLE - Call your local BRP dealership

M5246328

Unavailable

2

Circlip

M31038

Unavailable

3

THROTTLE HOUSING - Call your local BRP dealership

605355737

Unavailable

4

Socket Set Screw M8 X 10

414440800

$4.12

5

Flange Screw

732601143

$4.12

6

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

7

Handle Ass'y

512059348

$93.99

8

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

9

Switch Cover

572100901

$14.83

10

COLLAR - Call your local BRP dealership

414532700

Unavailable

11

Choke This part replaces M535482.

535482

$73.99

12

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

13

Circlip

414753500

$0.71

14

Support

605352447

Unavailable

15

Rubber Washer

M2846014

Unavailable

16

SLEEVE - Call your local BRP dealership

605449240

Unavailable

17

Hex. Screw M8 X 25

M40121

Unavailable

18

NUT - Call your local BRP dealership

M33003

Unavailable

19

SLEEVE - Call your local BRP dealership

M5446347

Unavailable

20

Engine Support

605248305

Unavailable

22

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

23

Lock Washer

512056700

$3.17

24

Lock Washer

512056700

$3.17

25

Elastic Locking Nut M10 X 1.5

233601416

$1.69

26

Hex. Nut M10 X 1.5

232006414

$1.37

27

Lock Washer D10

20068

$2.00

28

Spark Plug NGK BR9ECS-5

512059552

$10.59

29

Calibration Module

605155103

Unavailable

30

Ignition Coil

512059968

$51.99

31

Plastic Clip, Spark Plug Wire

410914600

$5.61

32

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

$57.99

32

Cable Ass’y, 375 mm

512059696

$80.99

33

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

34

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

SUPPORT PLATE, ECU - Call your local BRP dealership

605353805

Unavailable

38

Rivet

36005

$2.11

39

Clip

270000141

$11.49
