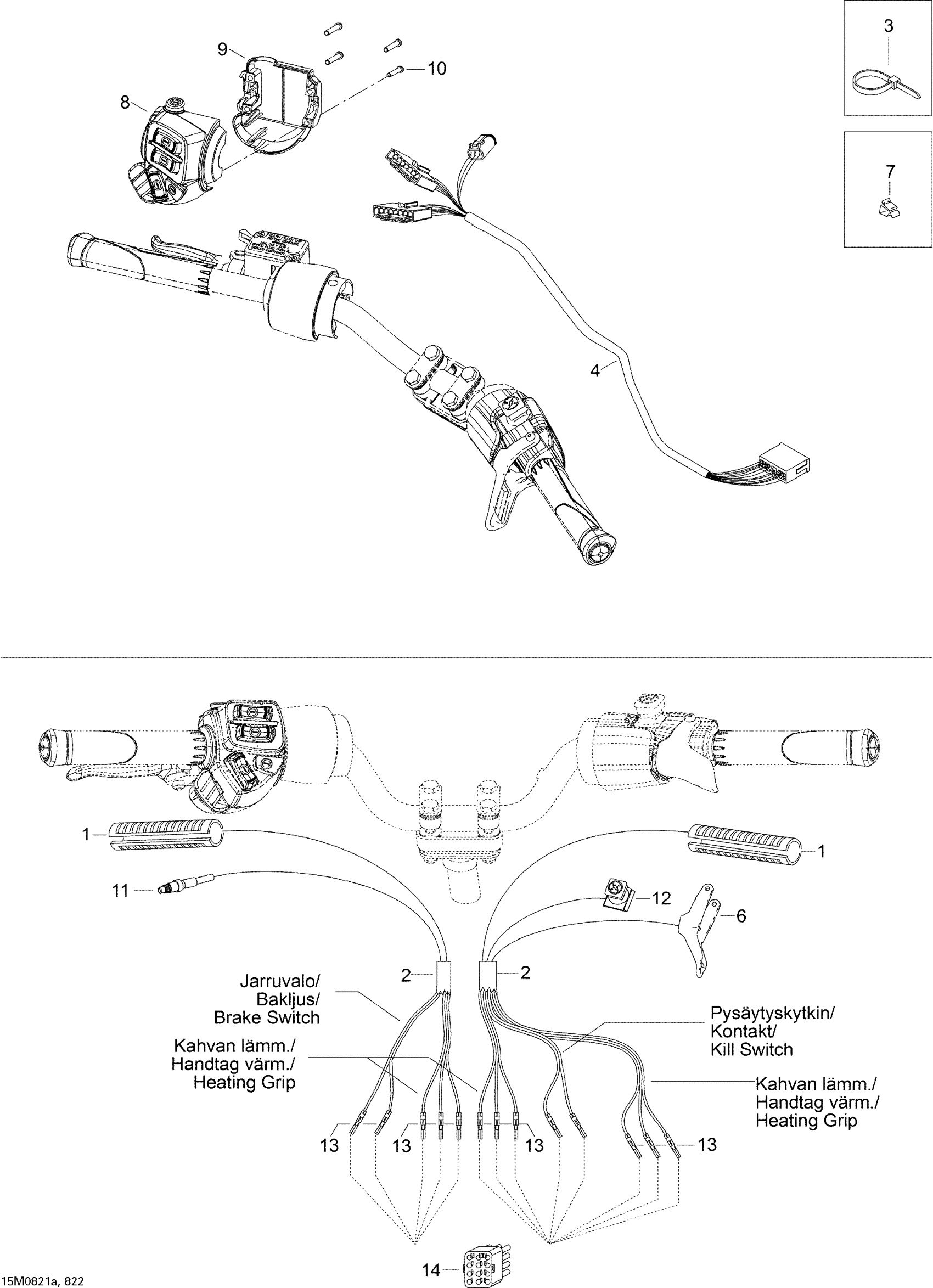

Ski-Doo Skandic WT 600, 2008 Steering Wiring Harness WT 600 Diagram

#

Description

Price

1

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Tie Rap 290 Mm

M27100

$0.97

4

STEERING HARNESS - Call your local BRP dealership

605353266

Unavailable

5

MAIN HARNESS - Call your local BRP dealership

605354749

Unavailable

6

Throttle Handle

512059481

$70.12

7

Handle Ass'y

512059348

$85.79

8

LH Switch Housing

515176062

$189.52

9

Switch Housing Plate

515175926

$17.13

10

Screw 3.5X25

M40903

Unavailable

11

Microswitch

507032366

$101.46

12

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

13

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

14

Male Connector Housing

M42617

Unavailable
