Description

Price

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

2

Ball Bearing

420832596

$97.49

3

Ball Bearing 6206

420832590

$48.49

4

Oil Seal

420931795

$17.63

5

Lock Washer, 22 mm

420945759

$1.90

6

Hex. Nut, M22 X 1.5

420842239

$17.53

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Ball Bearing 6207 | With drive pin

420832575

$52.99

10

Oil Seal This part replaces 290831952.

420831952

$18.01

11

Woodruff Key

420246015

$3.17

12

Needle Bearing

420832445

$27.49

13

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$169.99

14

Semi-Trapez Ring, Standard

420815155

$51.99

13

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$169.99

14

Semi-Trapez Ring, 1st

420815156

$51.99

15

Piston Pin

420916412

$30.99

16

Piston Circlip

420845106

$3.93

17

Ball Bearing 6206

420832590

$48.49

18

Oil Seal | Included in gasket kit

420931940

$30.49

19

Central Gear, 15 Teeth

420834350

$104.99

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Rod Repair Kit, MAG Side

420890973

$313.99

22

Rod Repair Kit, PTO Side

420890974

$313.99

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$45.99

26

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

27

Petamo Grease, GHY133N, 400 g

420899271

$67.99

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

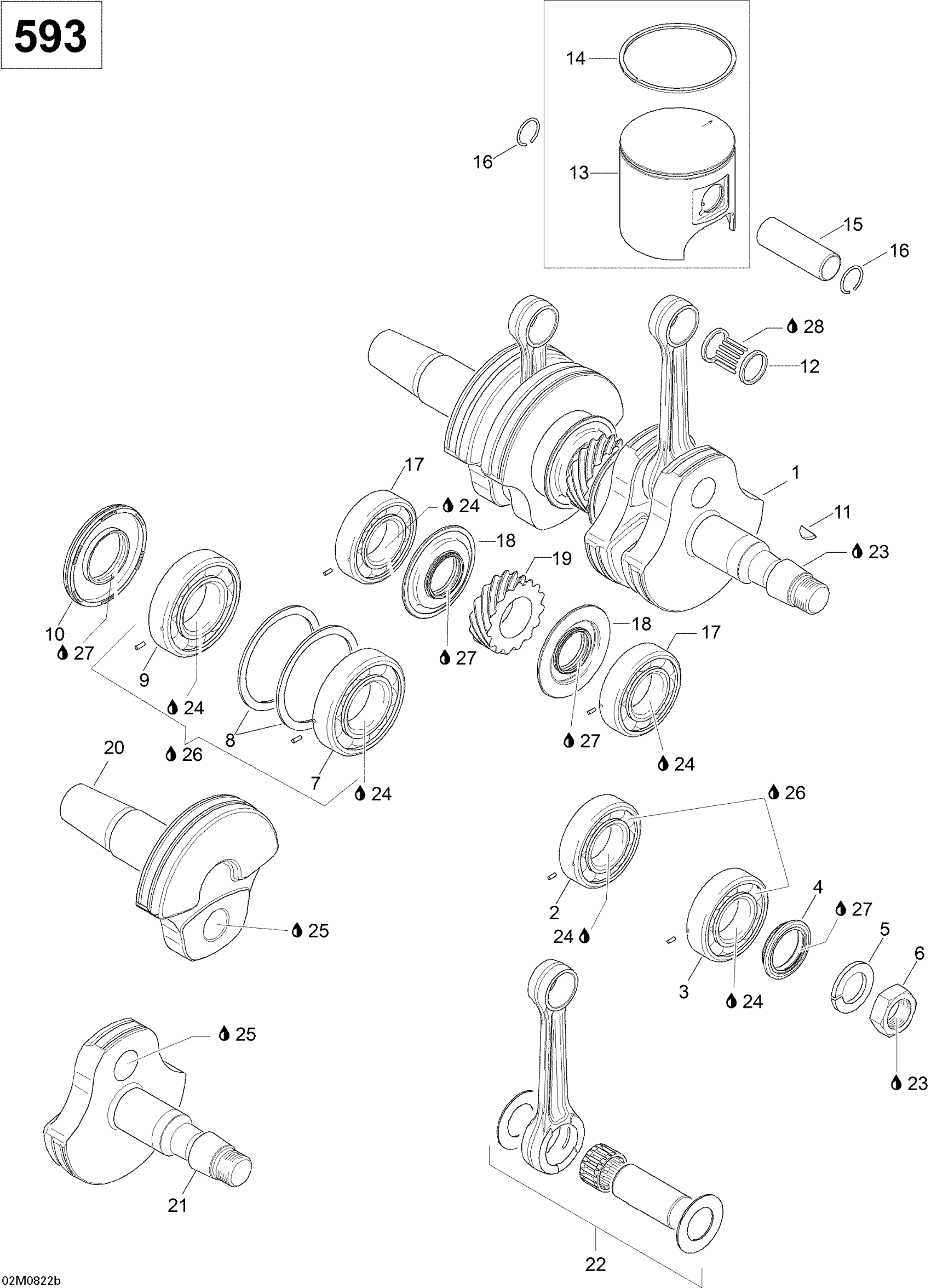

Ski-Doo Skandic WT 600, 2008 01- Crankshaft And Pistons WT 600 Diagram

Crankshaft Ass'y | Includes 1 to 9

Ball Bearing

Ball Bearing 6206

Oil Seal

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

Not Available As Spare Parts

Not Available As Spare Parts

Ball Bearing 6207 | With drive pin

Oil Seal This part replaces 290831952.

Woodruff Key

Needle Bearing

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

Semi-Trapez Ring, Standard

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

Semi-Trapez Ring, 1st

Piston Pin

Piston Circlip

Ball Bearing 6206

Oil Seal | Included in gasket kit

Central Gear, 15 Teeth

Not Available As Spare Parts

Not Available As Spare Parts

Rod Repair Kit, MAG Side

Rod Repair Kit, PTO Side

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Sealant Loctite 648

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

Petamo Grease, GHY133N, 400 g

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
