Description

Price

1

Flange Connector

420810868

$88.99

2

Socket Head Screw M6 x 16

420241237

$2.22

3

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$174.49

3

Starter Housing

420910256

$94.99

4

Rewind Spring

420939115

$30.49

5

ROPE SHEAVE - Call your local BRP dealership | SUV 600

420852286

Unavailable

6

Starter Rope 2200 mm

512500200

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

8

Pawl

420852633

$33.99

9

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

10

Stage Sleeve

420847926

$16.33

11

O-Ring

420250400

$5.39

12

Lock Ring

420852520

$9.27

13

Locking Element

420845560

$2.11

14

Torx Flange Screw M6 X 20

420441386

$2.11

15

Molykote PG 54, 10 g

420899763

$21.99

16

Loctite 243, 10 ml

293800060

$21.49

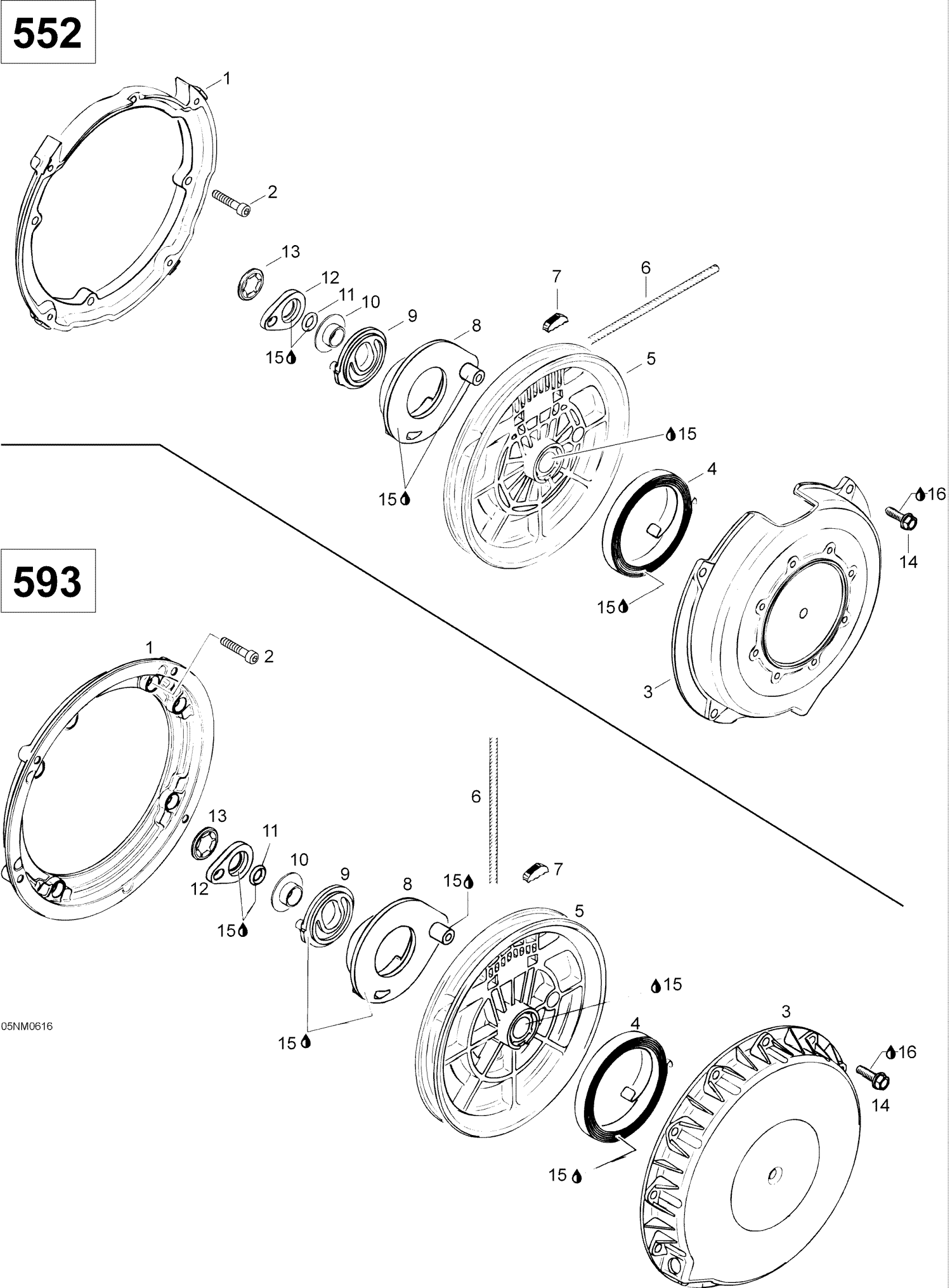

Ski-Doo Skandic WT 600, 2006 04- Rewind Starter 600 Diagram

Flange Connector

Socket Head Screw M6 x 16

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

Starter Housing

Rewind Spring

ROPE SHEAVE - Call your local BRP dealership | SUV 600

Starter Rope 2200 mm

Not Available As Spare Parts

Not Available As Spare Parts

Pawl

PAWL LOCK - Call your local BRP dealership

Stage Sleeve

O-Ring

Lock Ring

Locking Element

Torx Flange Screw M6 X 20

Molykote PG 54, 10 g

Loctite 243, 10 ml
