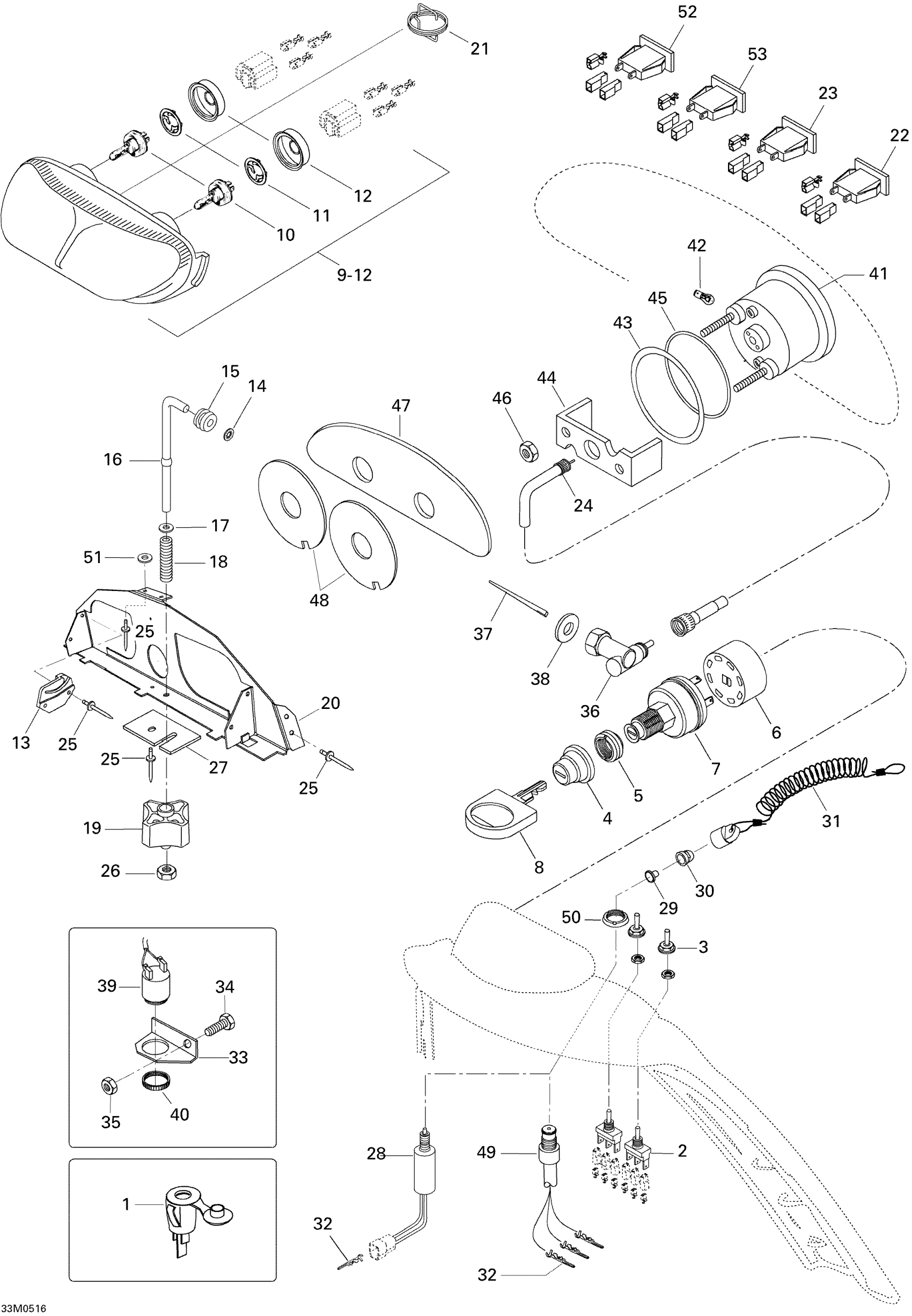

Ski-Doo Skandic WT 600, 2005 10- Electrical System 1 (600 WT) Diagram

#

Description
Price

1

DC Outlet

710001248

$37.99

2

Switch (Heating Grip) | FREERIDE

410107300

$35.99

3

Switch Cover

515175281

$15.99

4

Switch Boot

570013700

$11.49

5

FACE NUT - Call your local BRP dealership

410112100

Unavailable

6

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

7

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

8

Blank Key

415129350

$26.49

9

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

10

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

11

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

12

COVER - Call your local BRP dealership

515175911

Unavailable

13

RH Support

517289300

Unavailable

13

LH Support

517289400

Unavailable

14

Push Nut

732610072

$2.19

15

Grommet - Call your local BRP dealership

415100800

Unavailable

16

ADJUSTER ROD - Call your local BRP dealership

M5448100

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

SPRING - Call your local BRP dealership

415100600

Unavailable

19

Handle - Call your local BRP dealership

515175548

Unavailable

20

Support

M5248092

Unavailable

21

Spring

M5445737

Unavailable

22

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

23

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

24

Speedometer Cable This part replaces M5344162.

5344162

$81.99

25

Rivet

36005

$2.11

26

Elastic Stop Nut M6

232561414

$0.55

27

Washer 6mm

M5448320

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

DESS

515178284

$84.99

32

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

33

Support

M549459

Unavailable

34

Hex. Screw M6 X 16

207161644

$0.74

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

$139.99

37

Tige Vitesse *Branch-Key This part replaces M45009.

45009

$30.49

38

Washer

M5444186

Unavailable

39

Back-Up Alarm

414792102

$149.99

40

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

41

Speedometer, Kmh

515175335

Unavailable

42

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

43

Washer

517258500

Unavailable

44

Case Holder

414806500

Unavailable

45

O-Ring

414807100

Unavailable

46

NUT M5 - Call your local BRP dealership

M33062

Unavailable

47

Foam

M5247817

Unavailable

48

Plastic Plate

M5447818

Unavailable

49

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

50

Safety Nut (DESS Switch)

278002963

$3.28

51

Washer 5,3 mm

20008

$0.74

52

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

53

PILOT LAMP D.E.S.S. - Call your local BRP dealership | SUV 600

605450484

Unavailable
