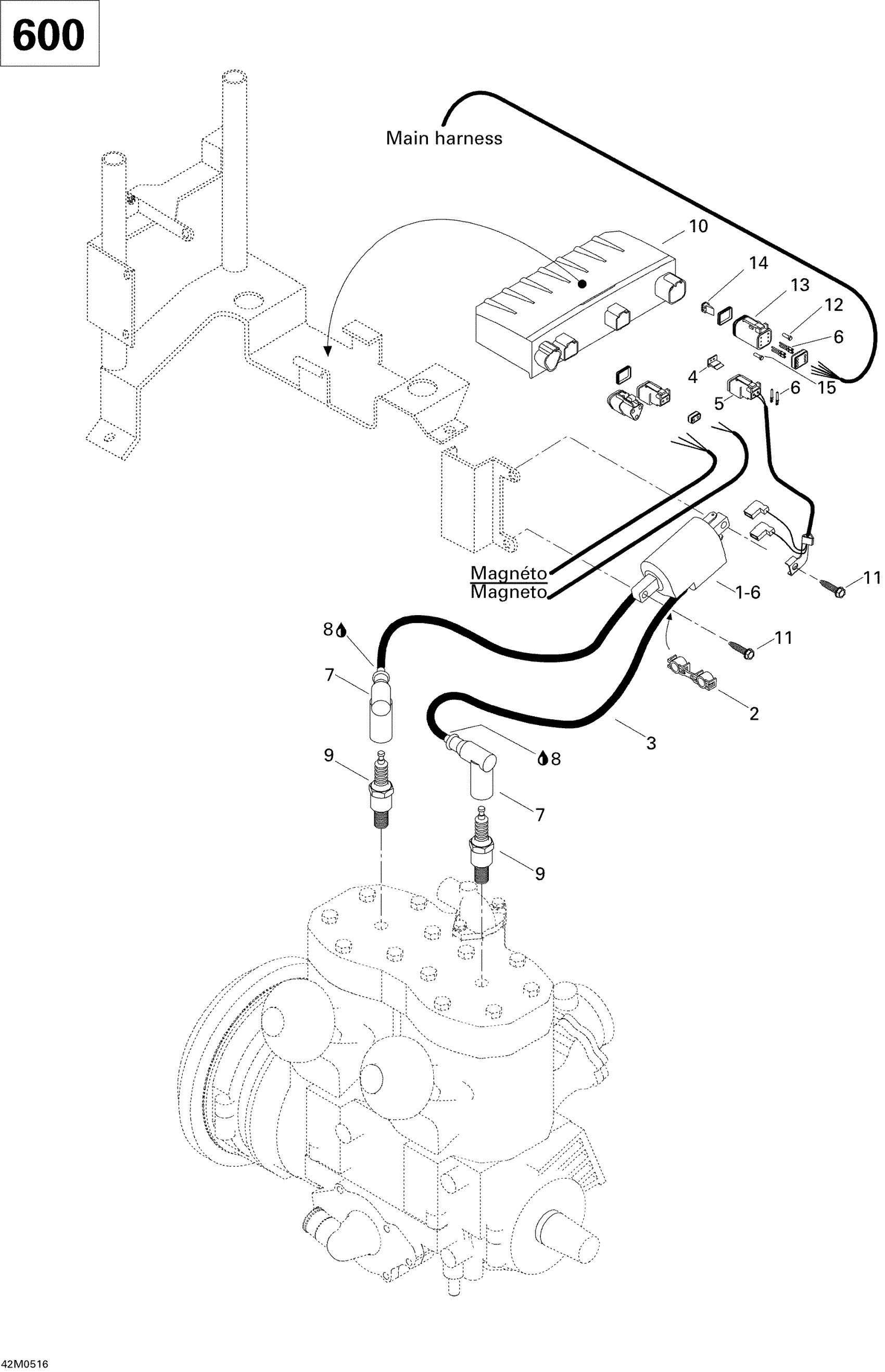

Ski-Doo Skandic WT 600, 2005 04- Ignition 600 Diagram

#

Description
Price

1

Ignition Coil

410922935

Unavailable

2

Plastic Clip, Spark Plug Wire

410914600

$5.61

3

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

4

Male Wedge 2 Ways

M42609

Unavailable

5

Female Connector, 2 Circuits

409207300

$9.85

6

Female Terminal

278000632

$2.09

7

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

Spark Plug NGK BR9ECS-5

512059552

$10.59

10

Calibration Module

605350037

Unavailable

11

Screw

M40377

Unavailable

12

PLUG - Call your local BRP dealership

515175303

Unavailable

13

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

14

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

15

Sealing Cap

293000052

$3.19
