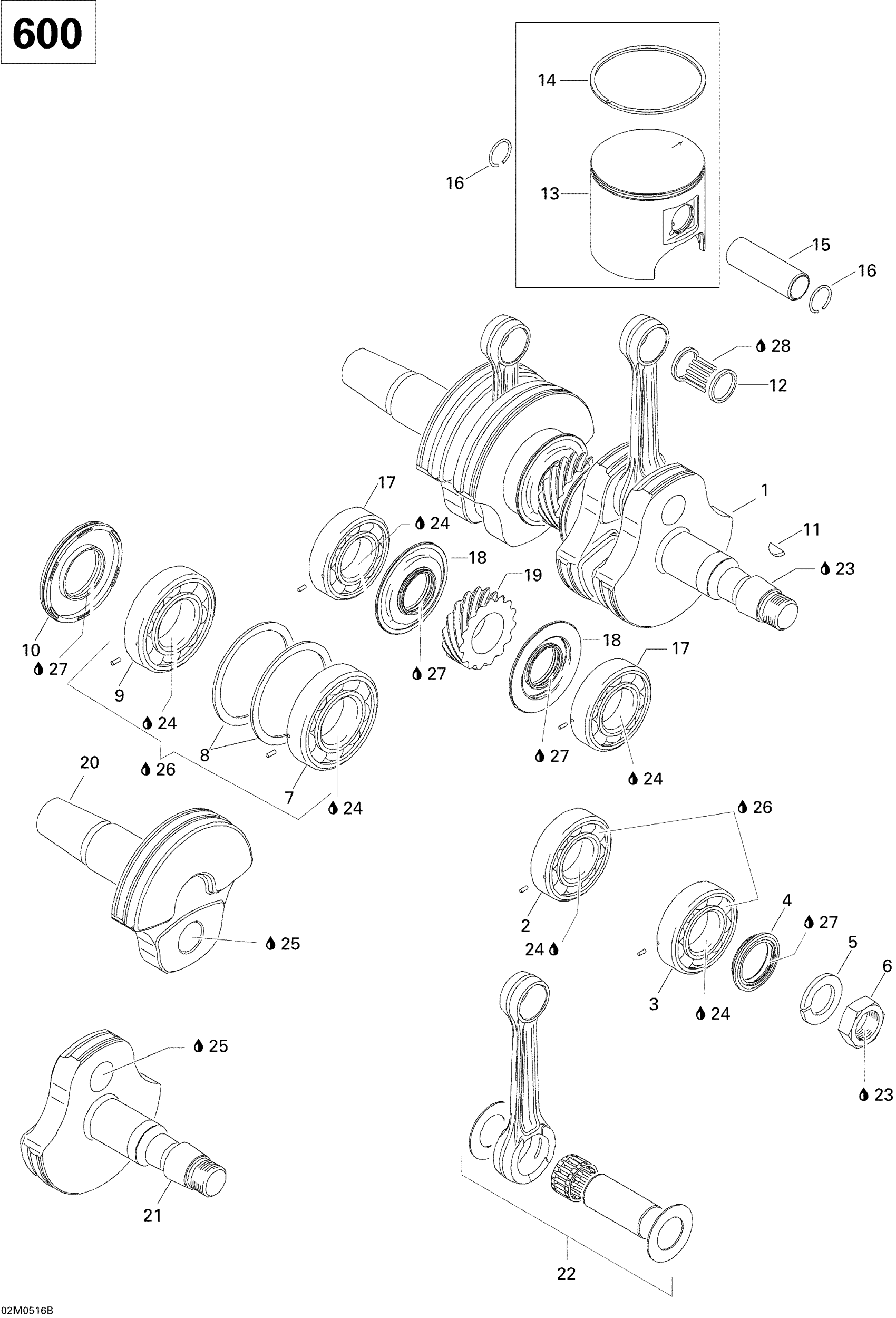

Ski-Doo Skandic WT 600, 2005 Crankshaft And Pistons 600 Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$869.99

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$869.99

2

Ball Bearing

420832596

$90.27

3

Ball Bearing 6206

420832590

$44.75

4

Oil Seal

420931795

$16.39

5

Lock Washer, 22 mm

420945759

$1.78

6

Hex. Nut, M22 X 1.5

420842239

$16.39

7

Ball Bearing Sealed, 6207

420832673

$94.00

8

Retaining Disk

420927710

$7.01

9

Ball Bearing 6207 | With drive pin

420832575

$49.22

10

Oil Seal This part replaces 290831952.

420831952

$16.39

11

Woodruff Key

420246015

$3.01

12

Needle Bearing

420832445

$25.34

13

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$169.37

13

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$169.37

14

Semi-Trapez Ring, Standard

420815155

$52.21

14

Semi-Trapez Ring, 1st

420815156

$52.21

15

Piston Pin

420916412

$31.31

16

Piston Circlip

420845106

$3.89

17

Ball Bearing 6206

420832590

$44.75

18

Oil Seal | Included in gasket kit

420931940

$29.07

19

Central Gear, 15 Teeth

420834350

$91.01

20

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

21

Crankshaft This part replaces 420818693.

420818697

$257.43

22

Rod Repair Kit, MAG Side

420890973

$319.99

22

Rod Repair Kit, PTO Side

420890974

$319.99

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$41.01

26

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33

27

Petamo Grease, GHY133N, 400 g

420899271

$65.64

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33
