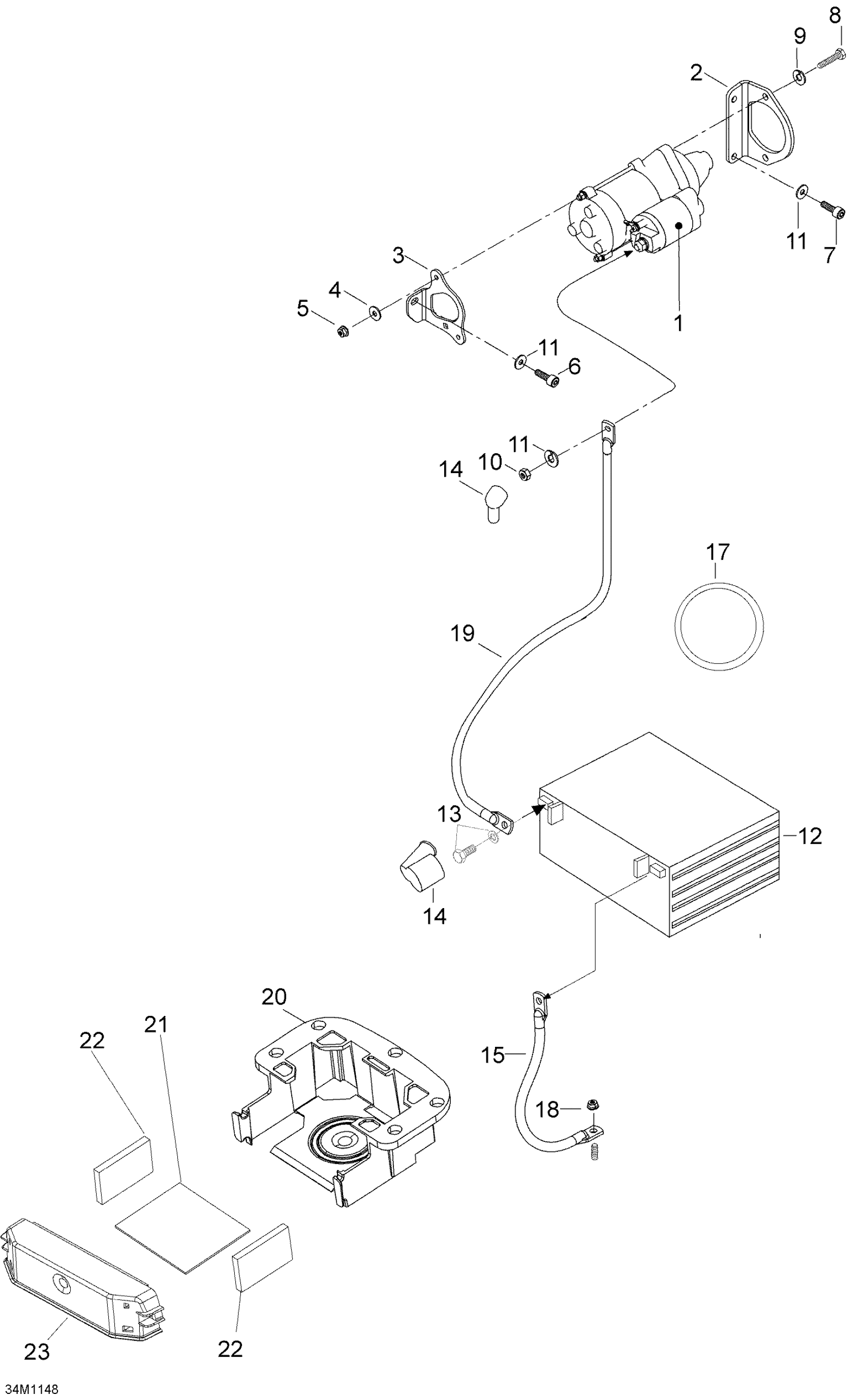

Ski-Doo Skandic WT 550F YetiII, 2011 10- Battery And Starter Diagram

#

Description
Price

1

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

$299.99

2

STARTER BRACKET, P.T.O. - Call your local BRP dealership

420951415

Unavailable

3

STARTER BRACKET, M.A.G. - Call your local BRP dealership

420951426

Unavailable

4

Washer 5,3 mm

20008

$0.74

5

Elastic Stop Nut M5

232551414

$0.87

6

Hex. Screw M8 X 16

M40066

Unavailable

7

Socket Head Screw M8 X 20

205082044

$1.15

8

Hex. Screw M8 X 20

207182044

$0.74

9

Lock Washer 8 mm

234181401

$0.92

10

NUT - Call your local BRP dealership

M33003

Unavailable

11

Lock Washer 8 mm

234181401

$0.92

12

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

13

Battery Bolt Kit

250000282

$7.29

14

Protection Cap

570151000

$21.99

15

GROUND WIRE - Call your local BRP dealership

515175483

Unavailable

16

COVER - Call your local BRP dealership

605352572

Unavailable

17

O'RING 130 X6,0 - Call your local BRP dealership

605676001

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Battery Holder - Call your local BRP dealership

605255588

Unavailable

21

FOAM - Call your local BRP dealership

605355846

Unavailable

22

FOAM - Call your local BRP dealership

605355847

Unavailable

23

BATTERY COVER - Call your local BRP dealership

605255586

Unavailable
