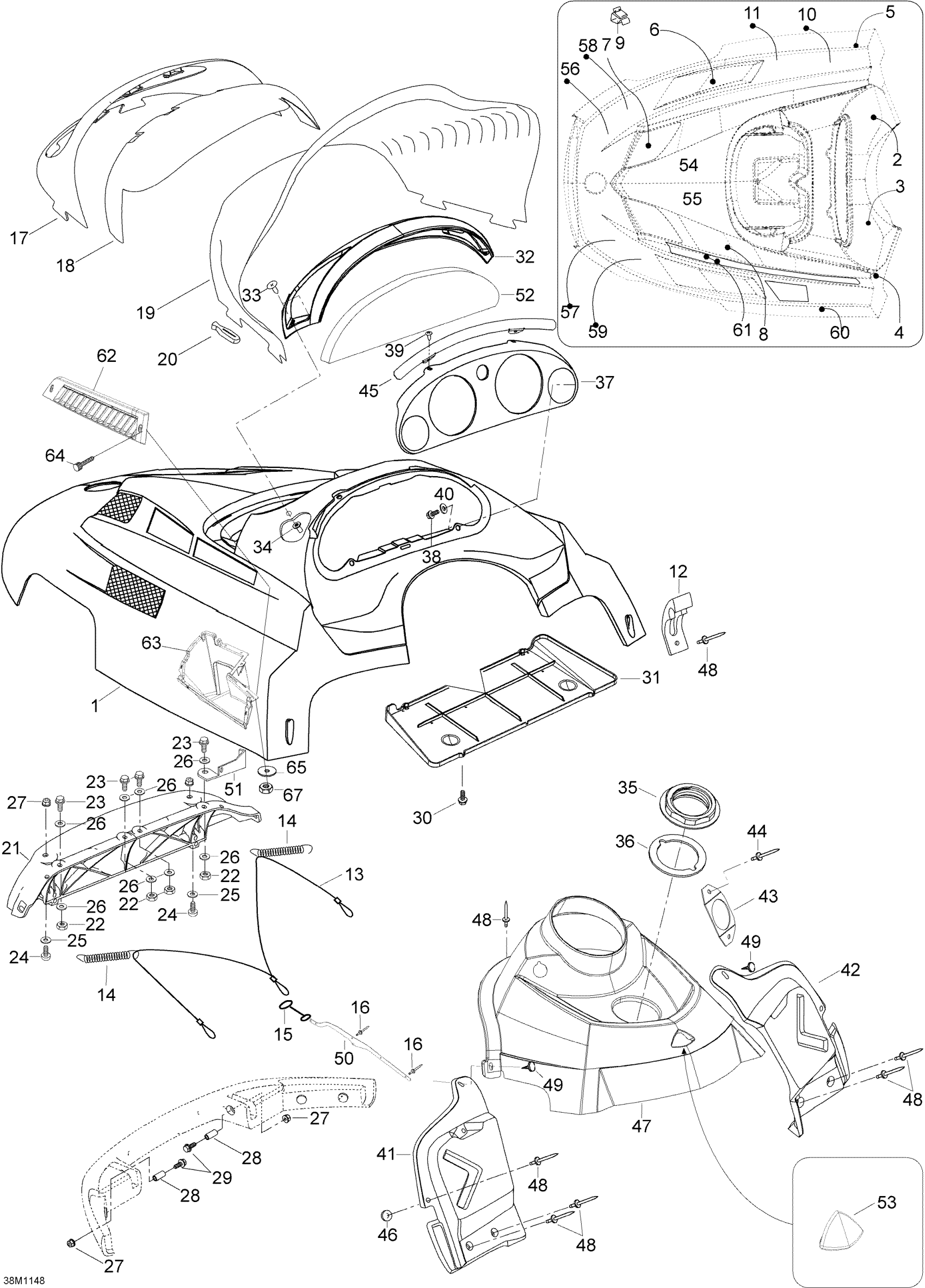

Ski-Doo Skandic WT 550F YetiII, 2011 09- Hood Diagram

#

Description
Price

1

Hood Pre Ass'y, YETI Yellow | Includes 1-8, 10-11, 54-55

605354829

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

ISOLATION REAR LH - Call your local BRP dealership

605350906

Unavailable

3

ISOLATION REAR RH - Call your local BRP dealership

605350907

Unavailable

4

ISOLATION REAR RH - Call your local BRP dealership

605350908

Unavailable

5

LOWER ISOLATION REAR LH - Call your local BRP dealership

605350909

Unavailable

6

LH UPPER GRILL - Call your local BRP dealership

605350923

Unavailable

6

RH UPPER GRILL - Call your local BRP dealership

605350924

Unavailable

7

LH LOWER GRILL - Call your local BRP dealership

605350925

Unavailable

7

RH LOWER GRILL - Call your local BRP dealership

605350926

Unavailable

8

LH GRILL - Call your local BRP dealership

605350927

Unavailable

9

Clip

414227300

$1.67

10

UPPER ISOLATION REAR RH - Call your local BRP dealership

605350910

Unavailable

11

ISOLATION REAR CENTER LH - Call your local BRP dealership

605350911

Unavailable

12

Hood Latch

517302152

$18.49

13

Retainer Cable

605351372

Unavailable

14

Spring This part replaces M5442675.

5442675

$14.99

15

Cable Keeper

M5442870

Unavailable

16

RIVET - Call your local BRP dealership

M36002

Unavailable

17

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

18

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

19

Windshield

605152073

$180.99

20

Windshield Latch

570023800

$4.49

21

Hinge

517302631

$48.99

22

Elastic Stop Nut M6

232561414

$0.55

23

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Washer

20117

$6.39

26

Flat Washer 6 mm

234062410

$0.77

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

BUSHING - Call your local BRP dealership

605454780

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

31

INTAKE PLATE - Call your local BRP dealership

605354612

Unavailable

32

COVER - Call your local BRP dealership

605151832

Unavailable

33

Screw M4 X 18

M40061

Unavailable

34

Well-nut

M28051

Unavailable

35

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

36

Gasket

M5447116

Unavailable

37

INDICATOR SUPPORT - Call your local BRP dealership

605354134

Unavailable

38

Screw Plastofast 4x10 - Call your local BRP dealership

M40611

Unavailable

39

Screw

M40888

Unavailable

40

WASHER - Call your local BRP dealership

M20039

Unavailable

41

LH CONSOLE - Call your local BRP dealership

605251384

Unavailable

42

RH CONSOLE - Call your local BRP dealership

605251922

Unavailable

43

Support, LH Console

605352405

Unavailable

44

Rivet

36005

$2.11

45

SUPPORT PLATE - Call your local BRP dealership

605352586

Unavailable

46

Washer 5,3 mm

20008

$0.74

47

Central Console

605252075

Unavailable

48

Black Rivet

36037

$1.48

49

Black, Dart

414644300

$0.98

50

BRACKET - Call your local BRP dealership

605452657

Unavailable

51

RH HOOD SUPPORT - Call your local BRP dealership

605351464

Unavailable

51

LH HOOD SUPPORT - Call your local BRP dealership

605351463

Unavailable

52

FILTER - Call your local BRP dealership

605352583

Unavailable

53

PLUG - Call your local BRP dealership

605453896

Unavailable

54

ISOLATION CENTER LH - Call your local BRP dealership

605350912

Unavailable

55

ISOLATION CENTER RH - Call your local BRP dealership

605350913

Unavailable

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Not Available As Spare Part - Friction Washer

Unavailable

60

Not Available As Spare Part - Friction Washer

Unavailable

61

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

62

Cooling channel - Call your local BRP dealership

605354586

Unavailable

63

Cooling channel - Call your local BRP dealership

605354585

Unavailable

64

Self Tapping Screw #8 X 5/8

250000202

$1.48

65

Washer | DS 650 X

391301600

$0.48

66

Torx Screw M5 X 20

250000724

$1.69

67

Elastic Stop Nut M5

232551414

$0.87
