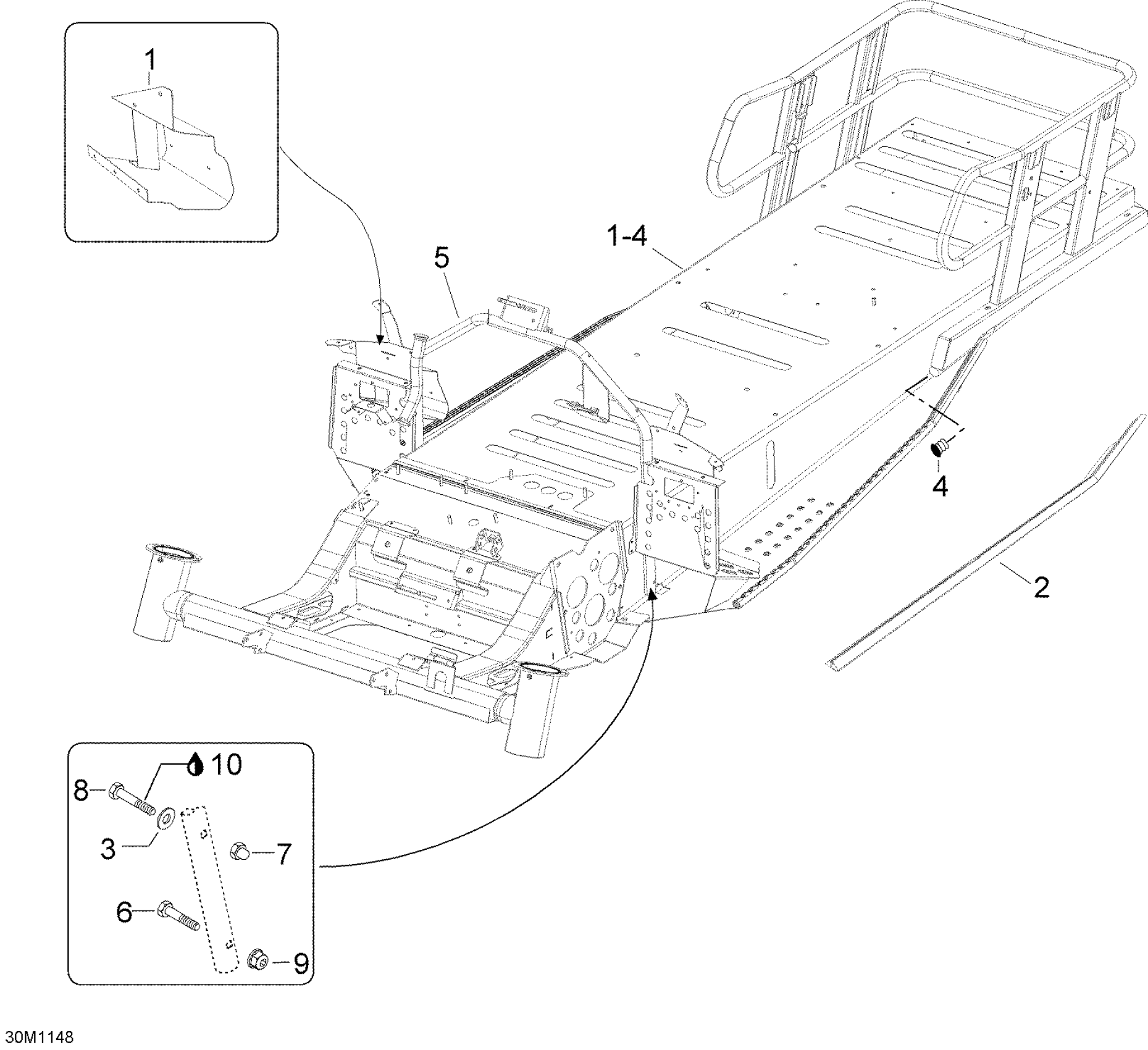

Ski-Doo Skandic WT 550F YetiII, 2011 Frame Diagram

#

Description

Price

-

Frame Skandic WT 550 | Includes 1 to 4

605156195

Unavailable

1

RH Toe Rest

605350839

Unavailable

1

LH TOE REST - Call your local BRP dealership

605350840

Unavailable

2

LH REINFORCEMENT - Call your local BRP dealership

605255625

Unavailable

2

RH REINFORCEMENT - Call your local BRP dealership

605255626

Unavailable

3

Flat Washer 6 mm

234061410

$1.49

4

Plug

M28210

Unavailable

5

WELDED STEERING SUPPORT - Call your local BRP dealership

605155568

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Hex. Nut M6

232061414

$1.49

8

Hex. Screw M6 X 40

207064044

$1.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

10

Loctite 243, 10 ml

293800060

$21.49
