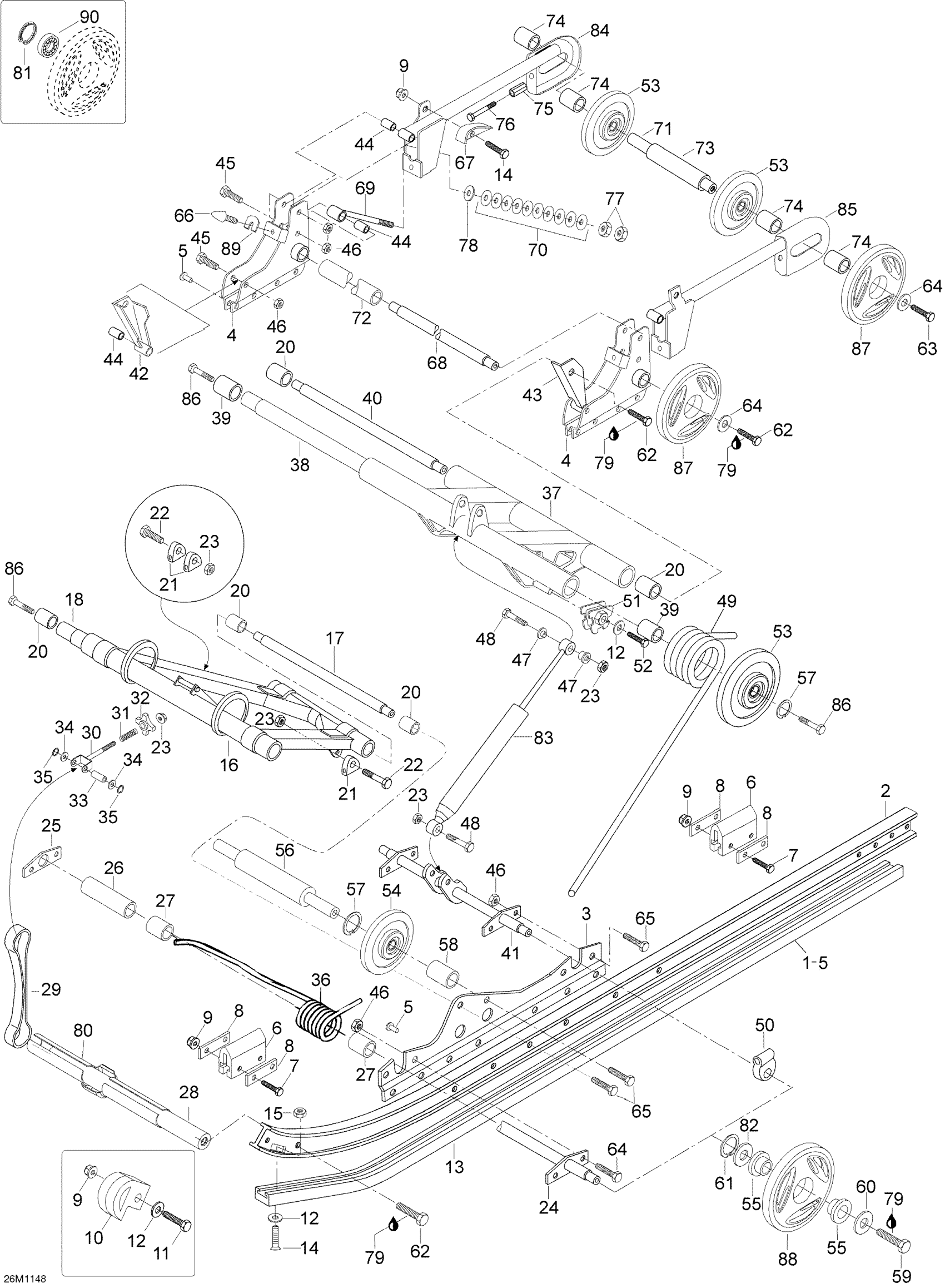

Ski-Doo Skandic WT 550F YetiII, 2011 Rear Suspension Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

RUNNER - Call your local BRP dealership This part replaces M5142864.

5142864

$222.28

3

Support Plate Rh This part replaces M5344811.

5344811

$54.58

3

Support Plate Lh This part replaces M5344810.

5344810

$54.58

4

Support For Rearaxle Rh This part replaces M539673.

539673

$83.82

4

Support For Rearaxle Lh This part replaces M539672.

539672

$83.82

5

RIVET - Call your local BRP dealership

M544212

Unavailable

6

RUBBER STOPPER - Call your local BRP dealership

570023100

$15.35

7

Hex. Screw M6 X 40

207064044

$1.48

8

Washer

M548387

$6.51

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Runner Protector

605348954

$17.66

11

Hex. Screw M6 X 25

207162544

$1.05

12

Flat Washer 6 mm

234061410

$1.04

13

Runner Shoe

M549582

$33.05

14

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

15

Elastic Stop Nut M6

232561414

$1.55

16

Front arm - Call your local BRP dealership

605255303

$499.20

17

Shaft This part replaces M549695.

549695

$36.89

18

Bogie Shaft This part replaces M542793.

542793

$46.12

20

Shaft Sleeve This part replaces M542770.

542770

$18.43

21

Spring Roller This part replaces M548799.

548799

$11.40

22

Hex. Screw M10 X 40

207004044

$4.65

23

Elastic Locking Nut M10 X 1.5

233601416

$1.68

24

Axle

M5345453

$79.97

25

Plate Support

M548469

$10.98

26

Sleeve

M5440313

$19.97

27

Sleeve

M548841

Unavailable

28

Cross Shaft

M549718

Unavailable

29

STOPPER STRAP - Call your local BRP dealership

605454841

Unavailable

30

Bolt-Eye Adjuster

M5441643

$14.82

31

SPRING - Call your local BRP dealership

414460600

$5.58

32

ADJUSTER KNOB - Call your local BRP dealership

572034000

$7.45

33

Pin

M5441645

Unavailable

34

Flat Washer 10 mm

234001410

$0.98

35

Circlip

M41035

Unavailable

36

RH Front Arm Spring

605354840

Unavailable

36

LH Spring Front Arm

605354839

$53.05

37

Reararm - Call your local BRP dealership This part replaces M5343493.

5343493

$434.58

38

Shaft This part replaces M5347731.

5347731

$196.89

39

Bearing This part replaces M31023.

31023

$12.28

40

Swing shaft - Call your local BRP dealership This part replaces M549656.

549656

Unavailable

41

SHAFT - Call your local BRP dealership This part replaces M5345454.

5345454

Unavailable

42

Crank Arm R.H. This part replaces M5440350.

5440350

$83.82

43

Crank Arm Lh This part replaces M5440349.

5440349

$72.28

44

Spacer This part replaces M545758.

545758

$26.12

45

Hex. Screw M8 X 45

207084544

$1.25

46

Hex. Elastic Stop Nut M8

232581414

$0.47

47

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

Unavailable

48

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

49

Spring R.H. This part replaces M538806.

538806

Unavailable

49

Spring L.H. This part replaces M538805.

538805

Unavailable

50

SPRING SUPPORT - Call your local BRP dealership

M5442112

Unavailable

51

LH ADJUST CAM - Call your local BRP dealership

572030800

$19.20

51

RH ADJUST CAM - Call your local BRP dealership

572030900

$19.20

52

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

53

Thin Wheel 165

503189478

$49.97

54

Wheel 139 mm Ass'y

503190798

$32.28

55

Cushion

503189534

$4.55

56

Support Shaft

M549680

Unavailable

57

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

$4.29

58

Sleeve

M546577

$13.98

59

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

60

Washer

503183100

$3.08

61

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.28

62

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.11

63

Hex. Screw With Nylon Patch

M40050

Unavailable

64

Washer

503183300

$5.68

65

Hex. Screw M8 x 16

207181644

$0.87

66

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

67

Protector

M548262

Unavailable

68

Axle This part replaces M541816.

541816

$55.35

69

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

Unavailable

70

Cup Spring This part replaces M25004.

25004

$3.43

71

SHAFT - Call your local BRP dealership

M5343284

Unavailable

72

Sleeve

M541815

$23.05

73

SLEEVE - Call your local BRP dealership

M5443285

Unavailable

74

Sleeve

M546577

$13.98

75

Spacer

605633002

$1.48

76

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

77

Hex. Nut M10 X 1.5

232006414

$1.11

78

Flat Washer 10 mm This part replaces M20011.

234002410

$1.25

79

Loctite 243, 10 ml

293800060

$20.77

80

Retainer for stopper strap - Call your local BRP dealership

605349381

Unavailable

81

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

82

SHIM - Call your local BRP dealership

M31091

Unavailable

83

SHOCK - Call your local BRP dealership

503189997

Unavailable

84

EXTENSION WELDELD RH - Call your local BRP dealership

605252505

$175.35

85

EXTENSION WELDELD LH - Call your local BRP dealership

605252504

Unavailable

86

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

$2.94

87

Wheel 165 mm Yellow

503190817

$49.97

88

WHEEL 139 MM - Call your local BRP dealership

503190815

$25.35

89

Adjustment Plate This part replaces M5440645.

5440645

$13.95

90

Ball Bearing

293350115

$11.15
