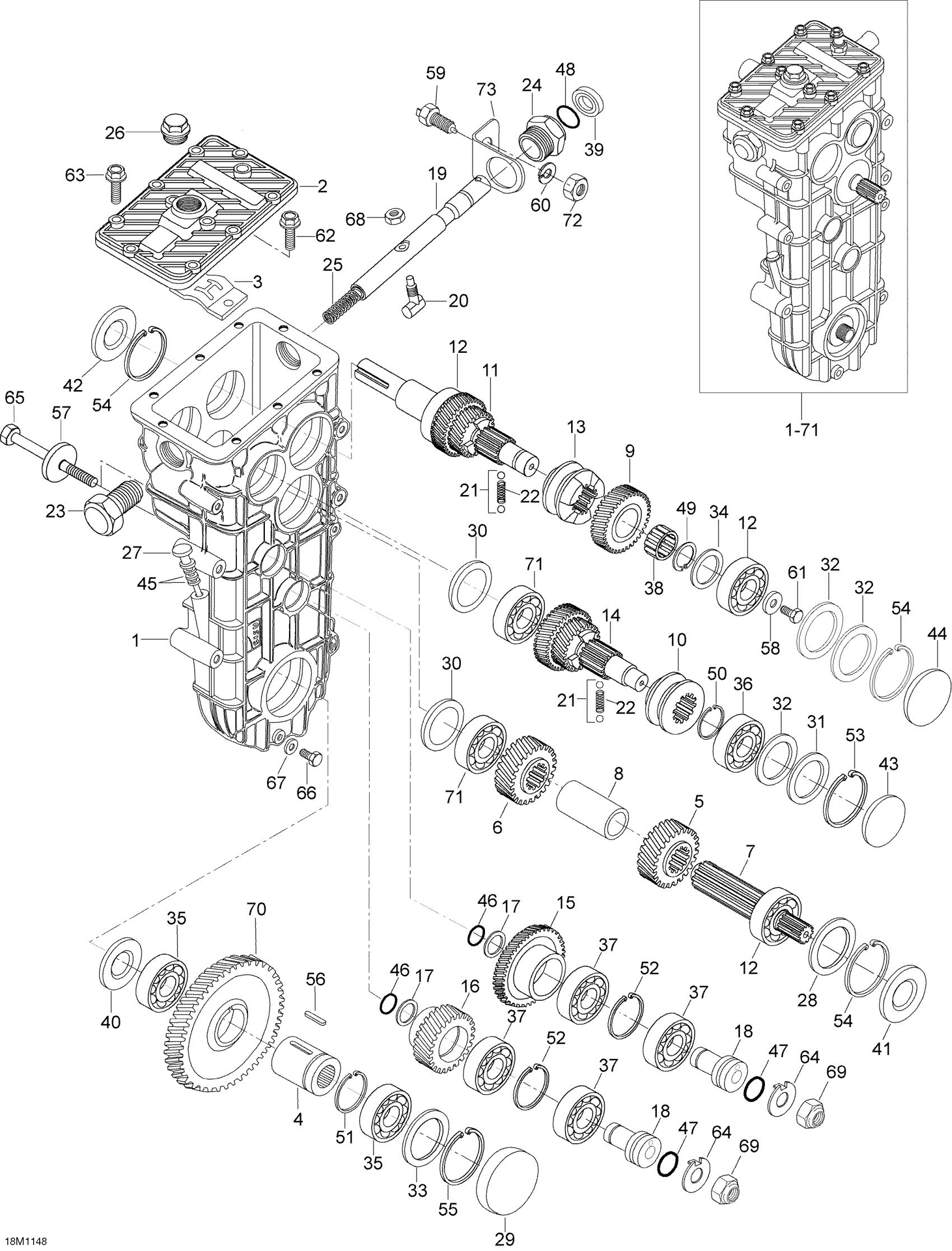

Ski-Doo Skandic WT 550F YetiII, 2011 Transmission Diagram

#

Description
Price

-

GEAR BOX - Call your local BRP dealership | Includes 1 to 71

605612000

Unavailable

1

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

$1,373.82

2

COVER - Call your local BRP dealership

M875156043

Unavailable

3

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

4

SHAFT - Call your local BRP dealership

M875156218

Unavailable

5

Gear Z=29 - Call your local BRP dealership

875156276

$309.97

6

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

$503.82

7

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

$509.20

8

SLEEVE - Call your local BRP dealership

M875156087

$39.20

9

SPROCKET Z=27 L.H. - Call your local BRP dealership This part replaces M875156052.

875156052

$276.89

10

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

11

COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.

875156063

$1,387.66

12

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

13

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

14

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

$1,450.74

15

SPROCKET-28 - Call your local BRP dealership This part replaces M875156050.

875156050

$446.89

16

SPROCKET 31 TH - Call your local BRP dealership

M875156049

Unavailable

17

Washer - Call your local BRP dealership This part replaces M875156328.

875156328

$9.91

18

SHAFT - Call your local BRP dealership

619230005

Unavailable

19

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

20

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

21

Ball This part replaces M616810064.

616810064

$25.35

22

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

$10.06

23

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

$32.28

24

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

25

Spring This part replaces M875156078.

875156078

$102.28

26

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

27

DIPSTICK - Call your local BRP dealership This part replaces M875156278.

875156278

Unavailable

28

Shim 0.5 mm - Call your local BRP dealership This part replaces M617395067.

617395067

$13.58

29

Plug - Call your local BRP dealership This part replaces M614100068.

614100068

$33.05

30

Plug This part replaces M875152953.

875152953

$39.97

31

Shim 0.5 mm - Call your local BRP dealership This part replaces M617394352.

617394352

Unavailable

31

Shim

M617394252

$9.97

32

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

$13.65

33

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

$14.35

34

WASHER-AXIAL - Call your local BRP dealership

M616092542

$27.66

35

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

36

Bearing - Call your local BRP dealership This part replaces M6304.

6304

Unavailable

37

BEARING - Call your local BRP dealership This part replaces M612030303.

612030303

Unavailable

38

Needle bearing This part replaces M611002529.

611002529

$26.12

39

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

40

Oil seal This part replaces M614102852.

614102852

$25.35

41

Oil seal This part replaces M614102562.

614102562

$50.74

42

Oil seal This part replaces M614103562.

614103562

$53.99

43

Plug This part replaces M614100052.

614100052

$27.66

44

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

$23.05

45

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

$8.69

46

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

47

O-ring This part replaces M614602431.

614602431

$10.52

48

O-ring This part replaces M614601523.

614601523

$10.52

49

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

$4.14

50

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

Unavailable

51

CIRCLIP - Call your local BRP dealership

M617300040

$2.92

52

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

$9.51

53

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$7.31

54

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

Unavailable

55

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

$9.71

56

KEY - Call your local BRP dealership

M603345080

$8.51

57

WASHER - Call your local BRP dealership

619230004

$39.97

58

WASHER - Call your local BRP dealership

M875156112

Unavailable

59

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

$103.82

60

WASHER - Call your local BRP dealership

M20016

$1.37

61

Hex. Screw M8 X 20

207182044

$0.61

62

Hex. Screw

M40337

Unavailable

63

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

64

Washer - Call your local BRP dealership This part replaces M875156327.

875156327

$30.74

65

SCREW - Call your local BRP dealership

619230003

$18.43

66

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

67

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

68

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

69

NUT M10 - Call your local BRP dealership This part replaces M510600802.

510600802

Unavailable

70

SPROCKET-55 - Call your local BRP dealership This part replaces M875156048.

875156048

$267.66

71

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

72

NUT - Call your local BRP dealership

M33021

$2.92

73

BRACKET - Call your local BRP dealership

M5346698

$13.17
