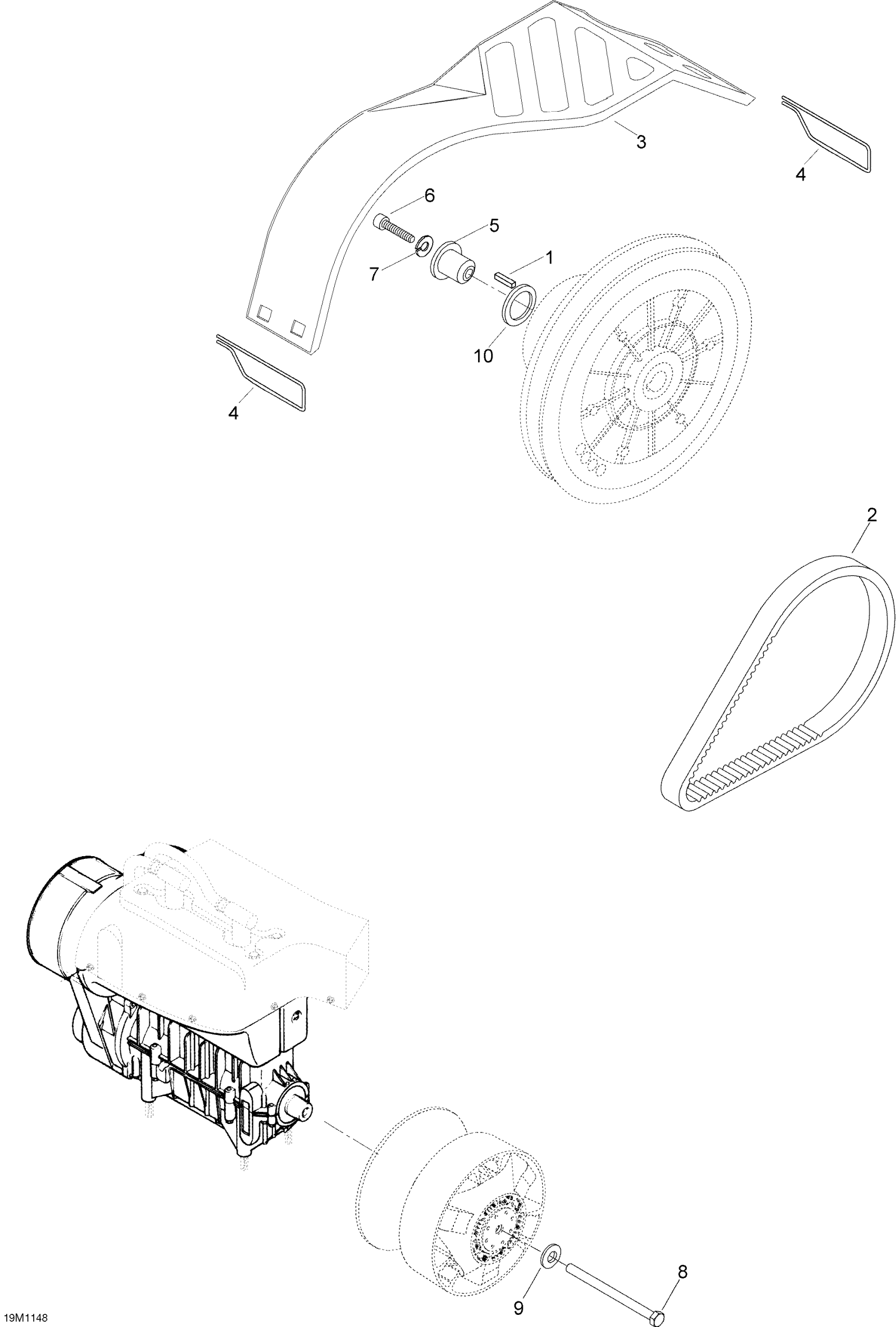

Ski-Doo Skandic WT 550F YetiII, 2011 Pulley System Diagram

#

Description

Price

1

KEY - Call your local BRP dealership This part replaces M418763.

619690074

Unavailable

2

Drive Belt

605348425

$154.99

3

BELT GUARD - Call your local BRP dealership

605149860

Unavailable

4

Pin This part replaces M5442726.

5442726

$7.69

5

Sleeve This part replaces M5443201.

5443201

$48.99

6

Socket Head Screw M8 X 45

M40286

Unavailable

7

Lock Washer 8 mm

234181401

$1.49

8

BOLT - Call your local BRP dealership

417113800

Unavailable

9

Conical Spring Washer M12

250200005

$3.39

10

Shim

M3125351

Unavailable
