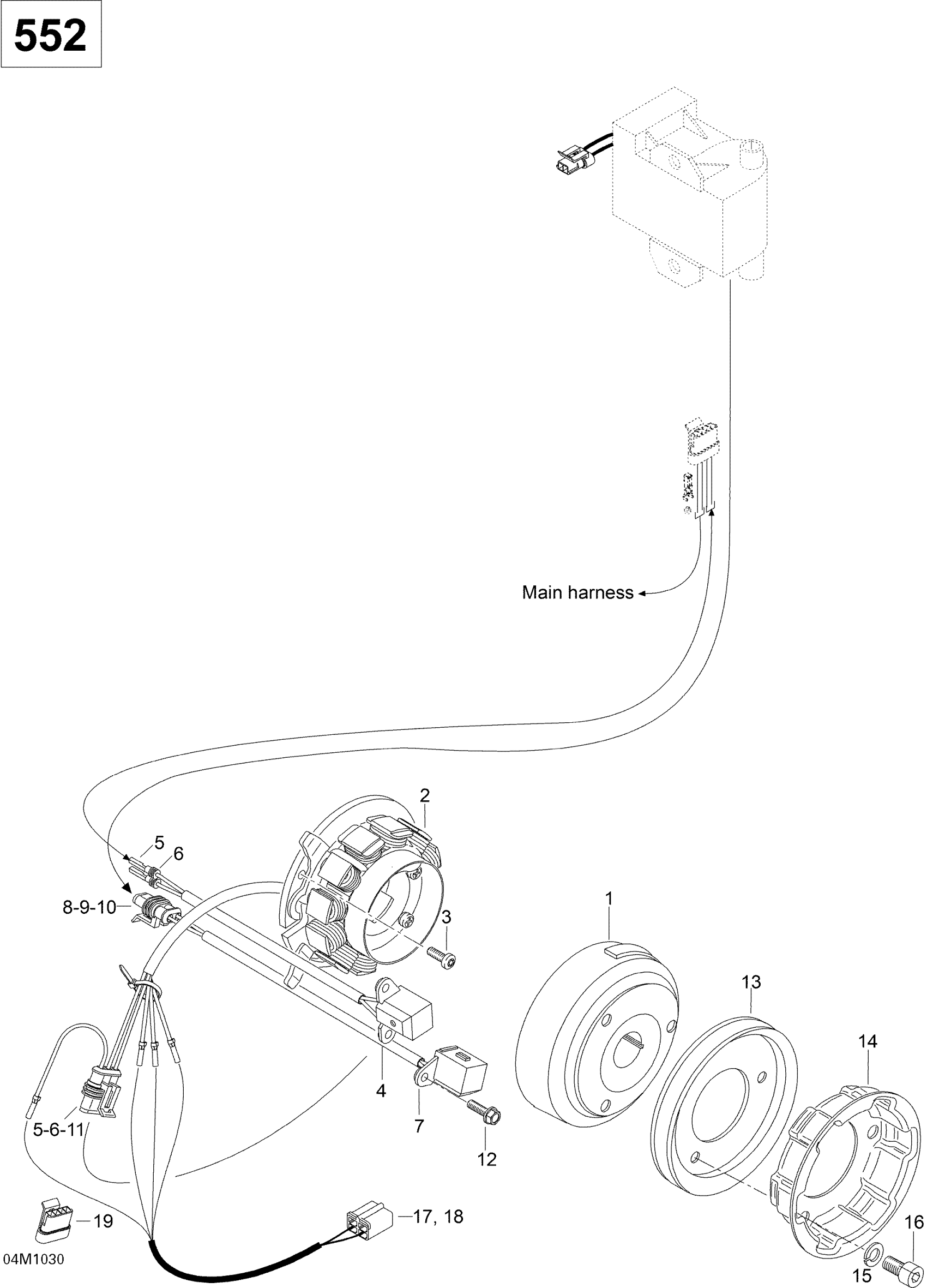

Ski-Doo Skandic WT 550F YetiII, 2011 Magneto Diagram

#

Description
Price

—

Not Available As Spare Part - Friction Washer

Unavailable

1

Flywheel

420889376

$470.74

2

Stator Plate A

420889369

$319.49

3

Screw

420641521

$8.34

4

Pick-Up

420665163

$153.82

5

Female Terminal

278001014

$2.72

6

Wire Seal

278001013

$2.72

7

PICK-UP - Call your local BRP dealership

420665160

$146.89

8

Female Housing, 2 Circuits

409209500

$13.48

9

Female Terminal

278001014

$2.72

10

Wire Seal

278001013

$2.72

11

Female Housing, 3 Circuits

409209600

$35.35

12

Taptite Screw M5 X 16

420941928

$0.39

13

V-Belt Pulley

420980486

$36.89

14

Rope Sheave

420852414

$28.43

15

Lock Washer

420845311

$1.85

16

Torx Flange Screw M8 X 16

420440852

$4.00

17

Female Terminal Housing, 4 Circuits

278001473

$25.35

18

Female Lock, 4 Circuits

278001474

$3.02

19

Male Housing

M42618

$14.46
