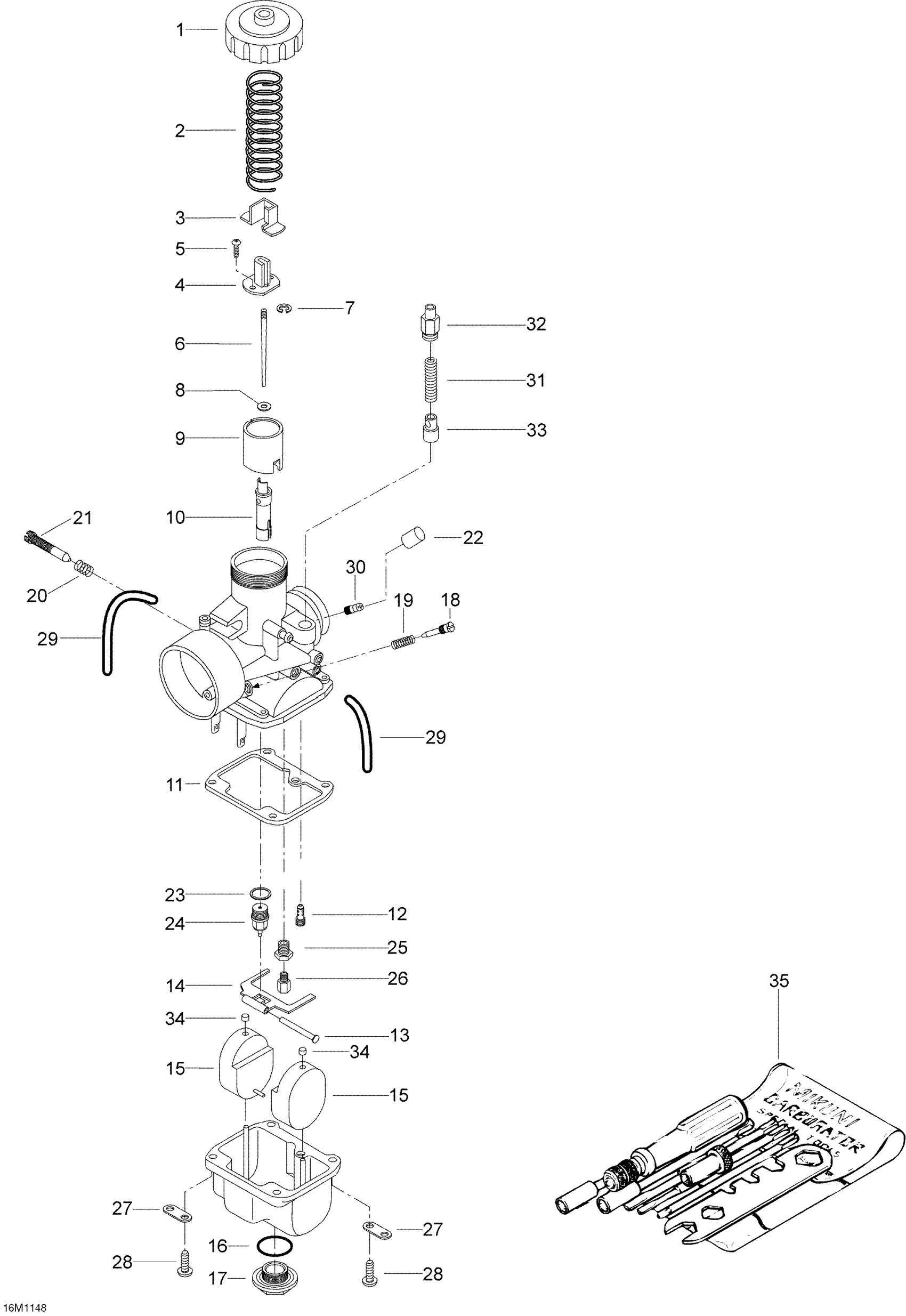

Ski-Doo Skandic WT 550F YetiII, 2011 Carburetor Diagram

#

Description
Price

-

CARBURETOR VM30-215 - Call your local BRP dealership | Includes 1 to 34

605619004

$760.74

1

Cover

404103700

$32.99

2

Spring

404154800

$24.99

3

Cover

404122100

$18.43

4

CONNECTOR - Call your local BRP dealership

404160800

$14.12

5

Screw With Washer

404121300

$4.29

6

Needle, J8-6BFY46

404162113

$32.99

7

E-Ring

404152400

$6.55

8

Packing

404117000

$3.39

9

Piston Valve 2.5

404128400

$129.97

10

Needle Jet

404162124

$42.99

11

Gasket | Includes 1900a to 1900am

404104200

$6.49

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.39

14

Float Lever

404107600

$23.99

15

FLOAT - Call your local BRP dealership

404107100

$25.35

16

O-Ring

404107300

$8.14

17

Drain Plug Screw

404107400

$23.99

18

Air Screw

404102300

$14.91

19

Spring

404101800

$4.39

20

Spring

404101700

$4.29

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Cap

404156600

$16.12

23

Seat Washer

404101600

$3.31

24

Needle Valve 1.2

404147500

$43.99

25

Guide Screw

404105500

$32.99

26

Main Jet 190

404119000

$5.29

27

PLATE - Call your local BRP dealership

404103000

$8.51

28

Screw With Lock Washer

404102000

$3.29

29

AIR VENT TUBE - Call your local BRP dealership

404160100

Unavailable

30

NIPPLE - Call your local BRP dealership

404127600

Unavailable

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

$26.12

33

PLUNGER ASS'Y - Call your local BRP dealership

404160400

$25.35

34

Cap

404105800

$6.49

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
