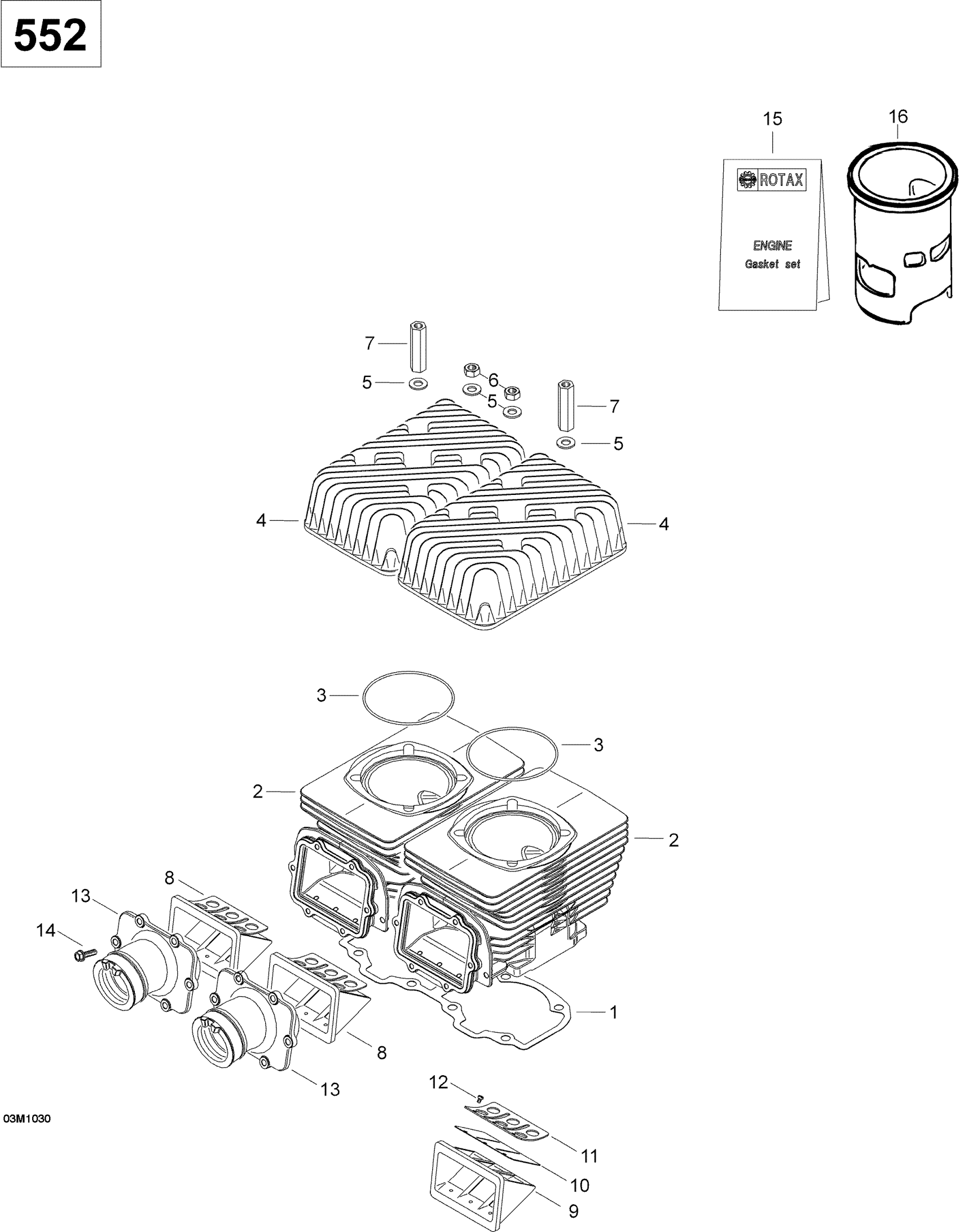

Ski-Doo Skandic WT 550F YetiII, 2011 01- Cylinder and Cylinder Head Diagram

#

Description
Price

1

Gasket 0.3

420950910

$17.39

1

Gasket 0.4

420950911

$19.99

1

Gasket 0.6

420950912

$19.99

2

Cylinder With Sleeve

420623142

$393.99

2

Cylinder With Sleeve

420623142

$393.99

2

REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.

421000663

Unavailable

3

O-Ring This part replaces 420850540.

293300026

$3.39

4

Head Cylinder

420923597

$212.99

5

Flat Washer 8.4 mm

420250315

$1.15

6

Hex. Nut M8

232081414

$0.72

7

Distance Nut M8 X 47

420842204

$16.33

8

Reed Valve Ass'y

420924519

$54.99

9

Not Available As Spare Parts

XXX

Unavailable

10

Reed Pedal

420924532

$42.49

11

Reed Pedal Stop

420924539

$13.16

12

Phillips Screw M3 X 5

420941215

$1.69

13

Carburetor Socket

420867105

$65.49

14

Taptite Screw M5 X 16

420941928

Unavailable

15

Gasket Set, Engine

420889911

$91.99

16

Not Available As Spare Parts

XXX

Unavailable
