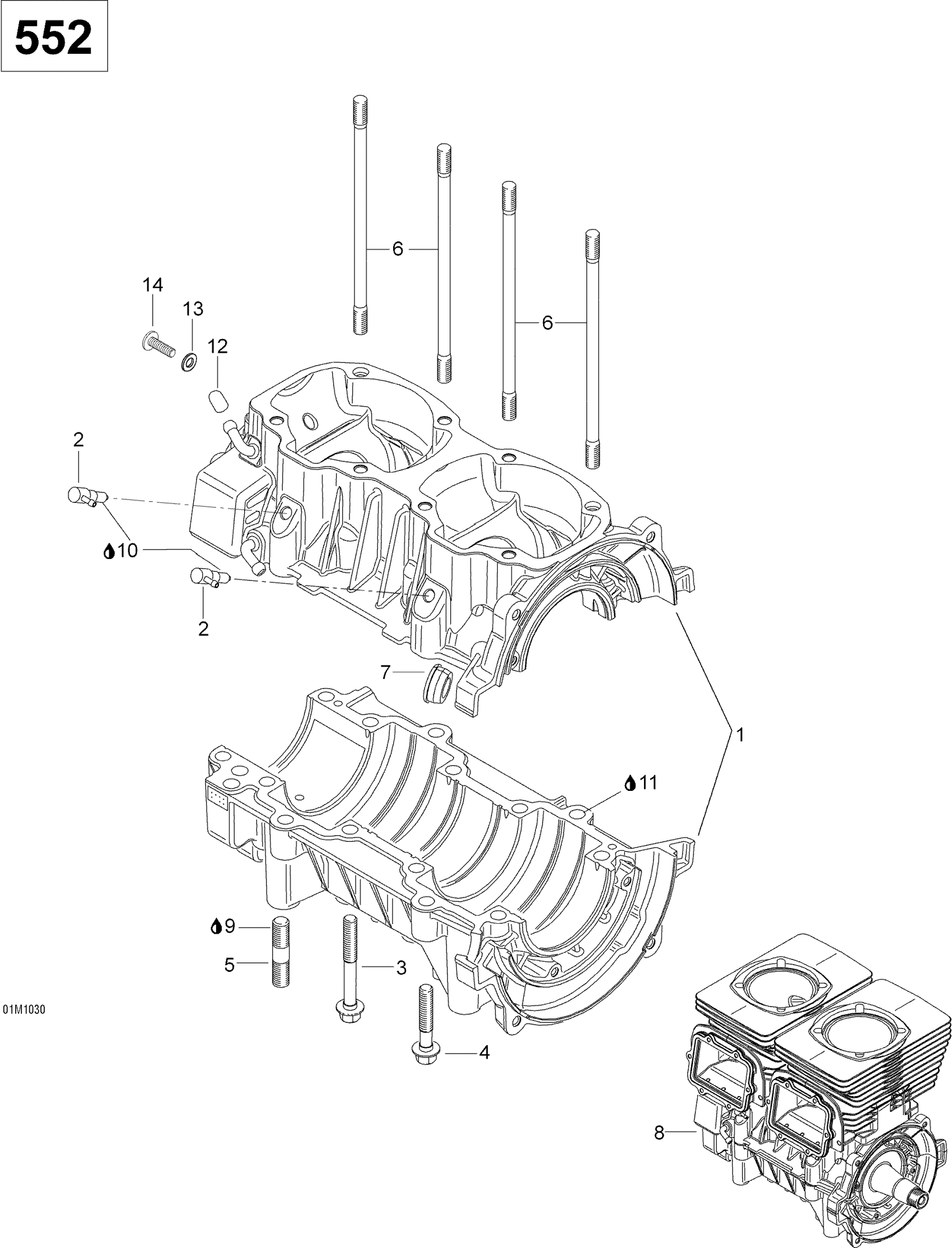

Ski-Doo Skandic WT 550F YetiII, 2011 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 4

420890237

$769.99

2

Check Valve

420956511

$28.57

3

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$6.09

4

Hex. Collar Screw M8 x 45

420640432

$1.94

5

STUD M10 - Call your local BRP dealership

420940704

$9.29

6

Stud M8 X 173.5

420840556

$15.35

7

Cable Grommet

420860962

$11.52

8

REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.

421000663

Unavailable

8

REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.

421000663

Unavailable

9

Loctite 243, 10 ml

293800060

$20.77

10

Sealant Loctite 648

219703000

$35.72

11

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

12

CAP - Call your local BRP dealership

420960772

$4.05

13

Flat Washer 8.4 mm

420250315

$1.09

14

Taptite Flat Head Screw M5 x 12 This part replaces 420640896.

420640897

$2.05
