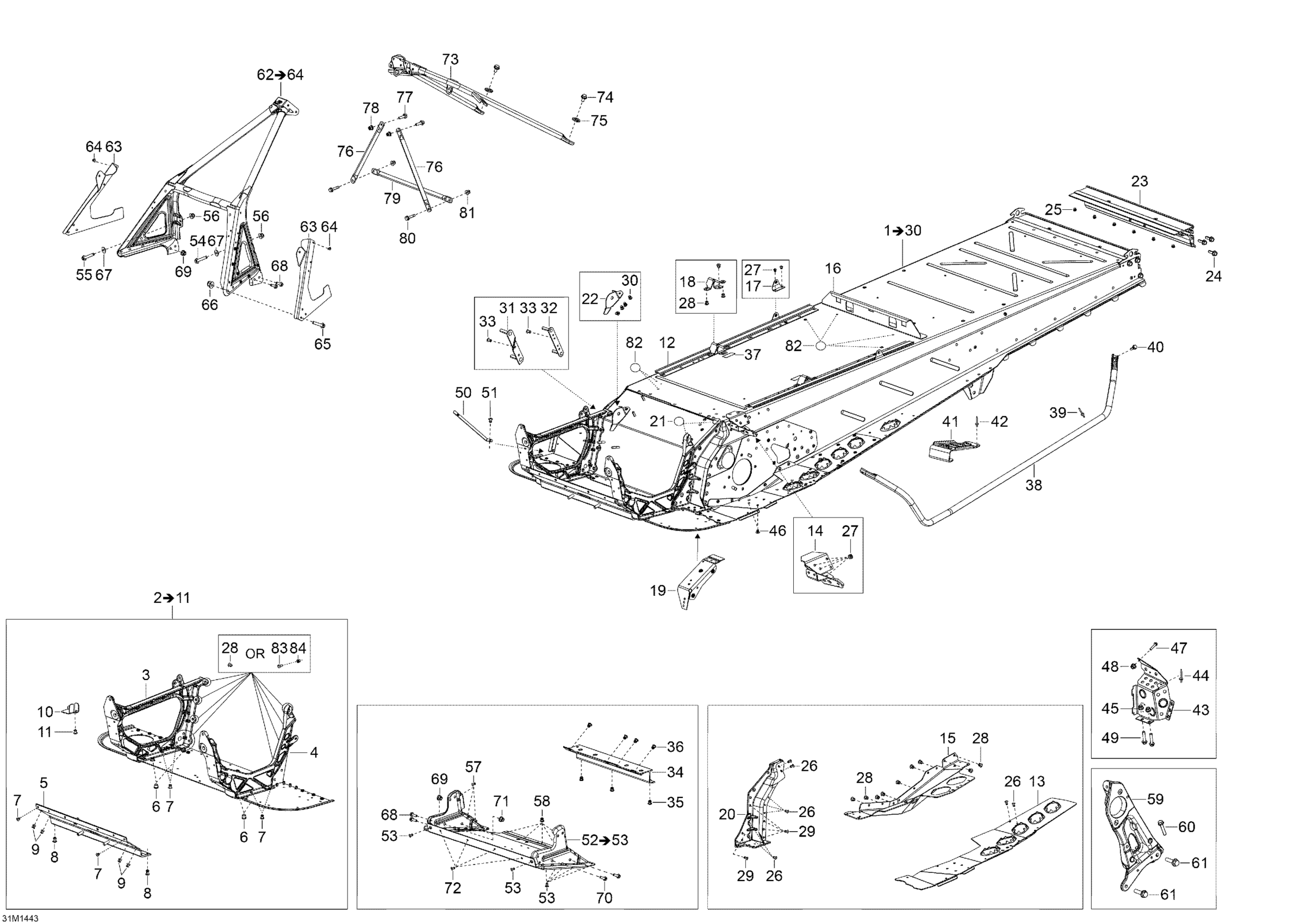

Ski-Doo Skandic WT 550F XU, 2014 Frame Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership | Includes 1 To 30

518328206

Unavailable

2

MODULE E - Call your local BRP dealership | Includes 2 To 11

518328189

Unavailable

3

RH Member

518326795

$252.21

4

LH Member

518325558

$223.85

5

Front Member | Includes 10as to 10at

518325818

$52.96

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Muffler Support

518327219

Unavailable

11

Rivet Hucklok

293150163

$2.73

12

Fastening rail

518326107

$14.90

13

FOOTREST LH - Call your local BRP dealership

518326895

Unavailable

13

FOOTREST RH - Call your local BRP dealership

518326896

Unavailable

14

Fastening Bracket

605355235

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

17

Seat Box Bracket

518327457

$29.07

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

19

Clinch Nut plate

518326430

$44.75

20

LH Frame Corner

518325524

$50.72

20

RH Frame Corner

518328024

$50.72

21

Adhesive Patch

518325560

$4.21

22

RH Support

518326520

$12.42

23

Rear Profile

518328748

$211.16

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

25

Hemlock Rivet, 6.4 mm

293150174

$6.24

26

Avex Rivet

390909100

$0.28

27

Avex Rivet

390909200

$0.28

28

Hemlock Rivet, 6.5 mm

293150119

$3.88

29

Rivet

293150183

$2.00

30

Hemlock Rivet, 6.5 mm

293150096

$3.07

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$14.81

33

Pop Rivet 3/16"

390402200

$0.30

34

Engine Support

518326719

$44.00

35

Rivet Hucklok

293150163

$2.73

36

Avex Rivet

390909200

$0.28

37

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

38

LH Footboard Support Tube

518326963

$123.10

38

RH Footboard Support Tube

518326964

$123.10

39

Avex Rivet

390909100

$0.28

40

Hex. Flange Screw M6 x 20

207662056

$0.96

41

Footrest

520000492

$17.88

42

Avex Rivet

390909100

$0.28

43

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

43

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

44

Avex Rivet

390909200

$0.28

45

Clinch Nut M6 Hexsert

605636003

$4.00

46

Black, Dart

414644300

$0.90

47

Hex. Flange Screw M6 x 20

207662056

$0.96

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

49

Torx Screw M6 X 20

250000722

$1.54

50

Spring Bracket

514054846

$4.21

51

Avex Rivet

390909200

$0.28

52

S Module | Includes 300 to 300a

518326213

$752.96

53

Avex Rivet

390909200

$0.28

54

Hex. Flange Screw M6 X 25

207662544

$0.61

55

Hex. Flange Screw M6 X 25

207662544

$0.61

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

57

Avex Rivet

390909100

$0.28

58

Avex Rivet

390909200

$0.28

59

PULLEY SUPPORT - Call your local BRP dealership

518326714

Unavailable

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

61

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

62

Front Member Ass'y | Includes 700 to 700d

518327004

$485.04

63

LH Bumper Fastener

502007077

$51.46

63

RH Bumper Fastener

502007078

$51.46

64

Avex Rivet

390909200

$0.28

65

Hex. Flange Screw M6 X 20

207662044

$1.91

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

67

Flat Washer

224061201

$1.27

68

Hex. Flange Screw M6 X 20

207662044

$1.91

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

70

Hex. Flange Screw M6 X 20

207662044

$1.91

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

72

Avex Rivet

390909200

$0.28

73

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

74

Hex. Flange Screw M6 x 20

207662056

$0.96

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Upper Lateral Column Support

518325114

$20.12

77

Hex. Flange Screw M6 x 20

207662056

$0.96

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

79

Center Column Support

518325115

$20.12

80

Hex Flange Screw M6 x 25

250000522

$4.15

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

82

Adhesive Patch

518325560

$4.21

83

Hex. Flange Screw M6 X 20

207662044

$1.91

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
