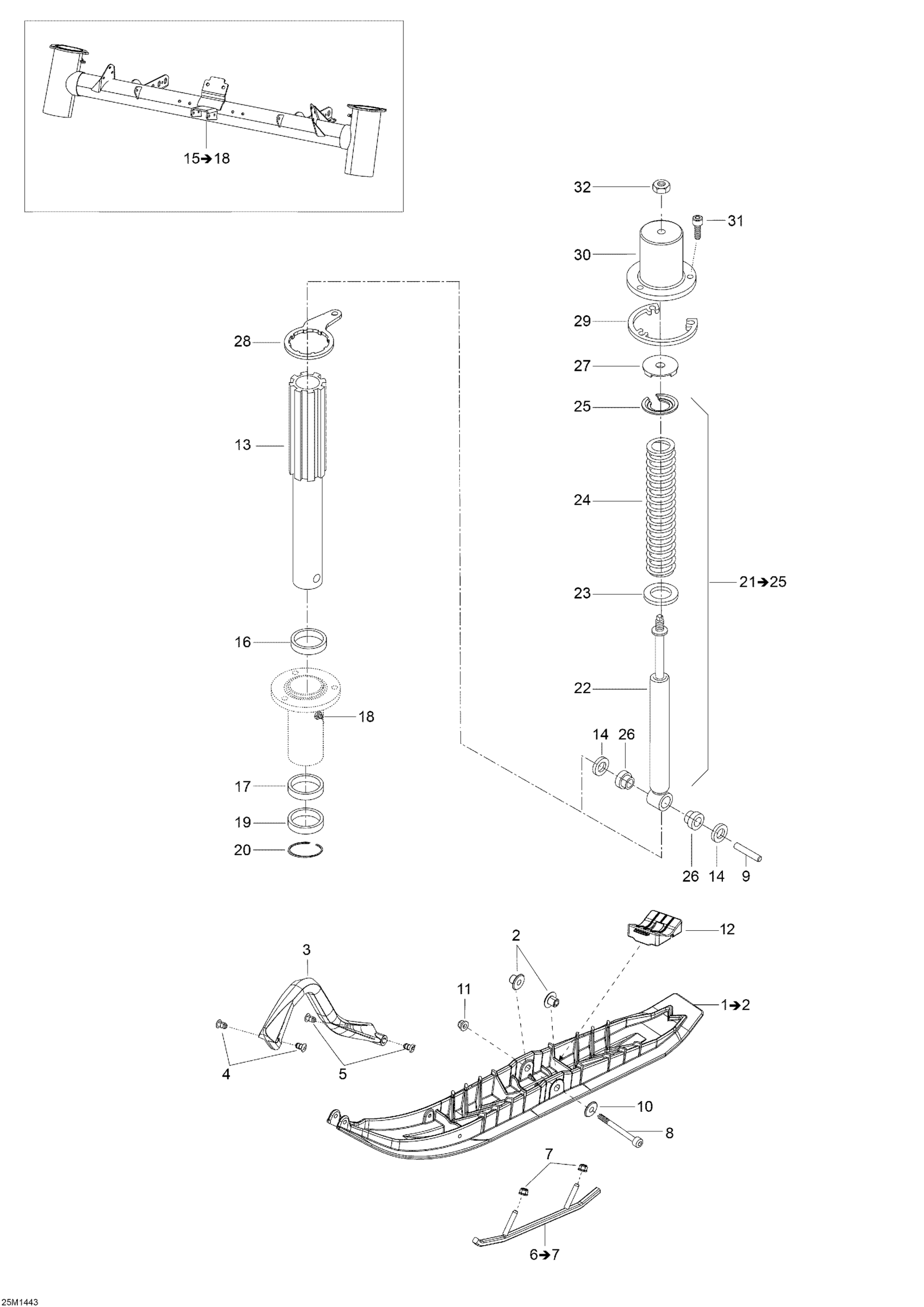

Ski-Doo Skandic WT 550F XU, 2014 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$170.12

2

Ski Bushing

505071781

$14.90

3

Black, Handle

505072976

$34.30

4

Retainer 17mm long

505071812

$4.30

5

Retainer 23mm Long

505072133

$4.88

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

9

Ski Axle

505073209

$12.31

10

Washer

732900049

$0.55

11

Hex. Flange Elastic Nut M10

233201414

$1.45

12

Ski Stopper

505072594

$17.13

13

Ski Leg

505073200

$281.31

14

Spacer

505072579

$7.36

15

Module Ass'y | Includes 400 to 400d

505073967

$484.30

16

Upper Cushion

414803100

$8.16

17

Lower Cushion

414803200

$11.36

18

Grease Fitting

408200700

$3.21

19

Seal Oil

505072696

$44.75

20

Circlip

505072698

$12.51

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Shock

505073046

$152.96

23

Washer

505072578

$12.18

24

Black, Spring

505072557

$64.90

25

Spring Stopper

505072619

$9.93

26

Cushion

572034500

$9.69

27

Rubber Bumber

605354835

$13.54

28

Steering Arm

505073823

$88.03

29

Spacer

505073983

$23.85

30

Suspension Cover LH

505072874

$125.34

30

Suspension Cover RH

505072875

$125.34

31

Socket Head Screw M8 X 20

205082044

$1.06

32

Hex. Flange Elastic Nut M10

233201414

$1.45
