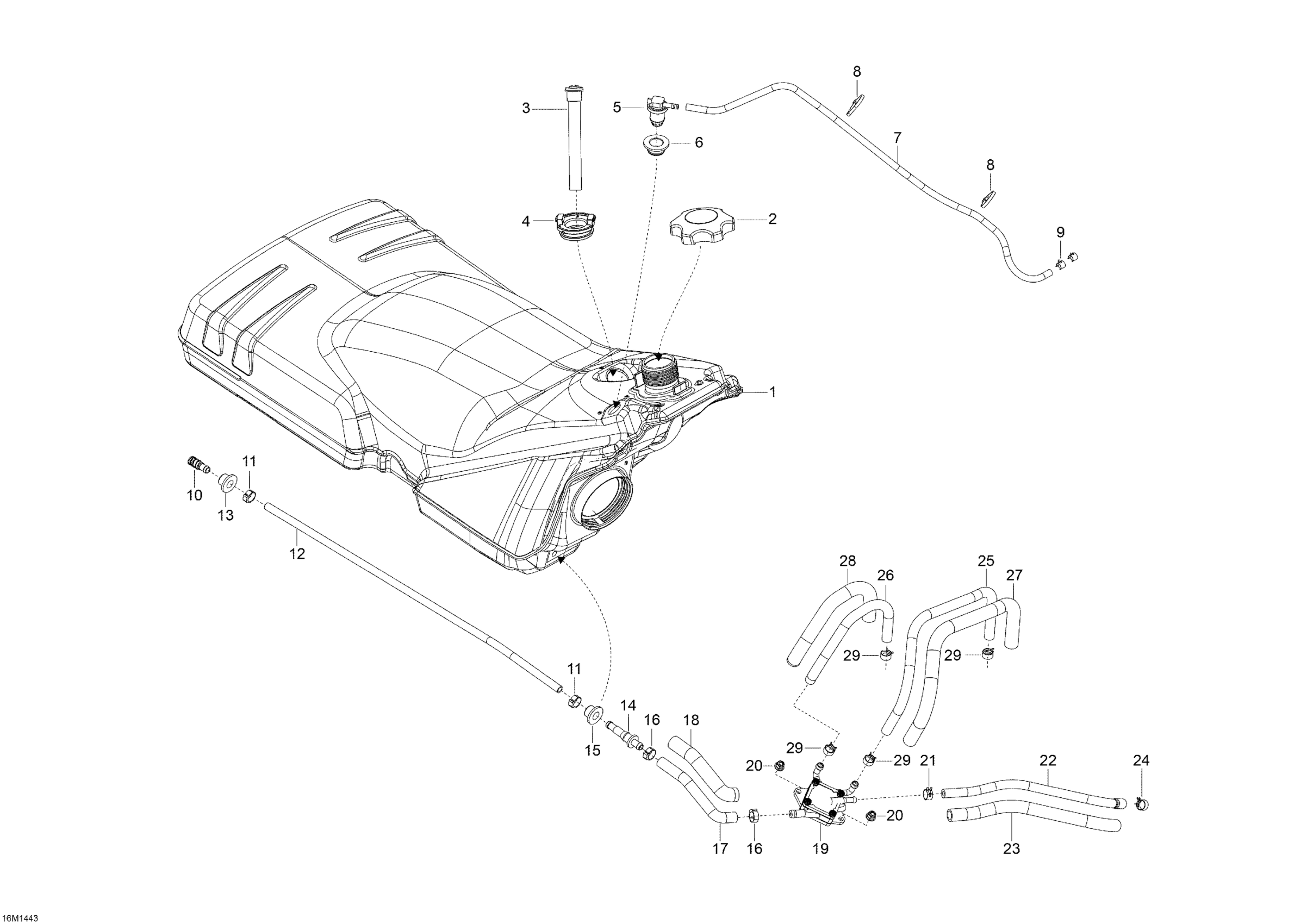

Ski-Doo Skandic WT 550F XU, 2014 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033632

Unavailable

2

Fuel Tank Cap

513033969

$24.60

2

Fuel Tank Cap 95 Octane | Europe

513033723

$24.60

3

Fuel Sensor

513033538

$75.34

4

Grommet

293720058

$10.67

5

Check Valve

513033842

$32.81

6

Grommet

513033596

$17.88

7

Polyurethane Hose 10000Mm Long

219704410

$52.96

8

Tie-Rap 180 mm

414115200

$0.10

9

Clip

414227300

$1.40

10

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

11

Norma Spring Clamp

513033010

$8.42

12

Polyurethane Hose 1000Mm Long

219704391

Unavailable

13

Grommet

280000674

$4.28

14

Male Connector

414872700

Unavailable

15

Grommet

513033435

$4.28

16

Crimp Clamp

293650053

$2.78

17

Molded Hose - 3/8 I.D.

513033626

$12.36

18

Tubing 16 Mm 1000Mm Long

219704408

$7.15

19

Fuel Pump

403901813

$84.99

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

21

Spring Clamp

414415200

$0.81

22

Formed Hose

513033553

$23.10

23

Tubing 16 Mm 1000Mm Long

219704408

$7.15

24

Universal Spring Clamp

513033029

$4.96

25

Hose 3000Mm Long

219704612

$77.58

26

Hose 3000Mm Long

219704612

$77.58

27

Tubing 16 Mm 1000Mm Long

219704408

$7.15

28

Tubing 16 Mm 1000Mm Long

219704408

$7.15

29

Universal Spring Clamp

513033029

$4.96
