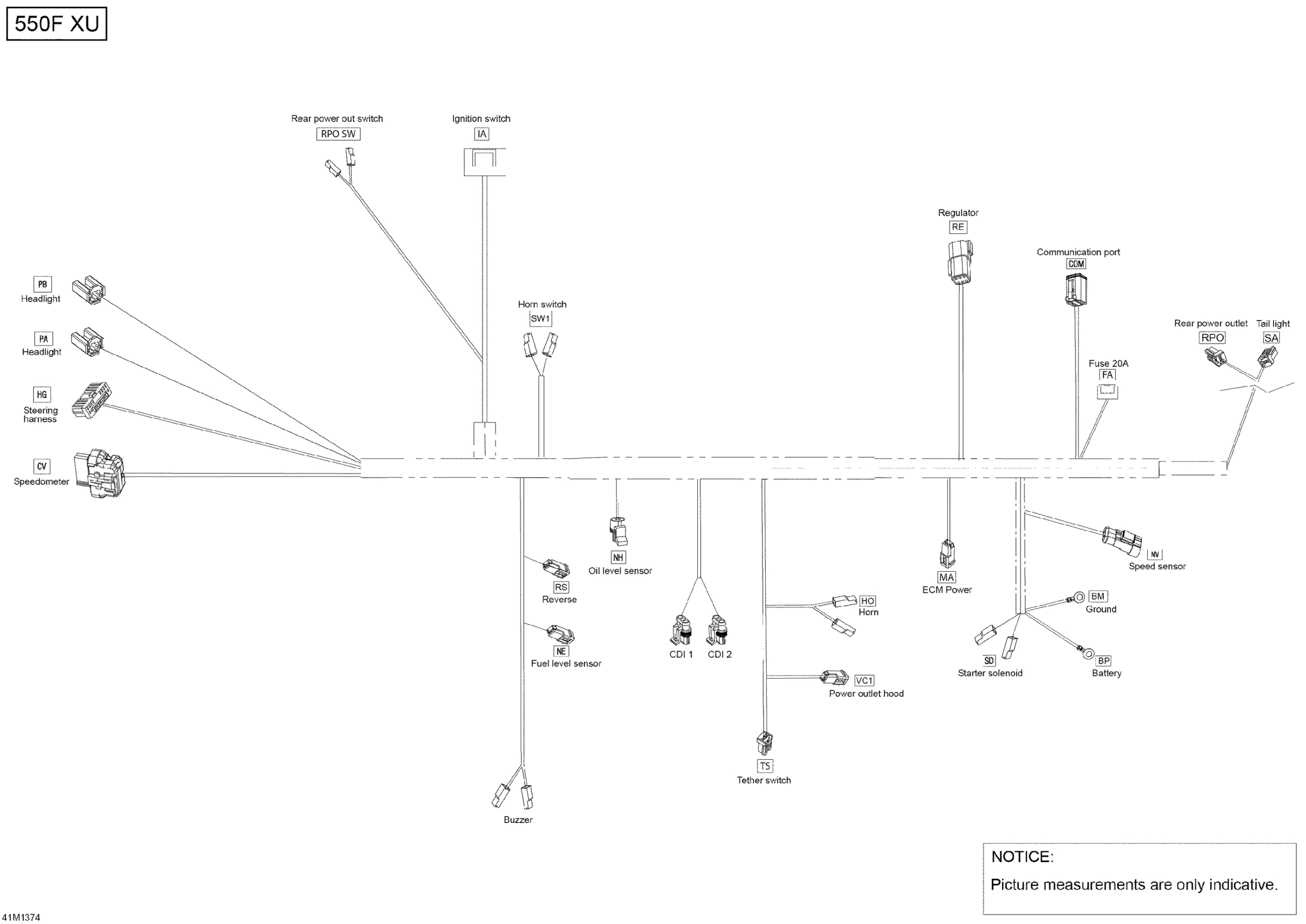

Ski-Doo Skandic WT 550F XU, 2013 Electrical Harness Diagram

#

Description
Price

1

FRAME HARNESS - Call your local BRP dealership | Includes 1 to VC

515177074

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

258

Tubing 10 MM 1000MM Long

219704407

$2.79

BM

Open Barrel

278000992

$2.21

BP

Open Barrel

278000992

$2.21

BUZZER

Female Terminal

409010100

$5.61

BUZZER

Female Terminal Housing, 1 Circuit

409010400

$7.62

CDI 1

Female Housing, 4 Circuits

409209700

$16.18

CDI 1

Wire Seal

515176621

$7.49

CDI 1

Female Terminal

710001340

$5.89

CDI 2

Female Housing, 3 Circuits

409209600

$35.99

CDI 2

Wire Seal

278001013

$3.28

CDI 2

Female Terminal

278001014

$3.28

COM

Female Terminal

278000632

$2.09

COM

Sealing Cap

293000052

$3.19

COM

Male Housing, 6 Circuits

515175673

$15.49

COM

Male Wedge, 6 Circuits

515175678

$5.39

CV

Plug

515175812

$2.19

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$2.99

CV

Female Terminal

515175806

$0.99

CV

Female Housing

710000399

$16.49

CV

Female Terminal

710001131

$8.89

FA

Female Terminal

409004200

$4.55

FA

Fuse Holder

409004000

$8.09

FA

Not Available As Spare Part - Friction Washer

Unavailable

FA

Clip

710000992

$4.29

HG

Female Terminal

515175231

$4.39

HG

Female Terminal

515175282

$7.86

HG

Not Available As Spare Part - Friction Washer

Unavailable

HO

Female Terminal

515175231

$4.39

HO

Female Housing, 2 Circuits

515175658

$16.18

IA

Female Terminal Housing, 4 Circuits

710000272

$10.99

IA

Lock, 4 Circuits

710000273

$9.59

IA

Female Terminal

710000274

$9.59

MA

Female Terminal Housing, 2 Circuits

515175670

$8.39

MA

Female Lock, 2 Circuits

515175675

$4.55

MA

Female Terminal

278000632

$2.09

NE

Male Terminal

515175232

$1.58

NE

Male Terminal Housing, 2 Circuits

515175654

$9.12

NH

Male Connector, 2 Circuits

278001113

$16.86

NH

Female Terminal

710001119

$5.39

NV

Housing

710000568

$11.12

NV

Male Terminal

515176164

$7.16

NV

Clip

710000992

$4.29

NV

Wire Seal

515176621

$7.49

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

RE

Female Housing, 3 Circuits

710000879

$25.99

RE

Cap

710000882

$11.49

RE

Seal

710000881

$17.99

RE

Female Terminal

710000877

$9.12

RPO

Male Housing, 3 Circuits

515175494

$16.18

RPO

Male Terminal

515175232

$1.58

RPO SW

Female Terminal

409010100

$5.61

RPO SW

Female Terminal Housing, 1 Circuit

409010400

$7.62

RS

Female Housing, 3 Circuits

409209600

$35.99

RS

Wire Seal

515176621

$7.49

RS

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

SA

Female Terminal

515175231

$4.39

SA

Female Housing, 3 Circuits

515175495

$16.18

SD

Female Terminal

409010100

$5.61

SD

Female Terminal Housing, 1 Circuit

409010400

$7.62

SD

Tie Wrap 94 mm | 4X4

293750001

$1.03

SW1

Female Terminal

409010100

$5.61

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.62

TS

Female Terminal

278000998

$4.39

TS

Male Housing, 2 Circuits

278001005

$19.49

TS

Seal

415128501

$1.89

VC1

Female Terminal

409010100

$5.61

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.62
