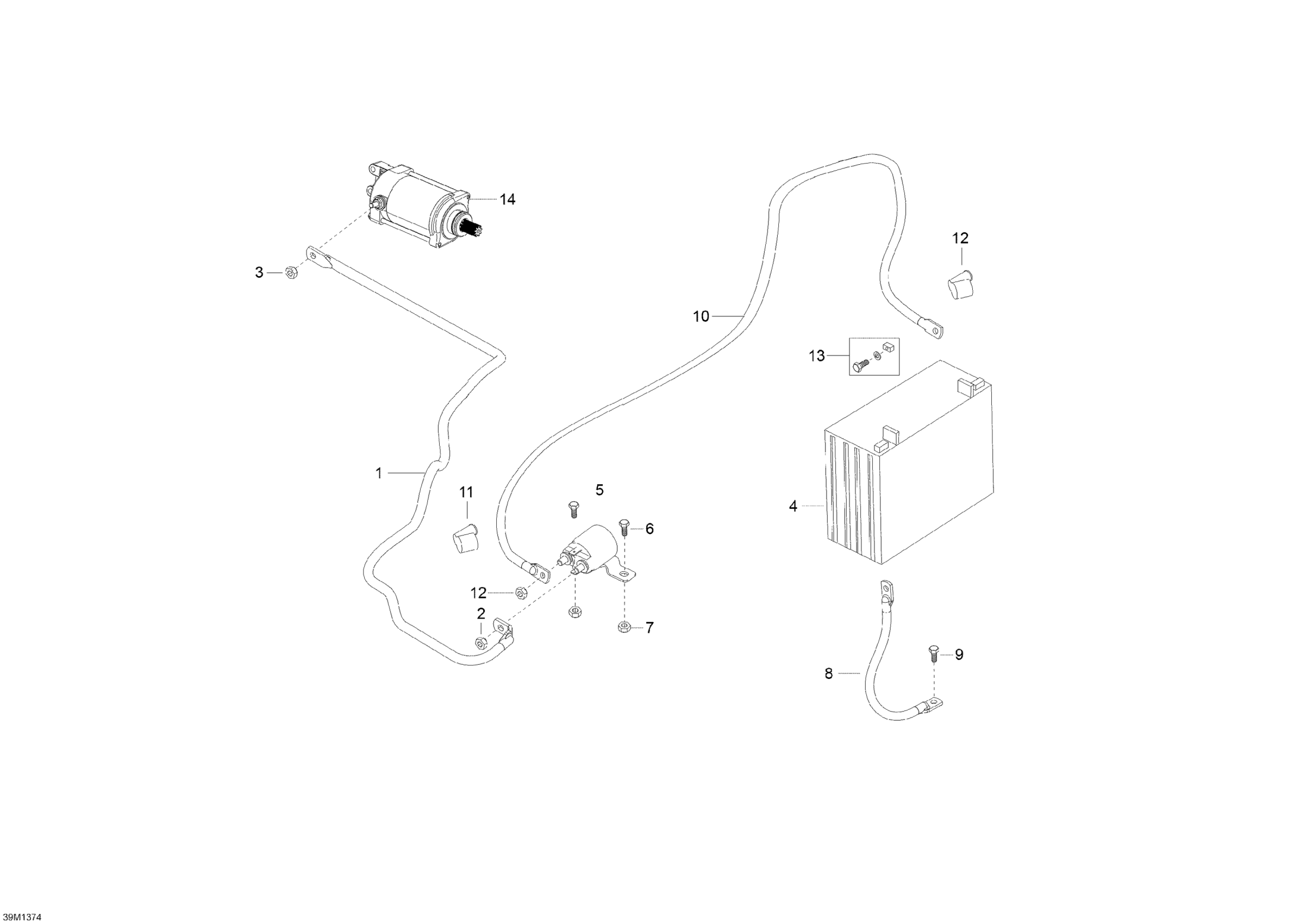

Ski-Doo Skandic WT 550F XU, 2013 Battery And Starter Diagram

#

Description

Price

1

BATTERY WIRE - Call your local BRP dealership | DELE

515175905

Unavailable

2

Elastic Stop Nut M6

232561434

$1.55

3

Elastic Stop Nut M6

232561434

$1.55

4

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

5

Starter Relay

515176011

$51.97

6

Hex. Flange Screw M6 X 16

207661644

$0.61

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Ground Wire

515176780

Unavailable

9

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

10

Battery Cable

515176967

Unavailable

11

Protector Cap

710000495

$10.14

12

Protector Cap

710000495

$10.14

13

Battery Bolt Kit

250000282

$2.95

14

Starter

515178473

$319.49
