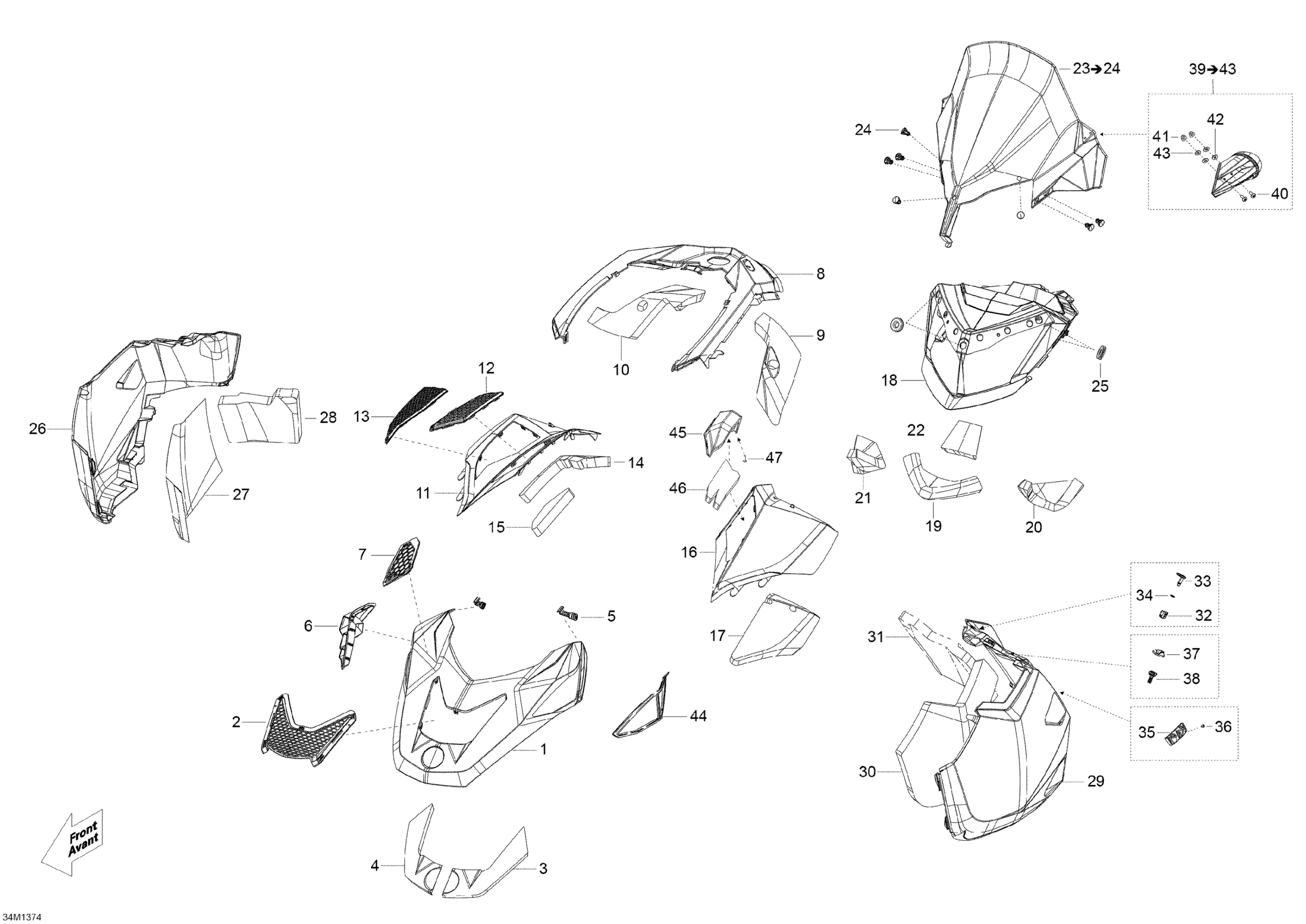

Ski-Doo Skandic WT 550F XU, 2013 Hood, Windshield And Console Diagram

#

Description
Price

1

Yellow Hood | Yellow 2000

517305523

$249.99

2

Hood Grille

517304843

$79.82

3

Insulator

517304330

$33.55

4

Insulator

517304214

$29.07

5

Latch Pannel

517304289

$9.61

6

Intake Grille

517306981

$26.09

7

Intake Grille

517304584

$26.09

8

Black, Console

517304820

$184.99

9

INSULATOR - Call your local BRP dealership

517304317

Unavailable

10

Insulator

517304318

$47.73

11

Yellow, RH Side Access Panel | Yellow 2000

517305525

$227.58

12

RH Access Panel Grille

517304015

$32.81

13

RH Lower Acces Grille

517304016

$28.33

14

Insulator

517304311

$61.16

15

Insulator

517304312

$29.07

16

Yellow, LH Side Access Panel | Yellow 2000

517305527

$227.58

17

Insulator

517304313

$61.16

18

Gauge Support

517304002

$195.49

19

Insulator

517304314

$61.91

20

Insulator

517304315

$29.07

21

Insulator

517304316

$29.07

22

Insulator

517304319

$29.07

23

Windshield Ass'y

860201000

$207.43

24

Button

517304744

$2.18

25

Grommet

517303756

$3.61

26

Black, RH Side Panel

517306977

$222.36

27

Foam Right

517304709

$52.96

28

RH Rear Foam

517304310

$60.42

29

Black, LH Side Panel

517306979

$222.36

30

Foam LH

517304707

$52.96

31

LH Rear Foam

517304309

$60.42

32

Handle Fastener Quarter-Turn

517304297

$14.18

33

Quarter-Turn Handle

517304296

$14.18

34

Locking Plate

517304538

$4.16

35

Side Panel Support | Except Package SWT

517304497

$17.88

36

Rivet

36005

$1.96

37

Black Latch Kit | Includes 390 to 400

860200239

$15.64

38

Latch-Panel

517306057

$22.36

39

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$69.37

40

Torx Truss Screw M6 X 16

250000721

$1.60

41

Domed Nut M6

232361493

$2.03

42

Rubber Washer 5 mm

250200024

$2.03

43

Washer

20117

$5.06

44

Air Filter

508000609

$44.75

45

Air Out Deflec

509000687

$26.84

46

Foam-In

509000831

Unavailable

47

Screw Plastofast Mp 6 X 16 Pz

293700048

$2.00
