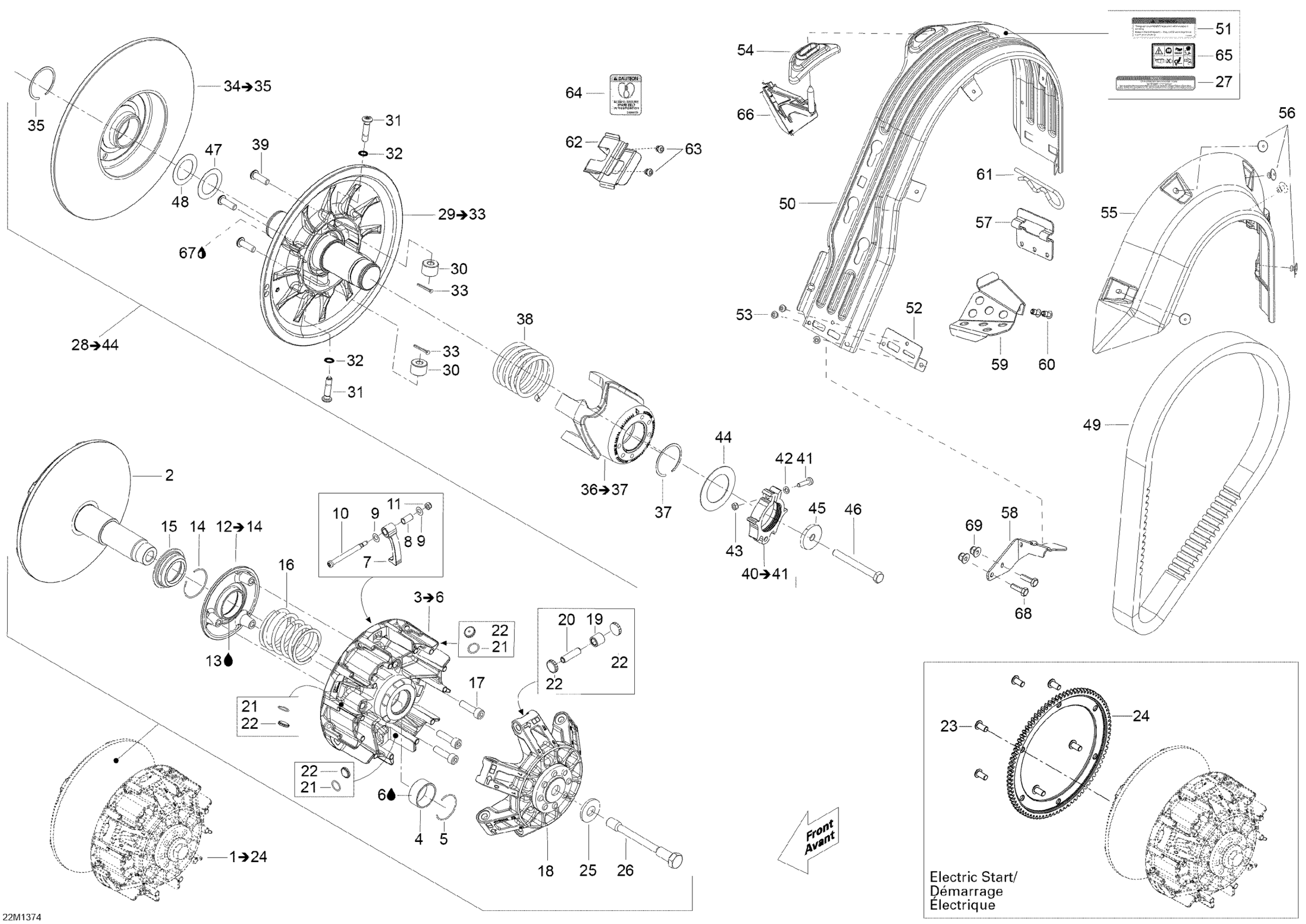

Ski-Doo Skandic WT 550F XU, 2013 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixe Flange Ass'y

417223534

$149.99

3

Slider Flange Ass'y

417223606

$144.99

4

Not Available As Spare Parts

XXX

Unavailable

5

Circlip

293370065

$0.98

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Ramp 700 Ass'y This part replaces 417223557.

417223604

$69.99

8

Not Available As Spare Parts

XXX

Unavailable

9

Thrust Washer

417223255

$2.00

10

Ramp Axle

417223694

$11.05

11

Elastic Stop Nut M5

232551414

$0.87

12

Slider Adaptor Ass'y

417223615

$79.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

CIRCLIP - Call your local BRP dealership

293370063

Unavailable

15

SPRING SEAT - Call your local BRP dealership

417223155

Unavailable

16

Spring Clutch

417223315

$38.99

17

SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership

250000473

Unavailable

18

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223778

Unavailable

19

Roller

417223767

$11.59

20

Roller Axle

417223257

$6.99

21

O-ring

293300145

$0.95

22

Slider Shoe

417223919

$6.83

23

Torx Screw M8 X 16

250000751

$6.11

24

Crown Gear Launch

417223476

$164.49

25

Spring Washer 14 mm

250200006

$6.99

26

DRIVE BOLT PULLEY - Call your local BRP dealership

417300407

Unavailable

27

Decal English

516005503

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Fixed Flange Ass'y

417127410

$399.99

30

Roller

417127189

$25.99

31

Pivot Stud

417127294

$14.49

32

Lock Washer 8 mm

250200009

$2.11

33

Spring Pin M3 X 18

250400061

$2.11

34

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

35

Circlip

293370049

$4.99

36

CAM ASS'Y - Call your local BRP dealership

417127385

Unavailable

37

Circlip

293370049

$4.99

38

Spring, White

417127243

$43.49

39

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

40

Calibration Ass'y

415129604

$21.49

41

Socket Screw M5 X 25

205052544

$1.68

42

Flat Washer M5

234051410

$0.53

43

Elastic Stop Nut M5

232551414

$0.87

44

Washer

417127155

$8.26

45

Strength Washer

517302322

$12.63

46

Hex. Cap Screw M8 X 75

207287544

$5.18

47

Spacer

417300265

$2.29

48

Shim

504112000

$8.59

49

Drive Belt

414860700

$104.99

50

Belt Guard

417300382

$90.99

51

Security label, Belt Guard

516004649

Unavailable

52

Reinforcement

417300380

$7.29

53

Avex Rivet

390909200

$0.30

54

Guide

417300381

$11.99

55

Side Protector

417300356

$14.76

56

Pop Rivet 3/16"

293150103

$0.55

57

Belt Guard Bracket | Except Package SWT

417300363

$14.49

58

BELT GUARD BRACKET - Call your local BRP dealership

417300451

$31.99

59

Brake Hose Cover | Except Package SWT

518325626

$29.99

60

Rivet Hucklok

293150163

$2.99

61

Hair Pin

114045200

$11.11

62

Bracket

517281905

$18.49

63

Avex Rivet

390909100

$0.30

64

Belt Decal, English

516005511

Unavailable

65

Warning Decal | Europe

516003919

$8.09

66

Coils Support

512060924

$10.33

67

Not Available As Spare Part - Friction Washer

Unavailable

68

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
