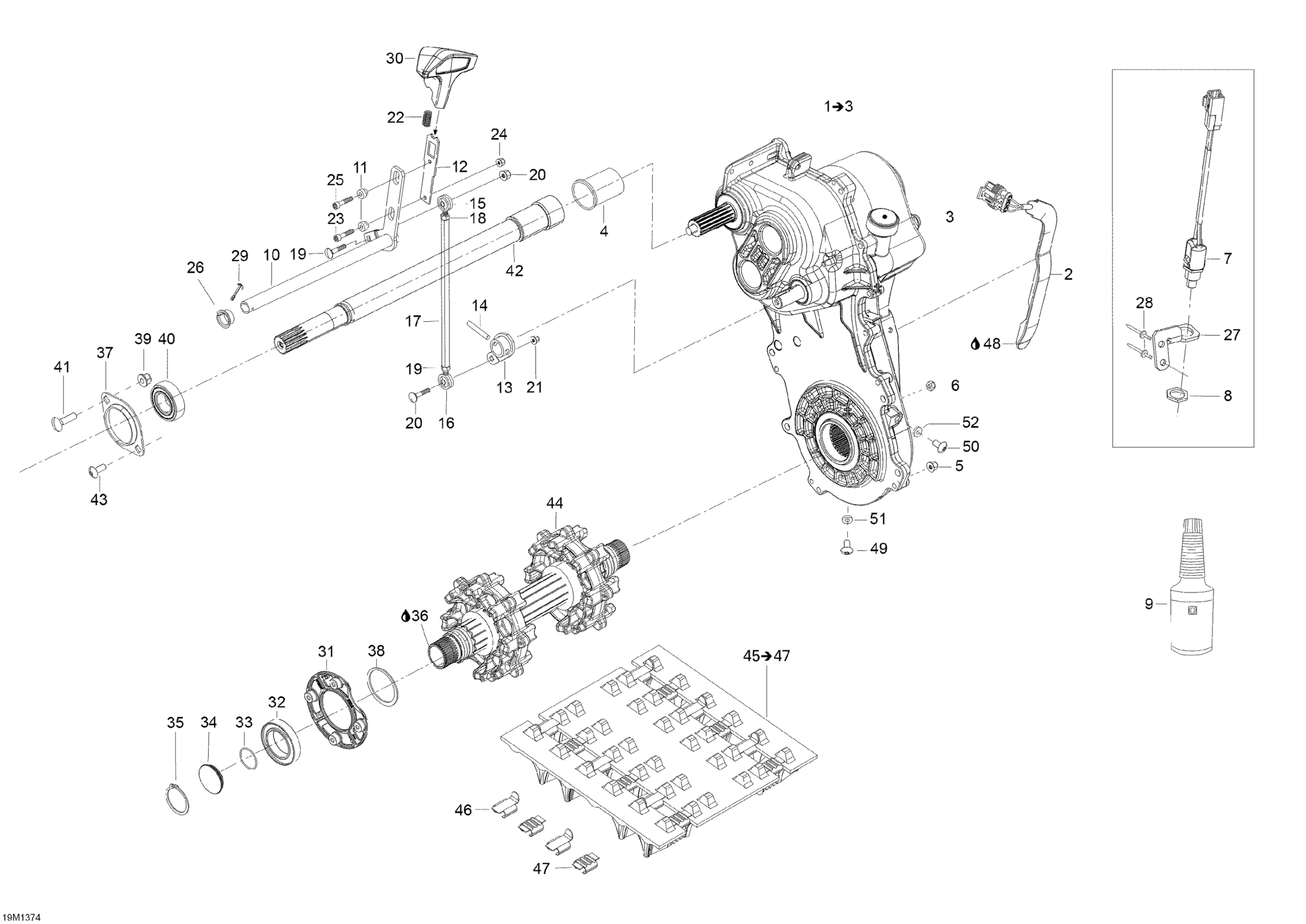

Ski-Doo Skandic WT 550F XU, 2013 05- Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2.00

1

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2.00

2

Rotation Sensor

504152896

$37.99

2

Rotation Sensor

504152896

$37.99

3

Oil Plug

619230027

$41.49

3

Oil Plug

619230027

$41.49

4

Protective Rubber

504153054

$17.49

4

Protective Rubber

504153054

$17.49

5

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Hex. Elastic Stop Nut M8

232581414

$0.56

7

Switch Ass'y

515176472

$72.99

7

Switch Ass'y

515176472

$72.99

8

Brass Nut

250000373

$7.51

8

Brass Nut

250000373

$7.51

9

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

293600140

Unavailable

9

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

293600140

Unavailable

10

Lever Shifter

504153288

$154.99

10

Lever Shifter

504153288

$154.99

11

Sleeve

504152787

$28.49

11

Sleeve

504152787

$28.49

12

Shifter Arm

504153287

$51.99

12

Shifter Arm

504153287

$51.99

13

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

13

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

14

Pin

41012

$6.39

14

Pin

41012

$6.39

15

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

15

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

16

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

16

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

17

ROD - Call your local BRP dealership

504152836

Unavailable

17

ROD - Call your local BRP dealership

504152836

Unavailable

18

Hex. Nut M6

232061414

$0.53

18

Hex. Nut M6

232061414

$0.53

19

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

19

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

20

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

20

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

21

Elastic Stop Nut M6

232561434

$1.99

21

Elastic Stop Nut M6

232561434

$1.99

22

Spring

504152882

$38.99

22

Spring

504152882

$38.99

23

Socket Screw M5 X 25

205052544

$1.68

23

Socket Screw M5 X 25

205052544

$1.68

24

Flange Elastic Nut M5

233251434

$2.00

24

Flange Elastic Nut M5

233251434

$2.00

25

Forming Screw M5 x 16

250000676

$1.01

25

Forming Screw M5 x 16

250000676

$1.01

26

Bushing

504152890

$42.49

26

Bushing

504152890

$42.49

27

Sensor Bracket

504152902

$17.99

27

Sensor Bracket

504152902

$17.99

28

Rivet Hucklok

293150163

$2.99

28

Rivet Hucklok

293150163

$2.99

29

Cotter Pin

250400035

$2.11

29

Cotter Pin

250400035

$2.11

30

Handle

504152837

$80.99

30

Handle

504152837

$80.99

31

Retaining Ring

504153886

$21.99

31

Retaining Ring

504153886

$21.99

32

Ball Bearing

293350059

$30.99

32

Ball Bearing

293350059

$30.99

33

O-Ring

293300122

$2.11

33

O-Ring

293300122

$2.11

34

Magnetic Cap

504152619

$23.49

34

Magnetic Cap

504152619

$23.49

35

Circlip

504152572

$6.95

35

Circlip

504152572

$6.95

36

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

37

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

38

Shim

504153207

$12.49

38

Shim

504153207

$12.49

39

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Ball Bearing

293350074

$38.49

40

Ball Bearing

293350074

$38.49

41

Carriage Bolt M8 X 30

207783044

$2.11

41

Carriage Bolt M8 X 30

207783044

$2.11

42

Counter Shaft | Gear Box 2.30

504152963

$248.99

42

Counter Shaft | Gear Box 2.30

504152963

$248.99

43

Torx Truss Screw M8 X 16

250000746

$3.38

43

Torx Truss Screw M8 X 16

250000746

$3.38

44

AXLE-DRIVE ASSY - Call your local BRP dealership

504153106

Unavailable

44

AXLE-DRIVE ASSY - Call your local BRP dealership

504153106

Unavailable

45

Track | Includes 3200 to 3200b

605613004

$1.00

45

Track | Includes 3200 to 3200b

605613004

$1.00

46

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

46

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

48

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

49

Allen Screw M8 x 10

619230037

$6.03

49

Allen Screw M8 x 10

619230037

$6.03

50

Allen Screw M10 x 16

619230038

$4.02

50

Allen Screw M10 x 16

619230038

$4.02

51

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

51

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

52

Seal Ring

619230047

$4.02

52

Seal Ring

619230047

$4.02
