Description

Price

1

Secondary Chamber Ass'y

508000715

$204.99

2

Grommet

508000574

$8.59

3

Air Intake Filter

508000595

$41.49

4

Stopper

508000537

$7.79

5

Velcro Strip

508000820

$8.59

6

Adapter

508001021

$29.99

7

Caution Label, Air Intake

516004651

Unavailable

8

Air Filter

508000609

$48.49

9

Link

508000562

$10.99

10

Tube

508000406

$13.49

11

Primary Chamber Ass'y

508000680

$73.99

12

Notice Decal, Air Intake Silencer

516005876

$4.39

13

O-Ring

293300115

$3.77

14

ADAPTER PLATE - Call your local BRP dealership

508000564

Unavailable

15

Air Intake Adapter

508000594

$19.99

16

Gemi Clamp

508000369

$13.16

17

Insulated Foam

508000674

$14.49

18

Heat Shield

508000684

$2.19

19

Heat Shield

508000685

$5.59

20

REFLECTIVE SHEET - Call your local BRP dealership

M44110

Unavailable

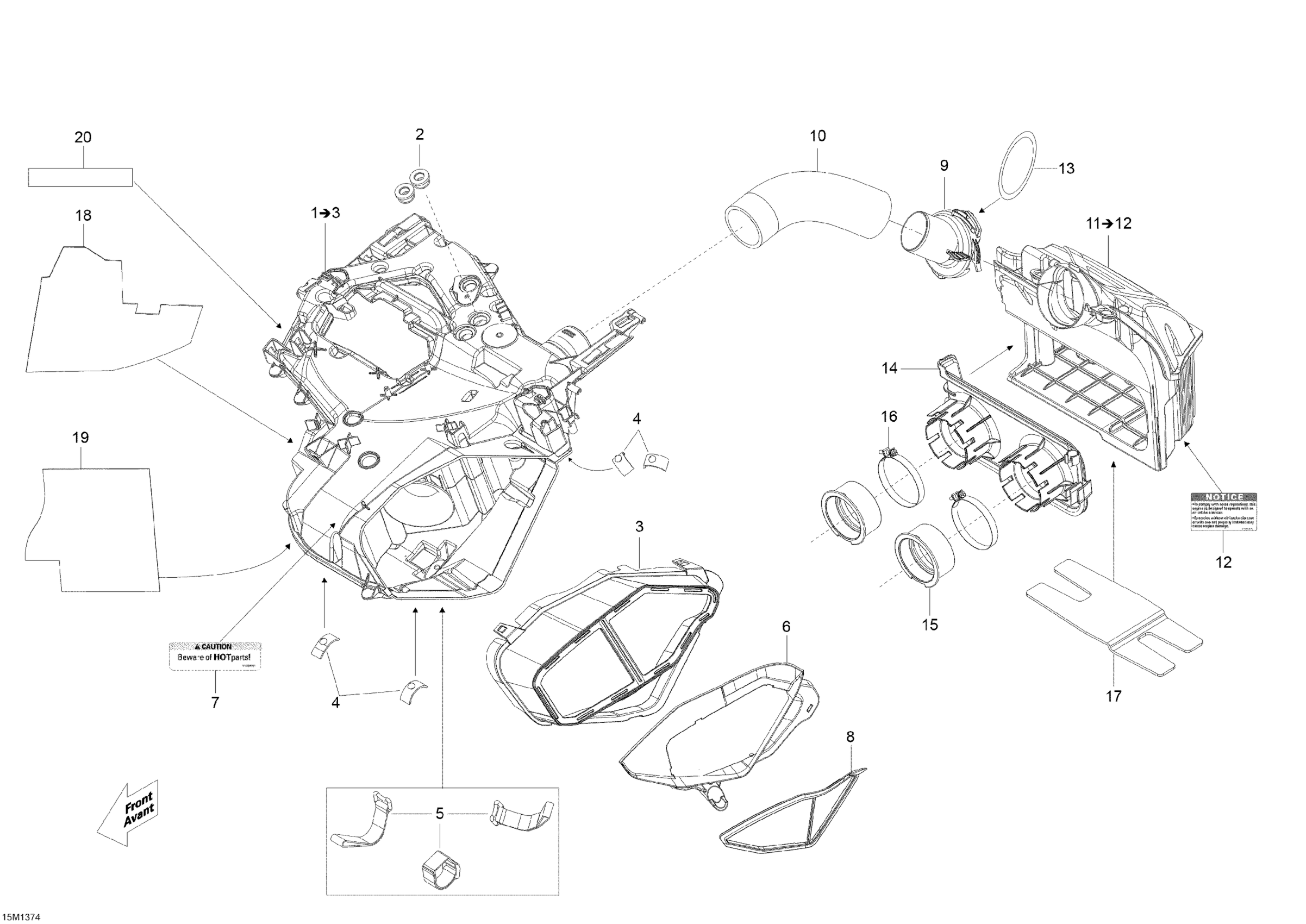

Ski-Doo Skandic WT 550F XU, 2013 02- Air Intake System Diagram

Secondary Chamber Ass'y

Grommet

Air Intake Filter

Stopper

Velcro Strip

Adapter

Caution Label, Air Intake

Air Filter

Link

Tube

Primary Chamber Ass'y

Notice Decal, Air Intake Silencer

O-Ring

ADAPTER PLATE - Call your local BRP dealership

Air Intake Adapter

Gemi Clamp

Insulated Foam

Heat Shield

Heat Shield

REFLECTIVE SHEET - Call your local BRP dealership
