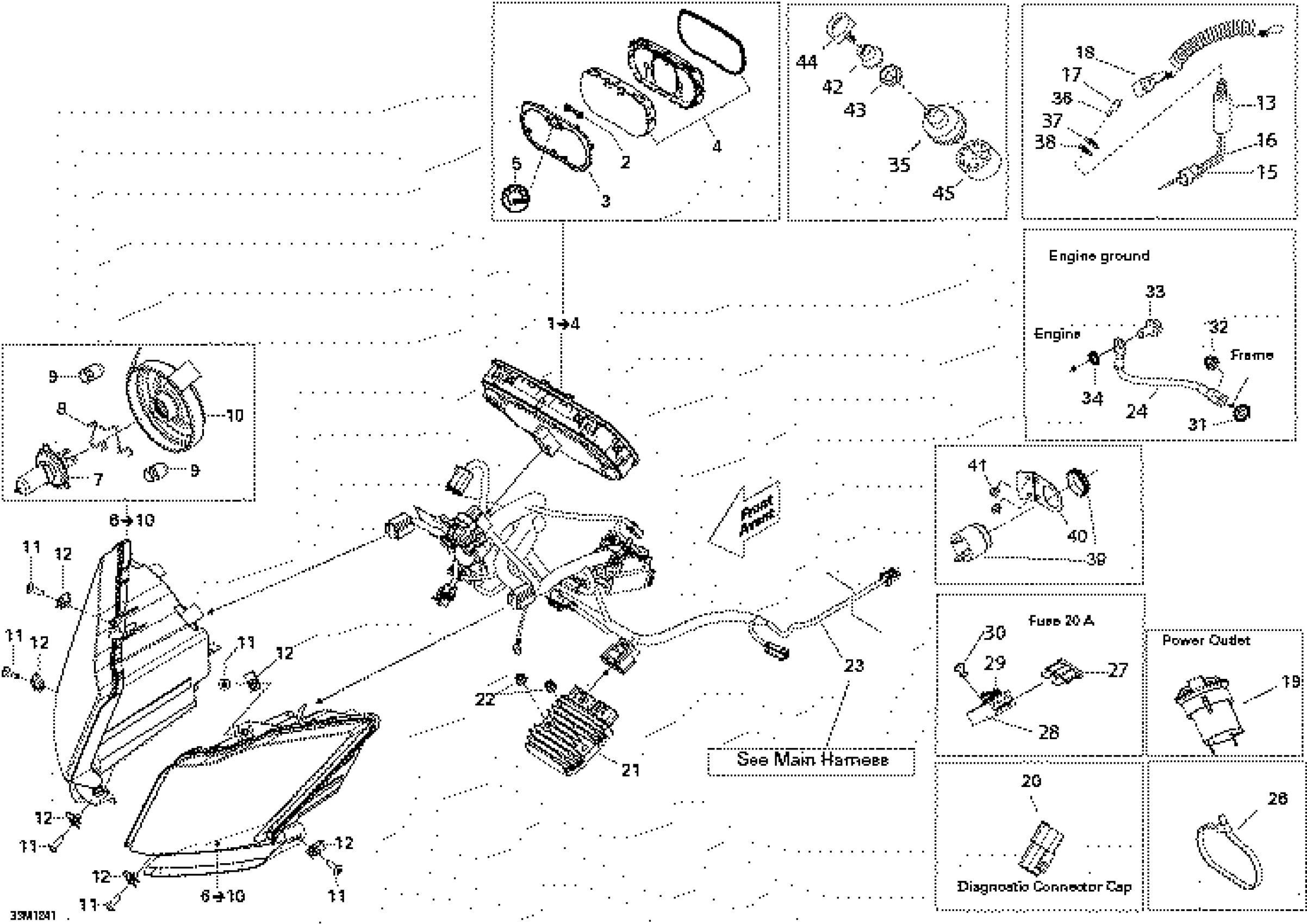

Ski-Doo Skandic WT 550F XU, 2012 10- Electrical System Diagram

#

Description
Price

1

Indicator | Includes 10 to 10c

515177279

$569.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

$12.99

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

Brake Switch

515175653

$19.49

15

Plunger Cap

570151100

$9.85

16

Tubing 12 mm

409902000

Unavailable

17

Switch Nut

515145900

$12.12

18

Cap Ass'y

515178283

$38.99

19

DC Outlet

710001248

$37.99

20

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

21

Voltage Regulator

515176699

$153.49

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

FRAME HARNESS - Call your local BRP dealership | Includes 1 to VC

515177074

Unavailable

24

Ground Wire

515176745

$28.99

26

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

Tie Wrap 142 mm

293750002

$1.25

26

Tie-Rap 180 mm

414115200

$0.11

26

Tie Wrap 368 mm

293750008

$1.04

27

Fuse, 20 Amperes

409003900

$3.28

28

Lock

515176681

$20.99

29

Clip

270000141

$11.49

30

Avdel Rivet 3/16"

293150037

$0.56

31

Lock Washer Serrated M6

250200041

$1.15

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

34

Serrated Lock Washer 8 mm

234481608

$1.15

35

Ignition Swirch

515177063

$50.99

36

Plunger Cap

570151100

$9.85

37

Flat Washer

250200084

$3.38

38

RH Threaded Hex. Jam Nut M10

732610010

$0.74

39

Back-Up Alarm

414792102

$149.99

40

REVERSE BUZZ HOLDER - Call your local BRP dealership

515176822

$14.99

41

Screw M4 X 16

250000725

$3.49

42

Plunger Cap

570151100

$9.85

43

FACE NUT - Call your local BRP dealership

410112100

Unavailable

44

Blank Key

415129350

$26.49

45

Switch Boot

570013700

$11.49
