Description

Price

1

Main Harness Ass'y

515177075

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

258

Tubing 10 MM 1000MM Long

219704407

$2.79

966

Not Available As Spare Part - Friction Washer

Unavailable

AT

Wire Seal

710001163

$7.69

AT

Female Terminal

710001164

$8.89

AT

Female Terminal Housing

515176890

$12.99

BM

Open Barrel

278000992

$2.21

BP

Open Barrel

278000992

$2.21

BUZZER

Female Terminal

409010100

$5.61

BUZZER

Female Terminal Housing, 1 Circuit

409010400

$7.62

CD

Female Terminal

515175567

$7.69

CD

Female Terminal Housing, 2 Circuits

278001673

$23.49

CD

Female Lock, 2 Circuits

278001671

$3.58

CDI 1

Female Housing, 4 Circuits

409209700

$16.18

CDI 1

Wire Seal

515176621

$7.49

CDI 1

Female Terminal

710001340

$5.89

CDI 2

Female Housing, 3 Circuits

409209600

$35.99

CDI 2

Wire Seal

278001013

$3.28

CDI 2

Female Terminal

278001014

$3.28

CM

Female Housing, 3 Circuits

409209600

$35.99

CM

Tie Wrap 142 mm

293750002

$1.25

CM

Wire Seal

515176621

$7.49

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

COM

Female Terminal

278000632

$2.09

COM

Sealing Cap

293000052

$3.19

COM

Male Housing, 6 Circuits

515175673

$15.49

COM

Male Wedge, 6 Circuits

515175678

$5.39

CP

Male Terminal

278000631

$4.39

CP

Male Lock, 2 Circuits

409207500

$3.19

CP

Male Terminal Housing, 2 Circuits

515175665

$9.29

CV

Plug

515175812

$2.19

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$2.99

CV

Female Terminal

515175806

$0.99

CV

Female Housing

710000399

$16.49

CV

Female Terminal

710001131

$8.89

D1

Diode

409012700

$11.12

DM

Female Terminal

515175231

$4.39

DM

Female Housing, 2 Circuits

515175658

$16.18

DS

Female Terminal

515175231

$4.39

DS

Female Housing, 3 Circuits

515175495

$16.18

DT

Female Terminal

278000998

$4.39

DT

Male Housing, 2 Circuits

278001005

$19.49

DT

Seal

415128501

$1.89

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Molex Housing, 48 Circuits

710001967

$142.99

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001590

$2.09

EI

Male Terminal

278000631

$4.39

EI

Male Lock, 2 Circuits

409207500

$3.19

EI

Male Terminal Housing, 2 Circuits

515175665

$9.29

ER

Female Terminal

278000998

$4.39

ER

Female Terminal Housing, 2 Circuits

415128500

$7.62

ER

Seal

415128501

$1.89

ERF

Housing

710000568

$11.12

ERF

Male Terminal

515176164

$7.16

ERF

Wire Seal

515176621

$7.49

F

Little Fuse, 5 Amperes

710000742

$8.79

F

Little Fuse, 7.5 Amperes

710000743

$8.49

F

Little Fuse, 10 Amperes

710000744

$8.79

F

Little Fuse, 15 Ampere

710000745

$8.49

F

Little Fuse, 20 Amperes

710000746

$8.49

F

Little Fuse, 30 Amperes

710000747

$8.49

FA

Female Terminal

409004200

$4.55

FA

Fuse Holder

409004000

$8.09

FA

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FA

Clip

710000992

$4.29

FAN

Housing

710000568

$11.12

FAN

Male Terminal

515176164

$7.16

FAN

Wire Seal

515176621

$7.49

FB

Female Terminal

409011600

$5.39

FB

Female Terminal

409004200

$4.55

FB

Fuse Holder

409004000

$8.09

FB

Fuse, 5 Amperes | CE

278000344

$3.28

FB

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FB

Clip

710000992

$4.29

HIC

Male Connector, 4 Circuits | CE

278000739

$19.49

HIC

Male Lock, 4 Circuits | CE

278000738

$3.09

HIC

Sealing Cap

293000052

$3.19

HIC

Female Terminal

278001665

$4.55

HG

Female Terminal

515175231

$4.39

HG

Female Terminal

515175282

$7.86

HG

Not Available As Spare Part - Friction Washer

Unavailable

HO

Female Terminal

515175231

$4.39

HO

Female Housing, 2 Circuits

515175658

$16.18

IA

Female Terminal Housing, 4 Circuits

710000272

$10.99

IA

Lock, 4 Circuits

710000273

$9.59

IA

Female Terminal

710000274

$9.59

IGM

Female Terminal

278001014

$3.28

IGM

Female Housing, 3 Circuits

409209600

$35.99

IGM

Wire Seal

278001013

$3.28

IGP

Female Terminal

278001014

$3.28

IGP

Female Housing, 3 Circuits

409209600

$35.99

IGP

Wire Seal

278001013

$3.28

INM

Female Terminal

278001014

$3.28

INM

Female Housing, 2 Circuits

409209500

$15.27

INM

Wire Seal

278001013

$3.28

INM

Tie Wrap 94 mm | 4X4

293750001

$1.03

INM

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

INP

Female Terminal

278001014

$3.28

INP

Female Housing, 2 Circuits

409209500

$15.27

INP

Wire Seal

278001013

$3.28

INP

Tie Wrap 94 mm | 4X4

293750001

$1.03

INP

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

J1A

Female Terminal Housing, 34 Circuits

515176342

$21.99

J1A

Plug

515176345

$21.99

J1A

Female Terminal

515176348

$6.99

J1A

Female Terminal

515176541

$4.55

J1B

Female Terminal Housing, 26 Circuits

515176341

$29.49

J1B

Plug

515176345

$21.99

J1B

Female Terminal

515176348

$6.99

J1B

Female Terminal

515176541

$4.55

J2

Female Terminal

278000998

$4.39

J2

Female Terminal Housing, 16 Circuits

515176340

$15.80

J2

Seal

415128501

$1.89

MA

Female Terminal Housing, 2 Circuits

515175670

$8.39

MA

Female Lock, 2 Circuits

515175675

$4.55

MA

Female Terminal

278000632

$2.09

MO

Male Terminal

278000631

$4.39

MO

Female Lock, 6 Circuits

278000735

$3.19

MO

Male Terminal Housing, 6 Circuits

515175668

$16.49

NE

Male Terminal

515175232

$1.58

NE

Male Terminal Housing, 2 Circuits

515175654

$9.12

NH

Male Connector, 2 Circuits

278001113

$16.86

NH

Female Terminal

710001119

$5.39

NV

Housing

710000568

$11.12

NV

Male Terminal

515176164

$7.16

NV

Clip

710000992

$4.29

NV

Wire Seal

515176621

$7.49

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

PE

Female Terminal

278001014

$3.28

PE

Female Housing, 2 Circuits

409209500

$15.27

PE

Wire Seal

278001013

$3.28

PF

Fuse Puller

710000781

$8.09

PF

Fuse Cover

710001026

$21.99

PF

Foam

278002172

$5.89

PF

Fuse Box Base Ass´y

415129856

$50.99

PH

Female Terminal

278001114

$3.19

PH

Male Connector, 2 Circuits

278001113

$16.86

R

Relay, 50 AMP

515176775

$15.79

R

Relay, 30 AMP

515176774

$21.99

R2

Female Housing, 5 Circuits

409209900

$9.59

R2

Female Terminal

561503100

$2.41

R2

Female Terminal

561503100

$2.41

R2

Tie Wrap 142 mm

293750002

$1.25

RE

Female Housing, 3 Circuits

710000879

$25.99

RE

Cap

710000882

$11.49

RE

Seal

710000881

$17.99

RE

Female Terminal

710000877

$9.12

RPO

Male Housing, 3 Circuits

515175494

$16.18

RPO

Male Terminal

515175232

$1.58

RPO SW

Female Terminal

409010100

$5.61

RPO SW

Female Terminal Housing, 1 Circuit

409010400

$7.62

RS

Female Housing, 3 Circuits

409209600

$35.99

RS

Wire Seal

515176621

$7.49

RS

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

SA

Female Terminal

515175231

$4.39

SA

Female Housing, 3 Circuits

515175495

$16.18

SB

Housing

710000568

$11.12

SB

Male Terminal

515176164

$7.16

SB

Wire Seal

515176621

$7.49

SD

Female Terminal

409010100

$5.61

SD

Female Terminal Housing, 1 Circuit

409010400

$7.62

SD

Tie Wrap 94 mm | 4X4

293750001

$1.03

SW1

Female Terminal

409010100

$5.61

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.62

TP

Female Terminal

278000998

$4.39

TP

Male Housing, 3 Circuits

278000997

$19.49

TP

Seal

415128501

$1.89

TS

Female Terminal

278000998

$4.39

TS

Male Housing, 2 Circuits

278001005

$19.49

TS

Seal

415128501

$1.89

VC

Female Terminal

515175231

$4.39

VC

Female Housing, 2 Circuits

515175658

$16.18

VC1

Female Terminal

409010100

$5.61

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.62

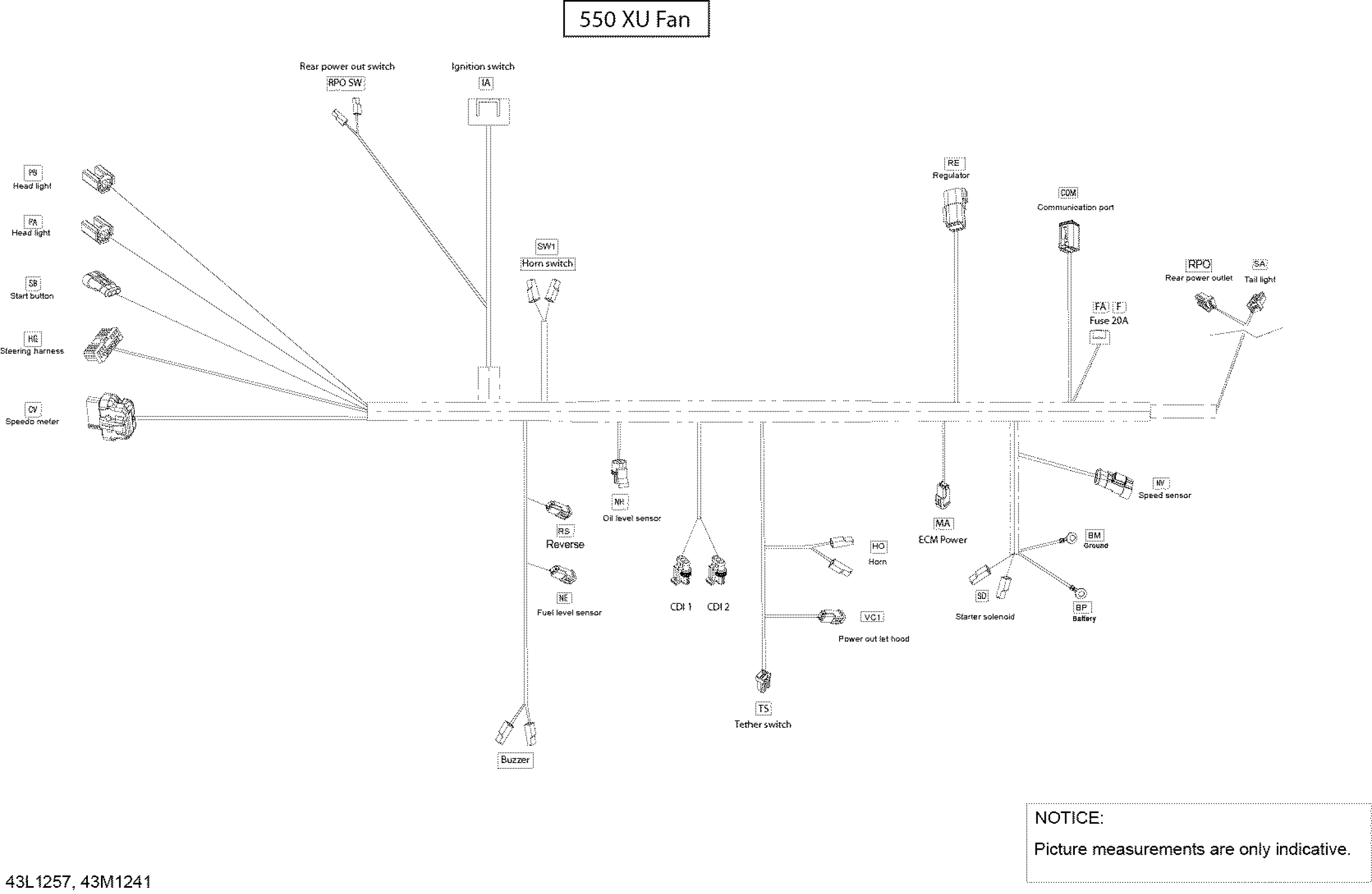

Ski-Doo Skandic WT 550F XU, 2012 10- Electrical Harness Diagram

Main Harness Ass'y

Not Available As Spare Part - Friction Washer

Tubing 12 mm

Tubing 6 Mm 3000Mm Long

Was 409901700 Tubing (9 mm)

Was 409901800 Tubing (13 mm)

Tubing 16 Mm 1000Mm Long

Was 409901600 Tubing 19mm

Tubing 10 MM 1000MM Long

Not Available As Spare Part - Friction Washer

Wire Seal

Female Terminal

Female Terminal Housing

Open Barrel

Open Barrel

Female Terminal

Female Terminal Housing, 1 Circuit

Female Terminal

Female Terminal Housing, 2 Circuits

Female Lock, 2 Circuits

Female Housing, 4 Circuits

Wire Seal

Female Terminal

Female Housing, 3 Circuits

Wire Seal

Female Terminal

Female Housing, 3 Circuits

Tie Wrap 142 mm

Wire Seal

FEMALE TERMINAL - Call your local BRP dealership

Female Terminal

Sealing Cap

Male Housing, 6 Circuits

Male Wedge, 6 Circuits

Male Terminal

Male Lock, 2 Circuits

Male Terminal Housing, 2 Circuits

Plug

Female Housing, 24 Circuits

Retainer Block

Wire Seal

Female Terminal

Female Housing

Female Terminal

Diode

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Female Housing, 3 Circuits

Female Terminal

Male Housing, 2 Circuits

Seal

Cover, 48 positions

Molex Housing, 48 Circuits

Plug

Plug

Female Terminal

Female Terminal

Male Terminal

Male Lock, 2 Circuits

Male Terminal Housing, 2 Circuits

Female Terminal

Female Terminal Housing, 2 Circuits

Seal

Housing

Male Terminal

Wire Seal

Little Fuse, 5 Amperes

Little Fuse, 7.5 Amperes

Little Fuse, 10 Amperes

Little Fuse, 15 Ampere

Little Fuse, 20 Amperes

Little Fuse, 30 Amperes

Female Terminal

Fuse Holder

Was 293550004 Dielectric Grease, 150 g

Clip

Housing

Male Terminal
