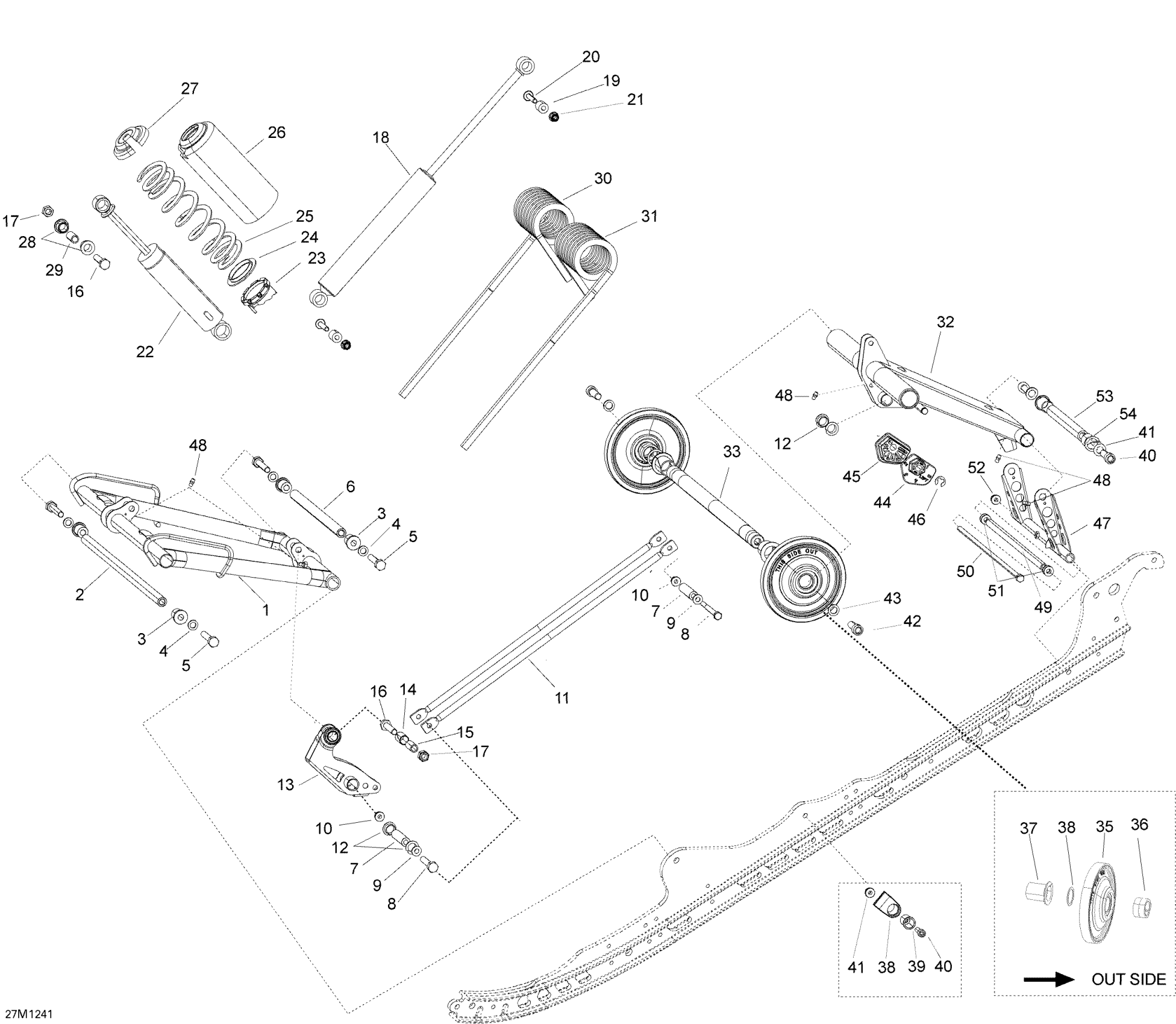

Ski-Doo Skandic WT 550F XU, 2012 08- Front Arm Diagram

#

Description
Price

1

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$222.49

2

Upper Shaft

503191391

$36.99

3

Bushing

503189324

$14.15

4

Washer

503189564

$0.74

5

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

6

Lower Shaft

503191390

$28.99

7

Axle Bar (Long)

503190643

$17.39

8

Hex. Screw M8 X 90

207089044

$3.48

9

Washer

503189157

$3.28

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Link Rod

503191765

$18.49

12

Swivel Bushing

503191555

$7.83

13

Rocker

503192211

$83.99

14

Bushing

503193037

$16.18

15

Bushing | Includes 240d to 240d1

503189282

$4.34

16

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

17

Elastic Locking Nut M10 X 1.5

233601416

$1.69

18

Rear Shock

503193520

$248.99

19

Bushing

414936000

$13.99

20

Hex. Flange Screw M8 X 40

207684044

$1.48

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Center Shock

503192266

$164.49

23

Adjustment Cam

505073625

$12.99

24

Spring Guide

503191872

$2.29

25

Black, Spring 242MM

503191880

$67.99

26

Protector

503193663

$37.99

27

Spring Stopper

706200881

$12.99

28

Urethane Bushing

503189117

$8.19

29

Bushing | Includes 240d to 240d1

503189282

$4.34

30

Black RH Square Spring

503192377

$111.49

31

Black LH Square Spring

503192378

$111.49

32

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

33

Upper Shaft

503191405

$94.99

34

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

35

Retaining Ring

503191099

$8.29

36

Cushion

503191451

$14.15

37

Washer

503190328

$12.65

38

Spring Support Kit

861805547

$10.49

39

Spring Support Kit

861805547

$10.49

40

Socket Head Screw M8 X 25

205082544

$1.15

41

Hex. Flange Elastic Nut M8

233281414

$1.47

42

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

43

Washer

503189276

$3.28

44

LH Cam Adjuster

503191565

$16.49

45

RH Cam Adjuster

503191566

$16.49

46

E-Circlip

293370013

$0.65

47

Pivot Arm | Includes 3000j to 3000j3

503195154

$104.99

48

Grease Fitting

408200700

$3.49

49

Axle Pivot

503191396

$80.49

50

Bolt 369MM

503195156

$25.99

51

Washer

503189157

$3.28

52

Hex. Flange Elastic Nut M8

233281414

$1.47

53

Lower Shaft

503192330

$45.99

54

Cushion

503191640

$5.93
