Description

Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$319.99

2

Lever With Parking Lock

507032476

$99.99

3

Clamp And Screw Kit

507032477

$23.99

4

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

5

Pin Ass'y

415030000

$19.99

7

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

8

Microswitch | Grand Touring

507032479

$99.49

9

Male Terminal

515175232

$1.58

10

Banjo Bolt

705600628

$11.63

11

Copper Washer

705601628

$4.44

12

Brake Caliper | Includes 200 to 200c

507032720

$349.49

13

Brake Pads Kit

507032489

$79.49

14

Brake Spring Kit

507032722

$37.99

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

18

Banjo Bolt

705600628

$11.63

19

Copper Washer

705601628

$4.44

20

Disk

507032513

$243.99

22

O-Ring

293300134

$2.32

23

Disk Protector

507032525

$65.99

24

Torx Screw M6 X 16

250000365

$2.11

25

Clamp

293650256

$5.49

26

BRAKE HOSE - Call your local BRP dealership This part replaces 507032494.

507032534

Unavailable

27

Was 409901800 Tubing (13 mm)

219704400

$14.49

28

Open Clamp

414176000

$1.99

29

Hex. Flange Screw M6 X 12

210261250

$1.90

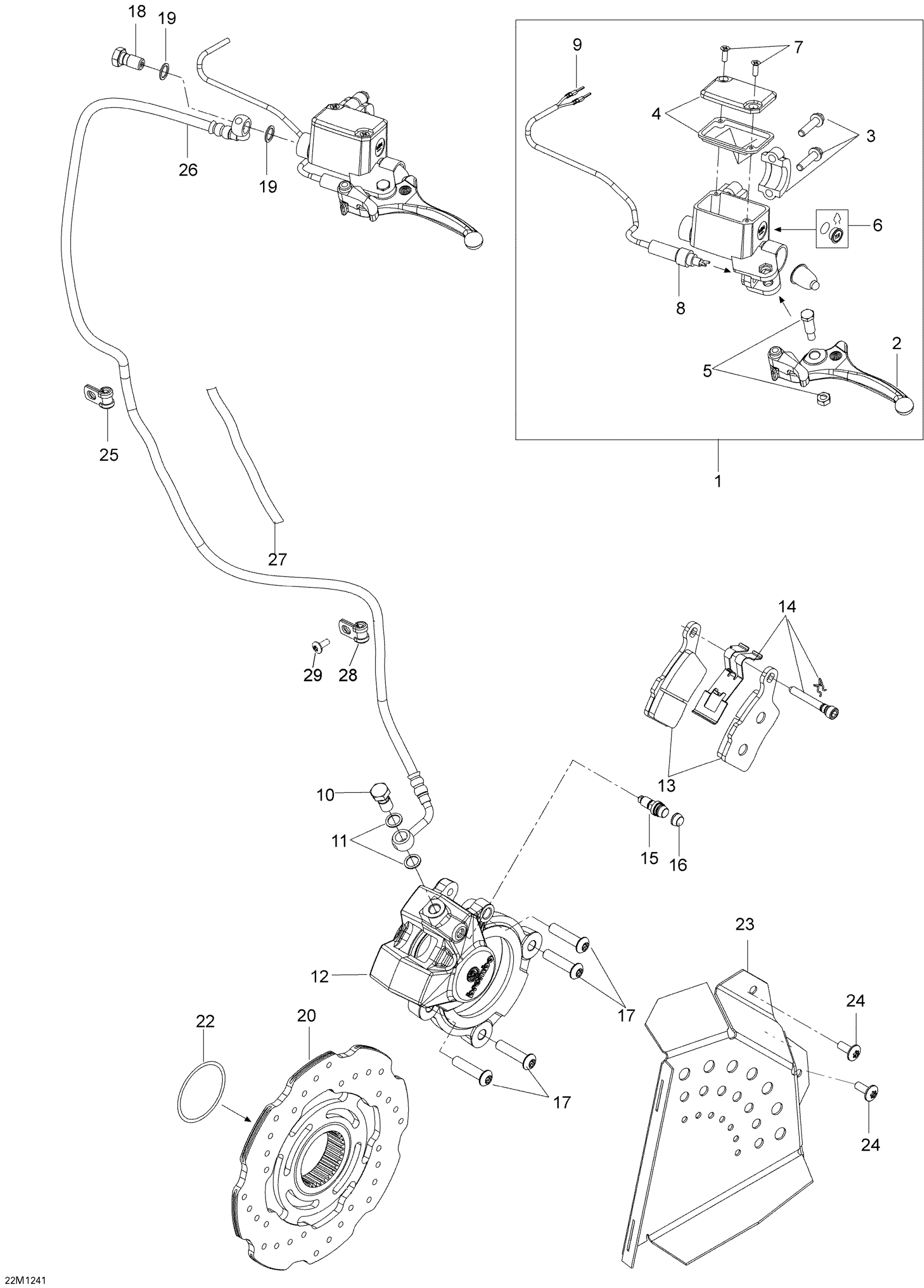

Ski-Doo Skandic WT 550F XU, 2012 Hydraulic Brakes Diagram

Master Cylinder Ass'y | Includes 10 to 10h

Lever With Parking Lock

Clamp And Screw Kit

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

Pin Ass'y

SCREW M4 X 12 - Call your local BRP dealership

Microswitch | Grand Touring

Male Terminal

Banjo Bolt

Copper Washer

Brake Caliper | Includes 200 to 200c

Brake Pads Kit

Brake Spring Kit

Hex. Button Head Screw M8 X 1.25 X 35

Banjo Bolt

Copper Washer

Disk

O-Ring

Disk Protector

Torx Screw M6 X 16

Clamp

BRAKE HOSE - Call your local BRP dealership This part replaces 507032494.

Was 409901800 Tubing (13 mm)

Open Clamp

Hex. Flange Screw M6 X 12
