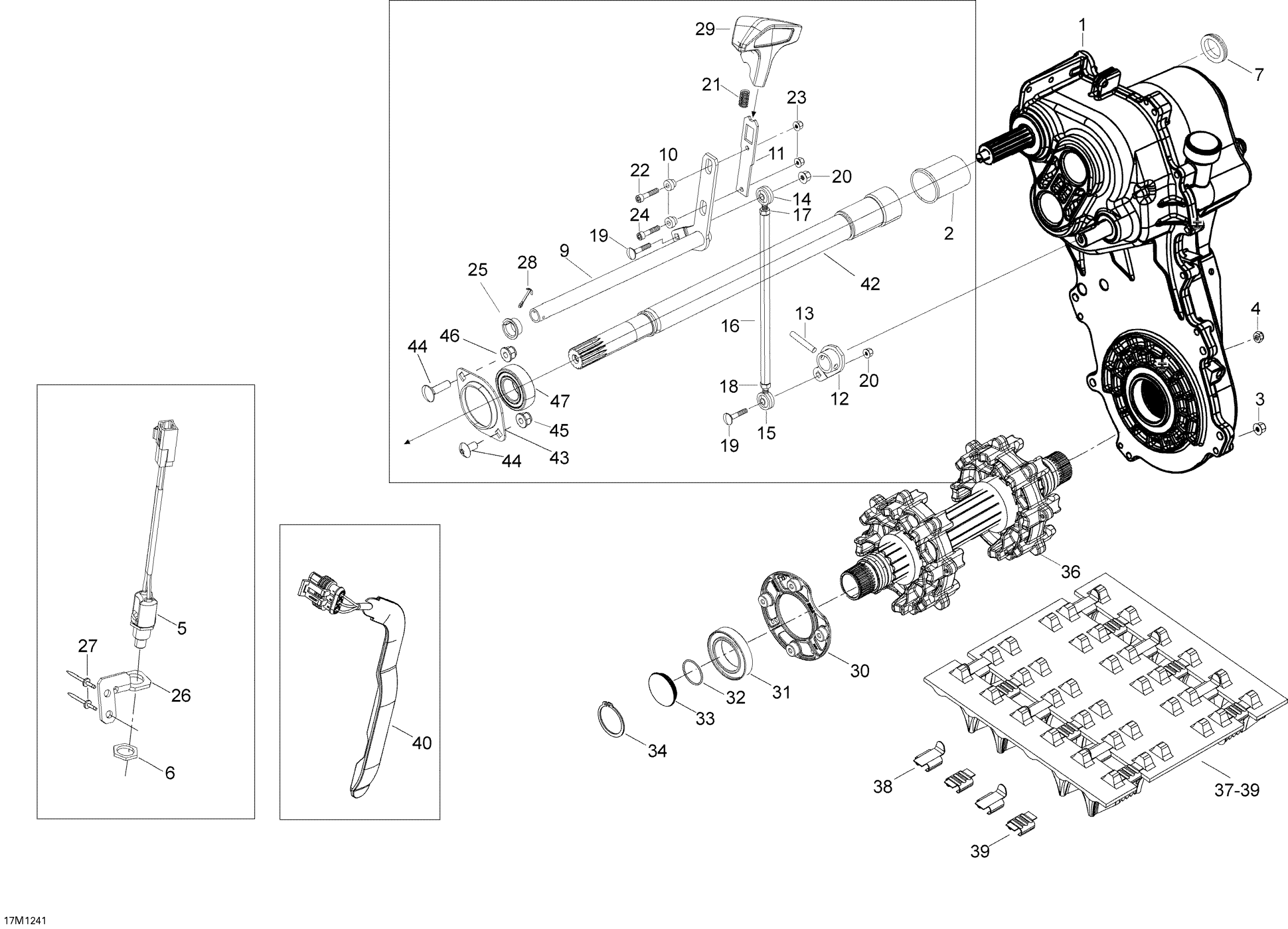

Ski-Doo Skandic WT 550F XU, 2012 05- Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2.00

2

Protective Rubber

504153054

$17.49

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Hex. Elastic Stop Nut M8

232581414

$0.56

5

Switch Ass'y

515176472

$72.99

6

Brass Nut

250000373

$7.51

7

RUBBER PLUG - Call your local BRP dealership

504152818

Unavailable

9

Lever Shifter

504153288

$154.99

10

Sleeve

504152787

$28.49

11

Shifter Arm

504153287

$51.99

12

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

13

Pin

41012

$6.39

14

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

15

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

16

ROD - Call your local BRP dealership

504152836

Unavailable

17

Hex. Nut M6

232061414

$0.53

18

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

19

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

20

Elastic Stop Nut M6

232561414

$0.55

21

Spring

504152882

$38.99

22

Socket Screw M5 X 25

205052544

$1.68

23

Flange Elastic Nut M5

233251434

$2.00

24

Forming Screw M5 x 16

250000676

$1.01

25

Bushing

504152890

$42.49

26

Sensor Bracket

504152902

$17.99

27

Rivet Hucklok

293150163

$2.99

28

Cotter Pin

250400035

$2.11

29

Handle

504152837

$80.99

30

Retaining Ring

504153886

$21.99

31

Ball Bearing

293350059

$30.99

32

O-Ring

293300122

$2.11

33

Magnetic Cap

504152619

$23.49

34

Circlip

504152572

$6.95

36

AXLE-DRIVE ASSY - Call your local BRP dealership

504153106

Unavailable

37

Track | Includes 3200 to 3200b

605613004

$1.00

38

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Rotation Sensor

504152896

$37.99

42

Counter Shaft | Gear Box 2.30

504152963

$248.99

43

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

44

Carriage Bolt M8 X 30

207783044

$2.11

45

Hex. Flange Elastic Nut M8

233281414

$1.47

46

Hex. Flange Elastic Nut M8

233281414

$1.47

47

Ball Bearing

293350074

$38.49
