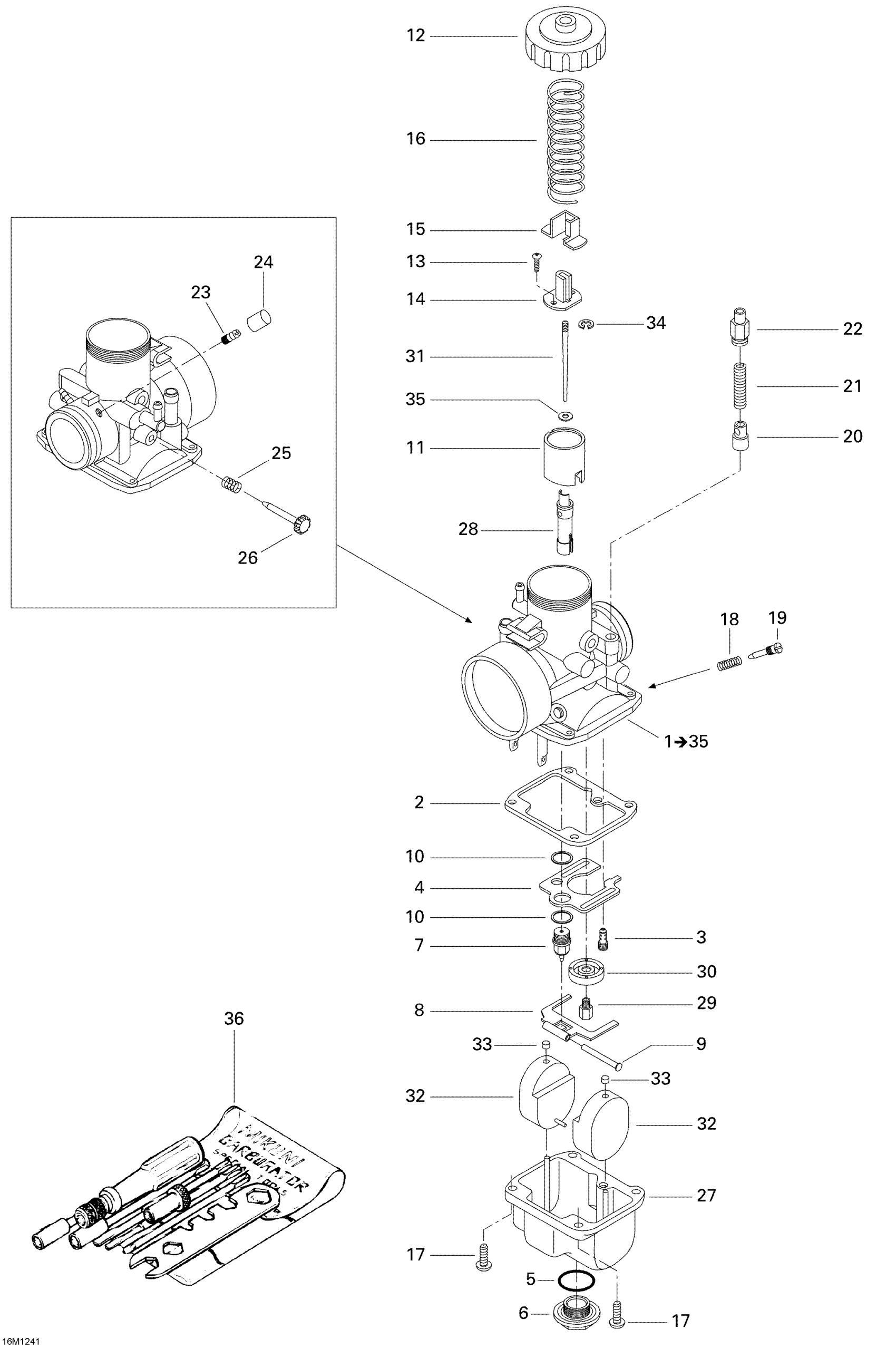

Ski-Doo Skandic WT 550F XU, 2012 02- Carburetor Diagram

Carburetor VM30-219, PTO

403138814

$312.49

Carburetor VM30-218, MAG

403138813

$322.49

Gasket | Includes 1900a to 1900am

404104200

$6.38

Pilot Jet 35

404102700

$5.21

Not Available As Spare Part - Friction Washer

Unavailable

O-Ring

404107300

$9.06

Drain Plug Screw

404107400

$22.99

Needle Valve 1.2

404147500

$42.49

Float Lever

404107600

$22.99

Lever Pin

404103300

$6.27

Seat Washer

404101600

$3.29

Piston Valve 2.5

404128400

$127.49

Cover

404103700

$31.99

Screw With Washer

404121300

$4.14

Not Available As Spare Part - Friction Washer

Unavailable

Cover

404122100

$19.49

Spring

404154800

$23.99

Screw With Lock Washer

404102000

$3.18

Spring

404101800

$4.25

Air Screw

404102300

$14.35

Plunger Ass'y

404162130

$31.99

Plunger Ass'y | MAG Side

404161986

$19.49

Spring

404162131

$16.86

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

Guide Holder

404162132

$34.99

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

Nipple

404153400

$12.16

Cap

404156600

$17.08

Spring

404101700

$4.14

Idle Speed Screw

404109700

$19.49

FLOAT BODY - Call your local BRP dealership

404162133

$67.99

FLOAT BODY - Call your local BRP dealership | MAG Side

404162128

Unavailable

Needle Jet

404162124

$41.49

Main Jet MJ 200

404112300

$5.21

Main Jet 190

404119000

$5.21

Not Available As Spare Part - Friction Washer

Unavailable

Needle, J8-6BFY46

404162113

$31.99

Not Available As Spare Part - Friction Washer

Unavailable

Cap

404105800

$6.38

E-Ring

404152400

$7.27

Packing

404117000

$3.29

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
