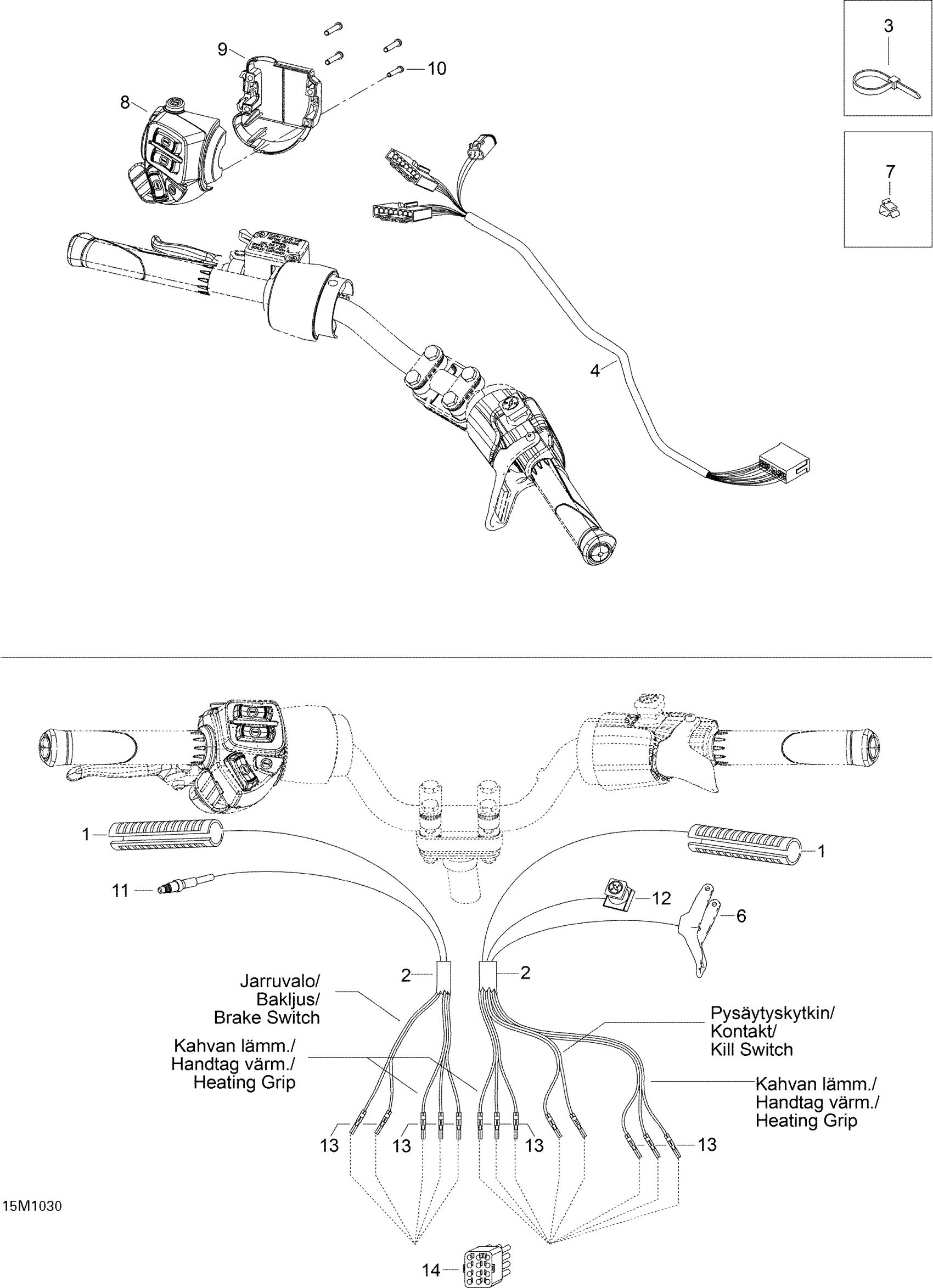

Ski-Doo Skandic WT 550F, 2010 Steering Wiring Harness Diagram

#

Description

Price

1

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Tie Rap 290 Mm

M27100

$0.97

4

STEERING HARNESS - Call your local BRP dealership

605353266

Unavailable

5

MAIN HARNESS - Call your local BRP dealership

605354843

Unavailable

6

Handle Ass'y

512060214

$114.15

7

Clip

414227300

$1.40

8

Switch Housing

515177028

$129.07

9

Switch Housing Plate

515175926

$17.13

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Microswitch

507032366

$101.46

12

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

13

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

14

Male Connector Housing

M42617

Unavailable
