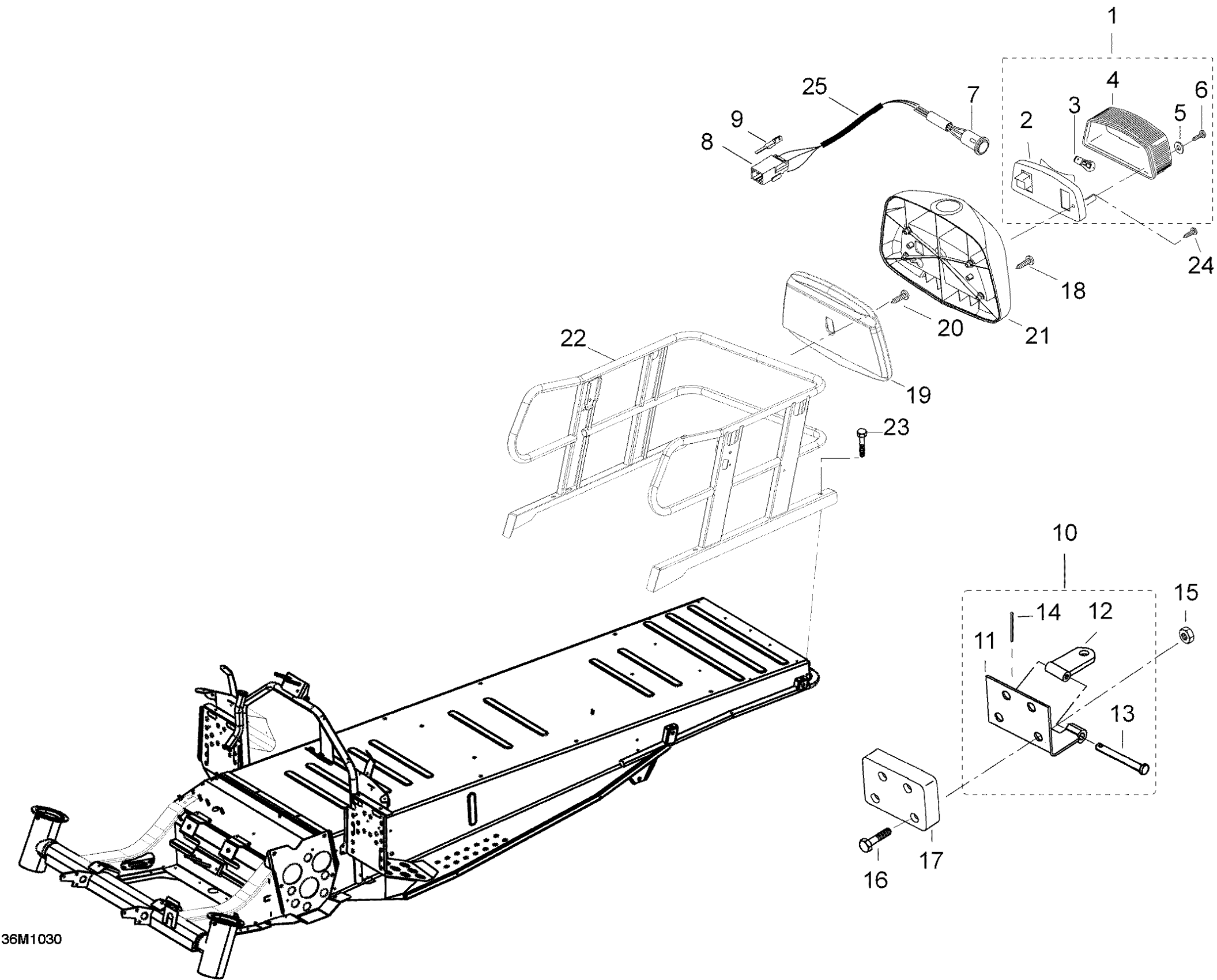

Ski-Doo Skandic WT 550F, 2010 09- Luggage Rack Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

3

Bulb

520000758

$9.10

4

Lens

414513700

$28.99

5

Washer - Call your local BRP dealership

414516400

Unavailable

6

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

7

Adapter

515175852

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Connector AMP 926882-3 - Call your local BRP dealership

605642629

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$82.99

12

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

13

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

14

Cotter Pin

41031

$7.65

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

Hex. Screw M8 X 50

207085044

$1.48

17

SPACER - Call your local BRP dealership

605351510

Unavailable

18

Screw 4.8 X 25

M40206

Unavailable

19

BASE - Call your local BRP dealership

605251963

Unavailable

20

Screw

M40322

Unavailable

21

MOLD TAIL LAMP - Call your local BRP dealership

605251392

Unavailable

22

LUGGAGE RACK - Call your local BRP dealership

605156016

Unavailable

23

Screw

M40316

Unavailable

24

Screw 4.8 X 45

M40207

Unavailable

25

Taillight Harness

605354685

Unavailable
