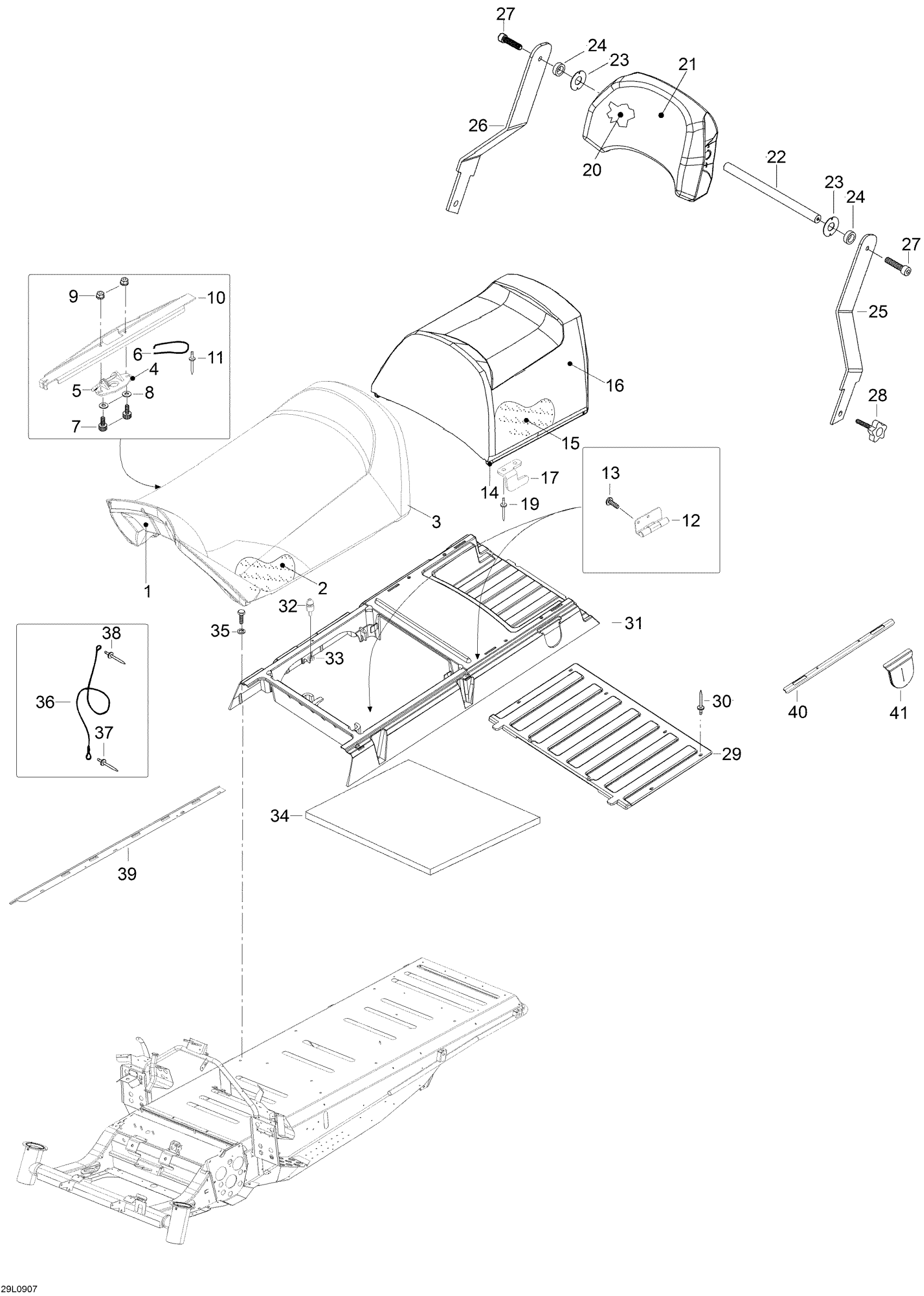

Ski-Doo Skandic WT 550F, 2009 Seat Diagram

#

Description
Price

1

SEAT BASE, FRONT - Call your local BRP dealership

605251388

Unavailable

2

Seat Foam

605255689

$459.99

3

SEAT FRONT COVER, SUV - Call your local BRP dealership

605255216

Unavailable

4

Latch Ass'y

269700109

$23.10

5

Latch Ass'y

269700109

$23.10

6

Latch Spring

269700017

$8.34

7

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

M40276

Unavailable

8

Flat Washer 6 mm

234061410

$1.19

9

Elastic Stop Nut M6

232561414

$1.78

10

SUPPORT PLATE - Call your local BRP dealership

605352483

Unavailable

11

Rivet

M36088

Unavailable

12

Hinge

605351798

$38.78

13

Screw 4,2 X 16

M40890

Unavailable

14

SEAT BASE, REAR - Call your local BRP dealership

605251390

Unavailable

15

REAR SEAT FOAM - Call your local BRP dealership

605255691

Unavailable

16

SEAT COVER, SUV - Call your local BRP dealership

605255218

$234.99

17

LH HOOK - Call your local BRP dealership

605351808

Unavailable

18

RH HOOK - Call your local BRP dealership

605352007

Unavailable

19

Rivet This part replaces M36087.

36087

$0.99

20

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

21

BACKREST COVER - Call your local BRP dealership

605355498

Unavailable

22

BACKREST AXLE - Call your local BRP dealership

605355357

Unavailable

23

WASHER - Call your local BRP dealership

605355358

Unavailable

24

Rubber Shim

510004378

$8.36

25

LH ARM - Call your local BRP dealership

605355499

Unavailable

26

RH ARM - Call your local BRP dealership

605355500

Unavailable

27

SCREW M10X20 - Call your local BRP dealership

605640010

Unavailable

28

Handle M8 X 35 | Model-T3

510003533

$41.76

29

FRAME COVER - Call your local BRP dealership

605255587

Unavailable

30

Black, Rivet

M36036

$1.60

31

SEAT BASE - Call your local BRP dealership

605155585

Unavailable

32

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

33

Elastic Stop Nut M6

232561414

$1.78

34

FOAM - Call your local BRP dealership

605355635

Unavailable

35

Lock Washer M6, Black

234161471

$0.51

36

Seat Retainer Cable

293750070

$9.93

37

Black Rivet

36037

$1.43

38

Rivet This part replaces M36009.

36009

$1.03

39

RH SEAT BRACKET - Call your local BRP dealership

605255762

Unavailable

40

REAR SEAT SUPPORT - Call your local BRP dealership

605355816

Unavailable

41

CAP - Call your local BRP dealership

605355589

Unavailable
