Partiron

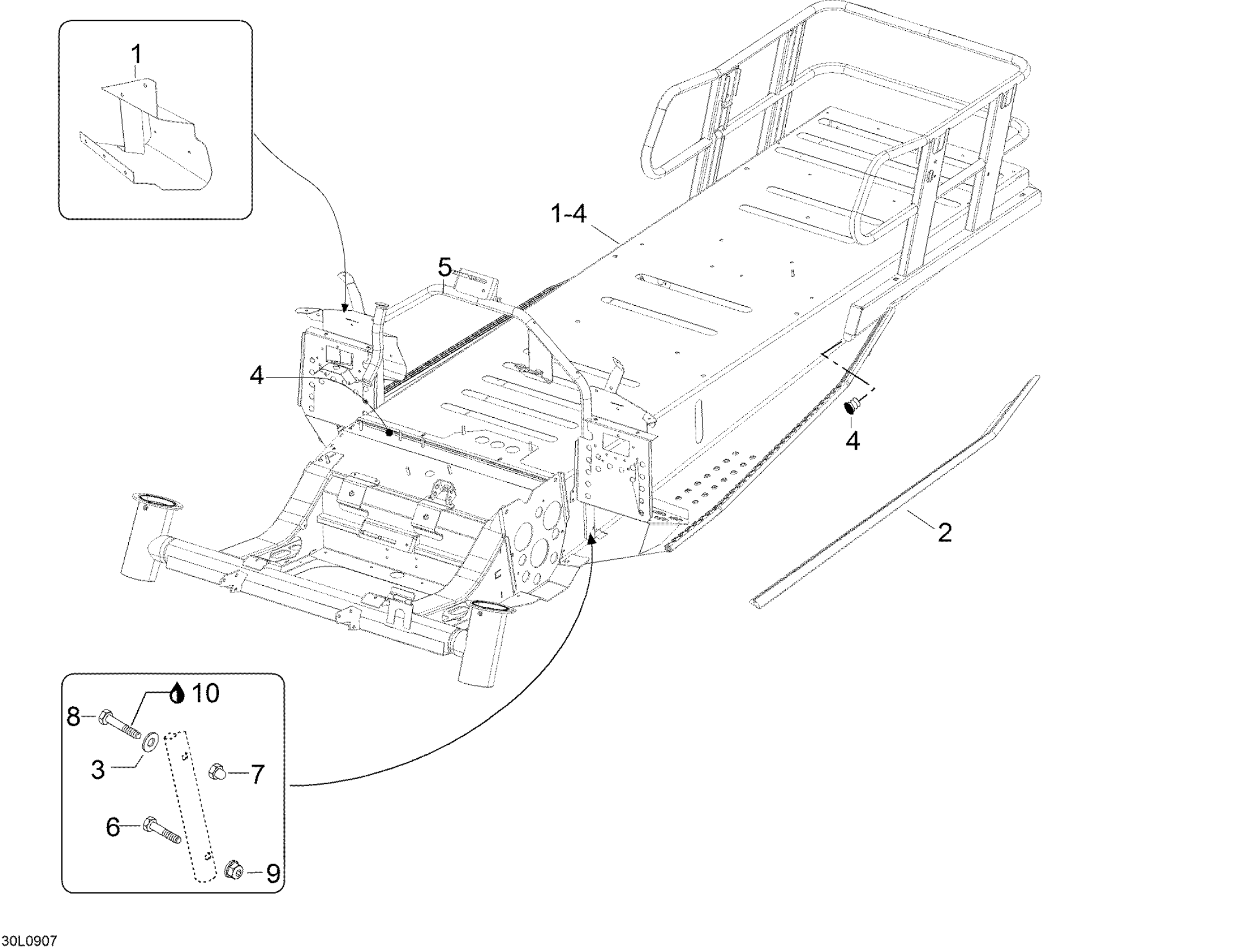

Ski-Doo Skandic WT 550F, 2009 Frame Diagram

#

Description
Price

—

Frame Ass'y | Includes 1 to 10

605154831

Unavailable

1

RH Toe Rest

605350839

Unavailable

1

LH TOE REST - Call your local BRP dealership

605350840

Unavailable

2

LH REINFORCEMENT - Call your local BRP dealership

605255625

Unavailable

2

RH REINFORCEMENT - Call your local BRP dealership

605255626

Unavailable

3

Flat Washer 6 mm

234061410

$1.19

4

Plug

M28210

Unavailable

5

WELDED STEERING SUPPORT - Call your local BRP dealership

605155568

Unavailable

6

Hex. Screw

M40003

Unavailable

7

Hex. Nut M6

232061414

$0.51

8

Hex. Screw M6 X 40

207064044

$1.43

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

10

Loctite 243, 10 ml

293800060

$21.49
