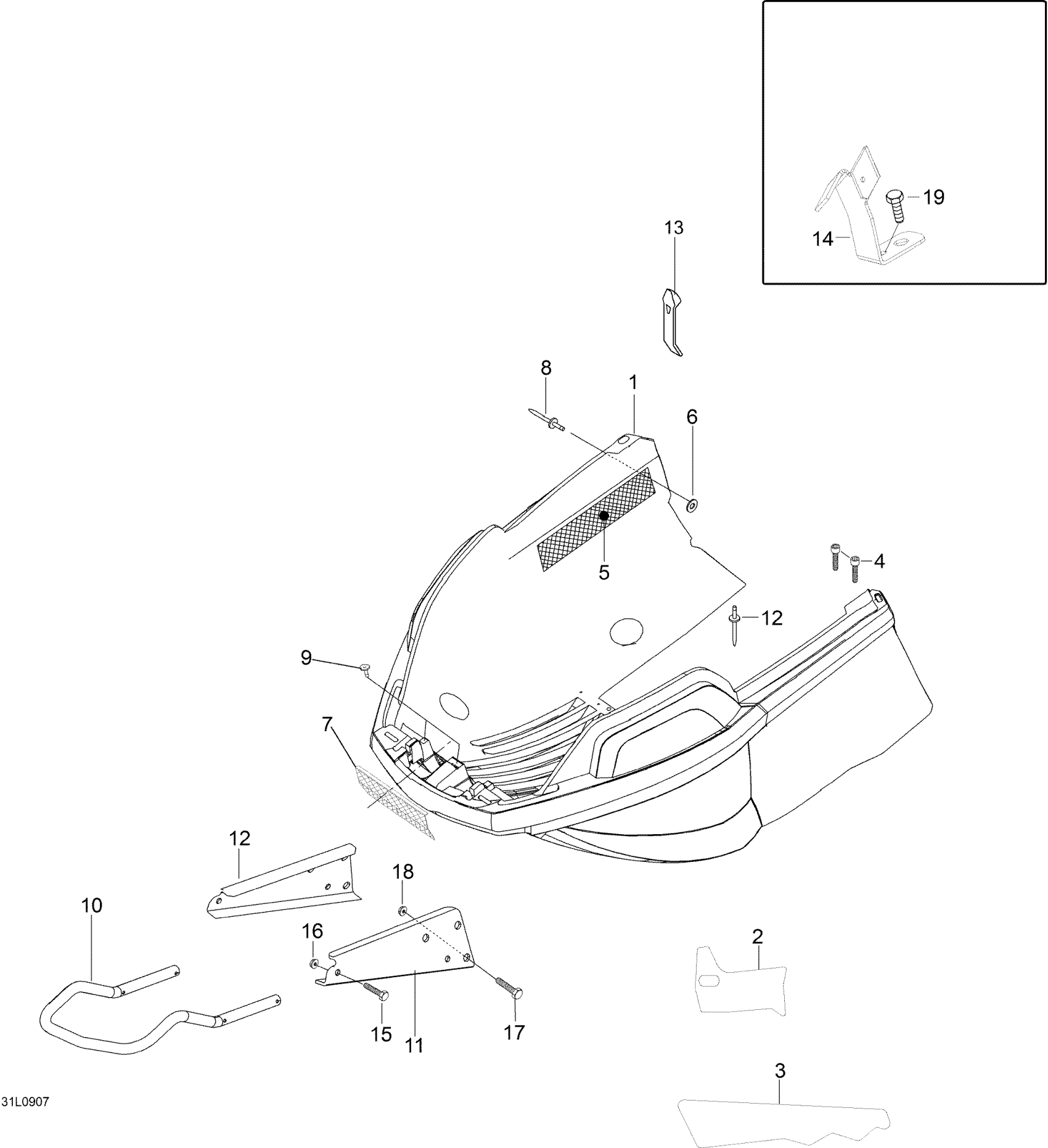

Ski-Doo Skandic WT 550F, 2009 09- Bottom Pan Diagram

#

Description
Price

1

Bottom Pan Ass'y

605255777

Unavailable

2

BOTTOM PAN ISOLATION RH - Call your local BRP dealership

605255744

Unavailable

2

Isolation bottompan L.H - Call your local BRP dealership

605255746

Unavailable

3

BOTTOM PAN ISOLATION RH - Call your local BRP dealership

605255745

Unavailable

4

SCREW - Call your local BRP dealership

M40332

Unavailable

5

LH SIDE GRILL - Call your local BRP dealership

605354969

Unavailable

6

Washer 5,3 mm

20008

$0.74

7

FRONT GRILL - Call your local BRP dealership

605255513

Unavailable

8

Rivet This part replaces M36009.

36009

$1.15

9

Screw 4,2 X 13

M40847

Unavailable

10

BUMPER - Call your local BRP dealership

605255112

Unavailable

11

LH BUMPER PLATE - Call your local BRP dealership

605355113

Unavailable

12

RH BUMPER PLATE - Call your local BRP dealership

605355114

Unavailable

13

Hood Latch

517302152

$18.49

14

LH BRACKET - Call your local BRP dealership

605354709

Unavailable

14

RH BRACKET - Call your local BRP dealership

605354710

Unavailable

15

Hex. Screw M6 X 40

207064044

$1.48

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Hex. Screw M8 X 20

207182044

$0.74

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

SCREW-HEX.CAP M6X10 - Call your local BRP dealership

M40401

Unavailable
