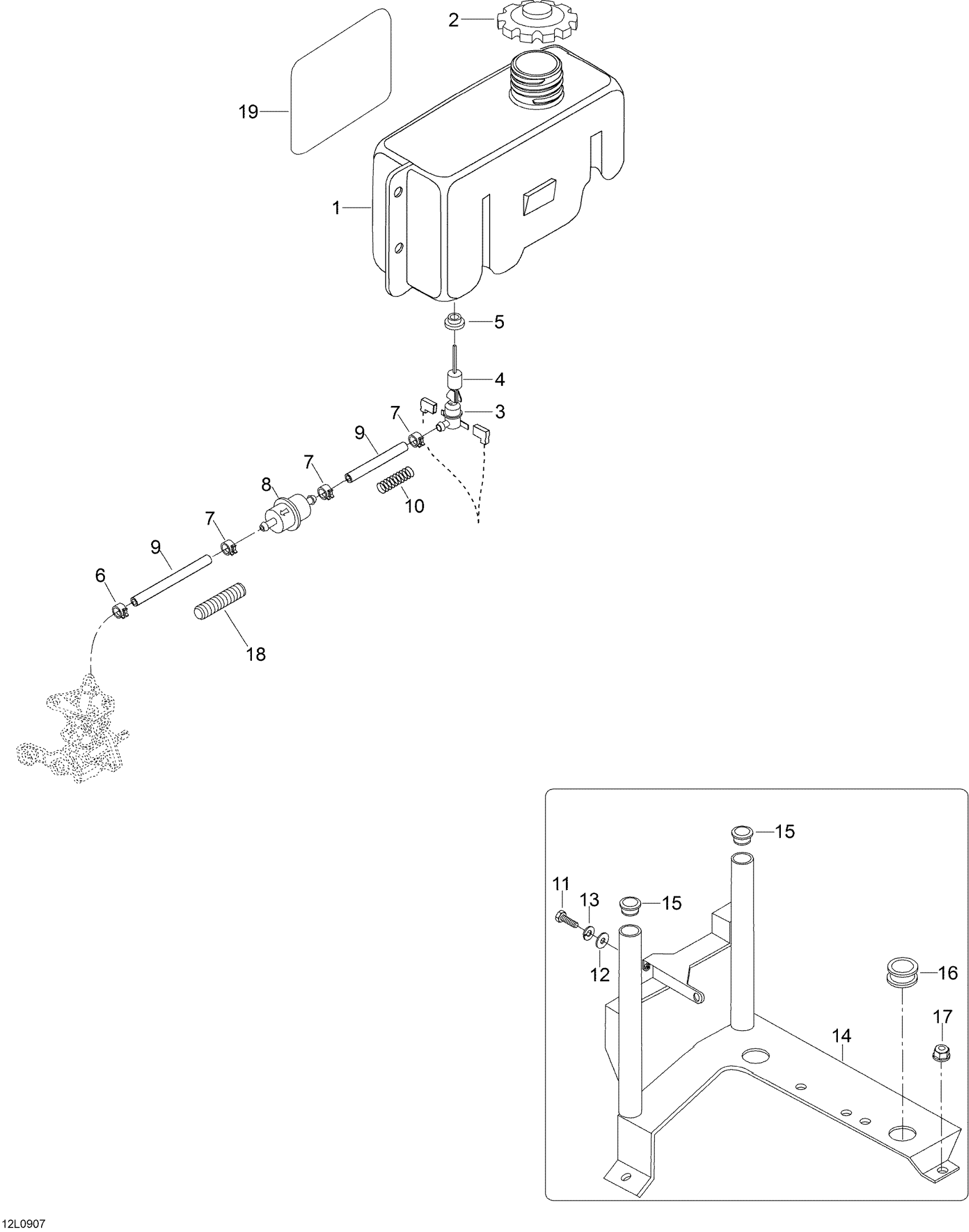

Ski-Doo Skandic WT 550F, 2009 02- Oil System Diagram

#

Description
Price

1

Oil Tank

M5142700

Unavailable

2

CAP - Call your local BRP dealership

519000044

Unavailable

3

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Insulating Ring

570023000

$5.61

6

Spring Clamp

414420700

$0.72

7

Spring Clamp

414415200

$0.88

8

Filter

414536500

$4.02

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

10

SPRING - Call your local BRP dealership

519000065

Unavailable

11

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

12

Flat Washer 6 mm

234062410

$0.77

13

Lock Washer M6, Black

234161471

$0.53

14

Oil Tank Support

605355528

Unavailable

15

PLUG - Call your local BRP dealership

M28136

Unavailable

16

Passe-Fils *Grommet

M5446766

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

HOUSING - Call your local BRP dealership

M28015

Unavailable

19

Reflecting Sheet

M5443578

Unavailable
