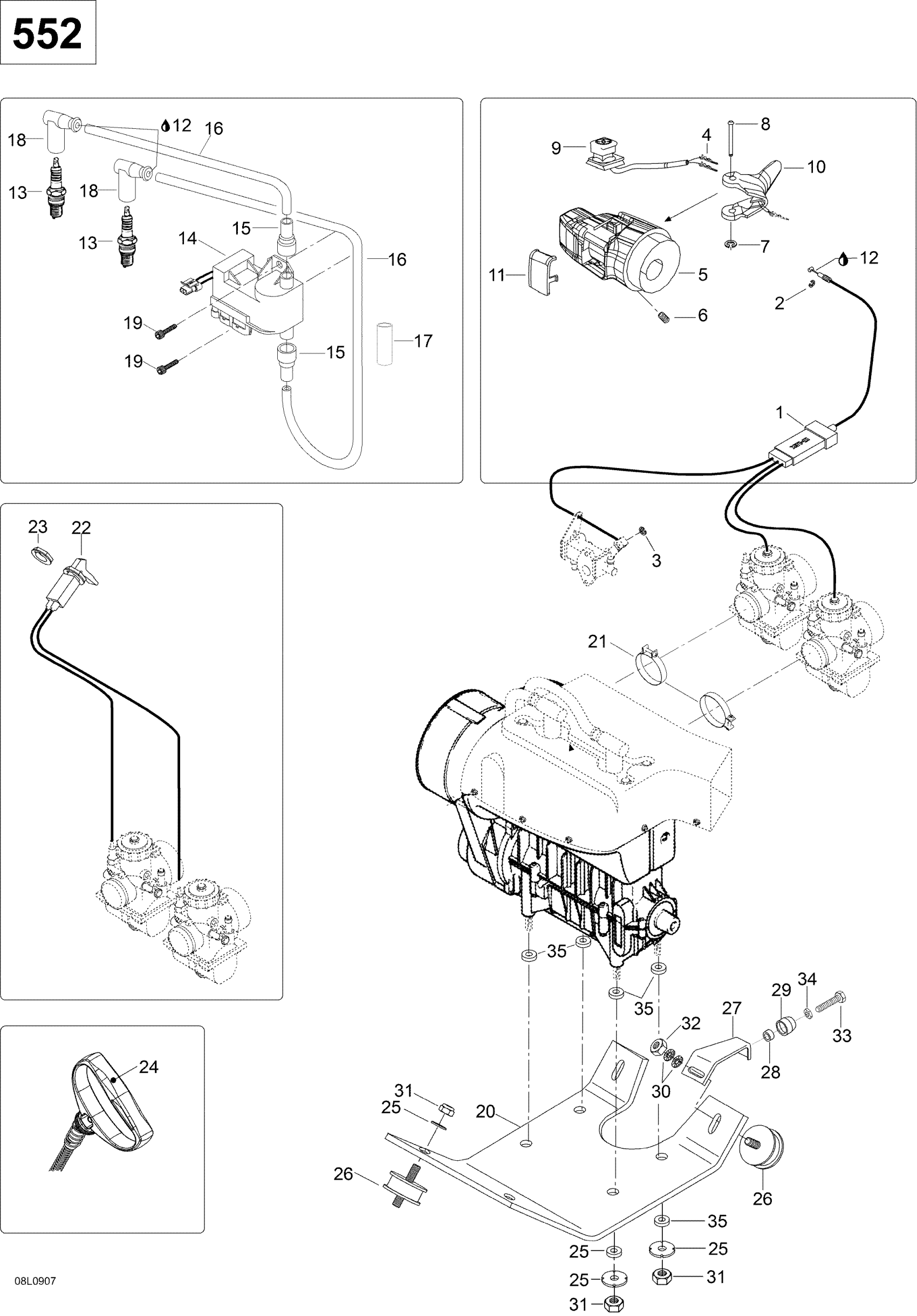

Ski-Doo Skandic WT 550F, 2009 01- Engine And Engine Support Diagram

#

Description
Price

1

Throttle Cable

605249117

$124.99

2

Circlip

M31038

Unavailable

3

Circlip

414753500

$0.71

4

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

5

THROTTLE HOUSING - Call your local BRP dealership

512059489

Unavailable

6

Socket Set Screw M8 X 10

414440800

$4.12

7

Circlip | Model-RS

414439000

$4.23

8

Lever Pin

414438700

$11.64

9

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

10

Handle Ass'y

512060214

$124.99

11

Switch Cover

572100901

$14.83

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

14

Calibration Module | Includes 14 to 16

512059626

$399.99

15

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

16

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

17

Female Housing, 2 Circuits

409209500

$15.27

18

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

19

Screw

M40322

Unavailable

20

ENGINE SUPPORT - Call your local BRP dealership

605249349

Unavailable

21

COLLAR - Call your local BRP dealership

414532700

Unavailable

22

Choke This part replaces M535482.

535482

$73.99

23

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

24

Starter Grip

572084400

$14.83

25

Lock Washer

512056700

$3.17

26

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

27

Support

605352447

Unavailable

28

Rubber Washer

M2846014

Unavailable

29

SLEEVE - Call your local BRP dealership

605449240

Unavailable

30

Lock Washer D10

20068

$2.00

31

Elastic Locking Nut M10 X 1.5

233601416

$1.69

32

Hex. Nut M10 X 1.5

232006414

$1.37

33

Hex. Screw M8 X 25

M40121

Unavailable

34

NUT - Call your local BRP dealership

M33003

Unavailable

35

SLEEVE - Call your local BRP dealership

M5446347

Unavailable
