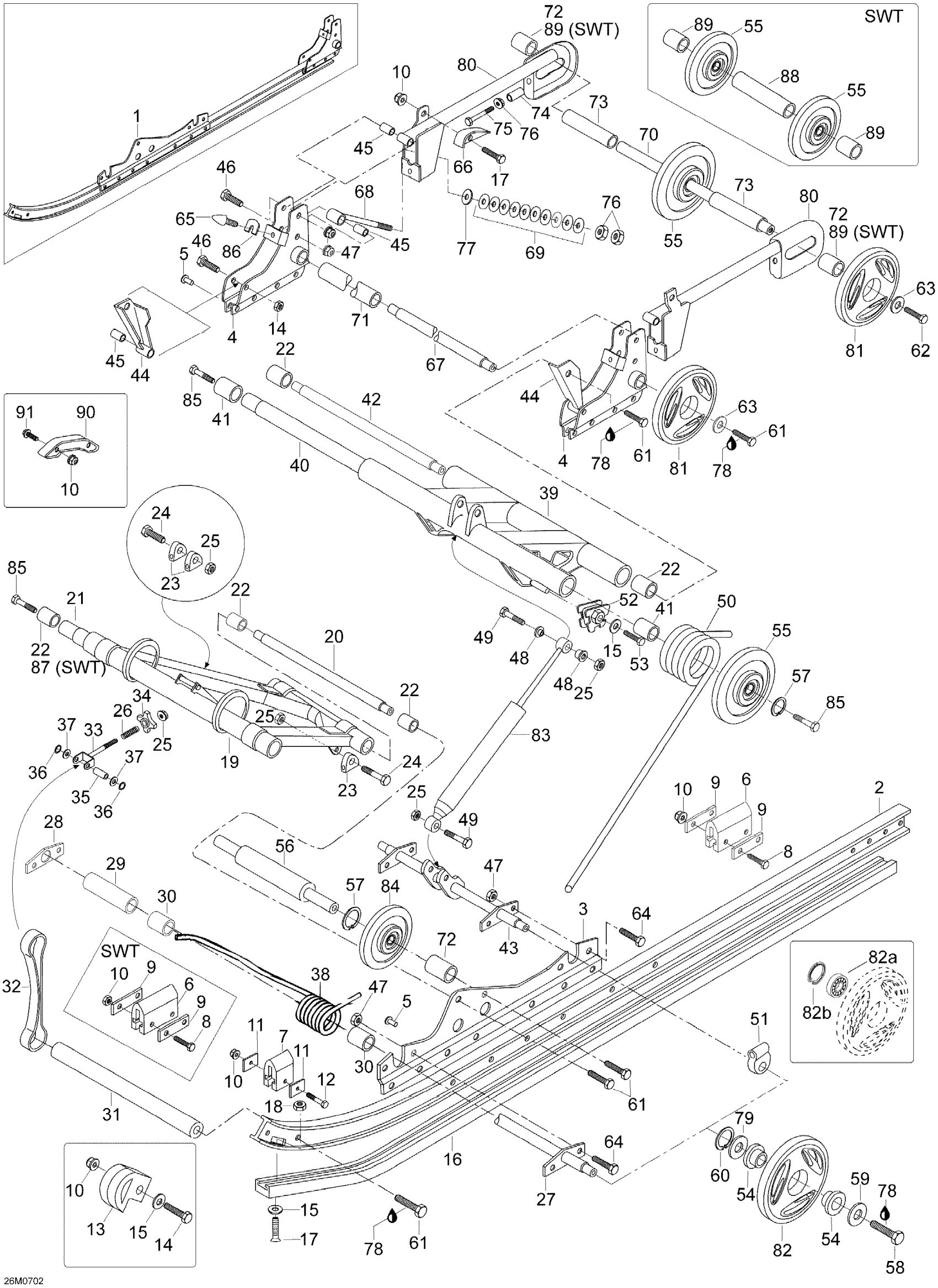

Ski-Doo Skandic WT 550F, 2007 08- Rear Suspension WT 550 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

RUNNER - Call your local BRP dealership This part replaces M5142864.

5142864

$239.99

3

Support Plate Rh This part replaces M5344811.

5344811

$53.99

3

Support Plate Lh This part replaces M5344810.

5344810

$53.99

4

Support For Rearaxle Rh This part replaces M539673.

539673

$88.99

4

Support For Rearaxle Lh This part replaces M539672.

539672

$88.99

5

RIVET - Call your local BRP dealership

M544212

Unavailable

6

RUBBER STOPPER - Call your local BRP dealership

570023100

$16.99

7

STOPPER-RUBBER - Call your local BRP dealership This part replaces M5442328.

5442328

$9.79

8

Hex. Screw M6 X 40

207064044

$1.48

9

Washer

M548387

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Plate

M548470

Unavailable

12

Hex. Screw M6 X 30

207063044

$1.26

13

Runner Protector

605348954

$19.49

14

Hex. Screw M6 X 25

207162544

$1.15

15

Flat Washer 6 mm

234061410

$1.36

16

Runner Shoe

M549582

$34.99

17

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

18

Elastic Stop Nut M6

232561414

$0.55

19

Front Arm Welded

M5245898

Unavailable

20

Shaft This part replaces M549695.

549695

$39.99

21

Bogie Shaft This part replaces M542793.

542793

$45.99

22

Shaft Sleeve This part replaces M542770.

542770

$19.99

23

Spring Roller This part replaces M548799.

548799

$13.49

24

Hex. Screw M10 X 40

207004044

$4.76

25

Elastic Locking Nut M10 X 1.5

233601416

$1.69

26

SPRING - Call your local BRP dealership

414460600

Unavailable

27

Axle

M5345453

Unavailable

28

Plate Support

M548469

Unavailable

29

Sleeve

M5440313

Unavailable

30

Sleeve

M548841

Unavailable

31

Cross Shaft

M549718

Unavailable

32

STOPPER STRAP - Call your local BRP dealership This part replaces M5442604.

5442604

Unavailable

33

Bolt-Eye Adjuster

M5441643

Unavailable

34

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

35

Pin

M5441645

Unavailable

36

Circlip

M41035

Unavailable

37

Flat Washer 10 mm

234001410

$1.26

38

Spring L.H. This part replaces M5241177.

5241177

$62.49

38

Spring R.H. This part replaces M5241178.

5241178

$54.99

39

Reararm - Call your local BRP dealership This part replaces M5343493.

5343493

Unavailable

40

Shaft This part replaces M5343492.

5343492

$80.49

41

Bearing This part replaces M31023.

31023

$14.22

42

Swing shaft - Call your local BRP dealership This part replaces M549656.

549656

Unavailable

43

SHAFT - Call your local BRP dealership This part replaces M5345454.

5345454

Unavailable

44

Crank Arm R.H. This part replaces M5440350.

5440350

$88.99

44

Crank Arm Lh This part replaces M5440349.

5440349

$76.99

45

Spacer This part replaces M545758.

545758

$27.99

46

Hex. Screw M8 X 45

207084544

$1.48

47

Hex. Elastic Stop Nut M8

232581414

$0.56

48

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

$14.99

49

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

50

Spring L.H. This part replaces M538805.

538805

$72.99

50

Spring R.H. This part replaces M538806.

538806

$58.49

51

Spring Support

M548804

Unavailable

52

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

52

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

53

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

54

Cushion

503189534

$4.76

55

Thin Wheel 165

503189478

$51.99

56

Support Shaft

M549680

Unavailable

57

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

$4.59

58

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

59

Washer

503183100

$3.17

60

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.44

61

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.17

62

Hex. Screw With Nylon Patch

M40050

Unavailable

63

Washer

503183300

$5.82

64

Hex. Screw M8 x 16

207181644

$1.15

65

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

66

Protector

M548262

Unavailable

67

Axle This part replaces M541816.

541816

$60.49

68

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

$58.99

69

Cup Spring This part replaces M25004.

25004

$3.69

70

SHAFT - Call your local BRP dealership

M5343284

Unavailable

71

Sleeve

M541815

Unavailable

72

Sleeve

M546577

Unavailable

73

SLEEVE - Call your local BRP dealership

M5443285

Unavailable

74

Spacer

605633002

$1.48

75

SCREW - Call your local BRP dealership

M40239

Unavailable

76

Hex. Nut M10 X 1.5

232006414

$1.37

77

Flat Washer 10 mm This part replaces M20011.

234002410

$1.48

78

Loctite 243, 10 ml

293800060

$21.49

79

SHIM - Call your local BRP dealership

M31091

Unavailable

80

EXTENSION TUBE RH - Call your local BRP dealership

605251784

Unavailable

80

EXTENSION TUBE LH - Call your local BRP dealership

605251783

Unavailable

81

Wheel 165 mm Yellow

503190817

$51.99

81a

Ball Bearing

293350115

$12.11

82

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

82a

Not Available As Spare Parts

XXX

Unavailable

82b

Not Available As Spare Parts

XXX

Unavailable

83

SHOCK - Call your local BRP dealership

503189997

$234.99

84

Wheel 139 mm Ass'y

503190798

$33.99

85

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

Unavailable

86

Adjustment Plate This part replaces M5440645.

5440645

$17.99

87

Not Available As Spare Parts

XXX

Unavailable

88

Not Available As Spare Parts

XXX

Unavailable

89

Not Available As Spare Parts

XXX

Unavailable

90

Not Available As Spare Parts

XXX

Unavailable

91

Not Available As Spare Parts

XXX

Unavailable
